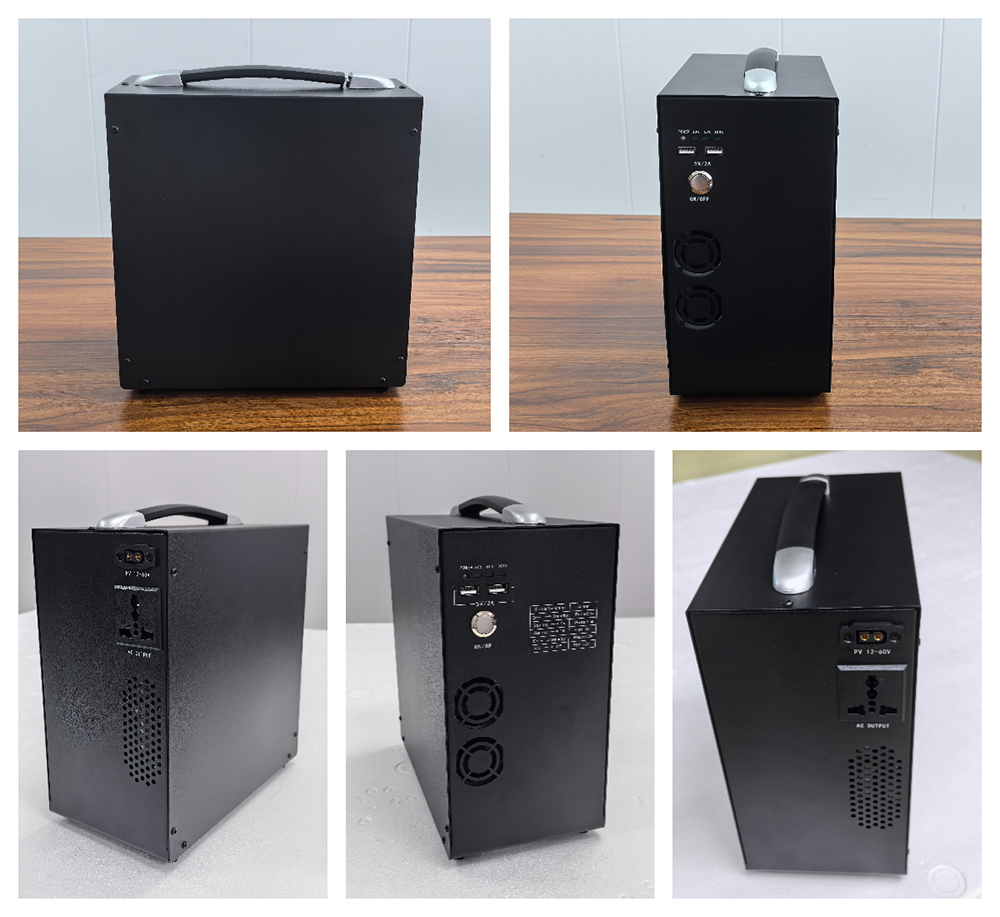

Mini portable power station lifepo4 battery is a mobile energy solution that adopts high safety lithium iron phosphate battery technology, integrating efficient BMS intelligent management system and multiple output interfaces.
The mini portable power station lifepo4 battery adopts a lightweight structural design, with a weight reduction of 60% compared to traditional lead-acid power sources, and a capacity coverage of 500Wh-5000Wh. It uses solar fast charging to truly achieve a convenient experience of "enjoying electricity anytime, anywhere".
| Model | ES-Mini 1000 |
| Photovoltaic | |
| PV Input Interface Type and Circuits | XT60 |
| Max.PV Input Voltage | 60V |
| MPPT Voltage Range | 11~55V |
| Max.MPPT Power | 400w |
| USB Output | |
| USB Type | Type A |
| USB Port | 2 |
| Power | 5V/2A |
| AC Output | |
| AC Output Interfaces | 1 |
| Wiring Method | L-N |
| AC Output voltage | 110V/220V |
| Reted AC Output Power | 200w |
| Battery | |
| Battery Capacity | 1004.8Wh |
| Battery Type | LiFePO4 |
| Battery Rated Voltage | 3.2V |
| Cycle Life | 10000 Cycles (70%SOC@25℃) |
| Parameter | |
| Protection Features | OPP 、OTP 、OVP 、SCP etc. |
| Protection Ratin | IP20 |
| Cooling Method | Forced Air Cooling |
| Dimensions(Depth*Height*Width) | 235*255*128mm |
| Weight | 8.6kg |
| Certification | CE 、UN38.3 、MSDS |
| ES-400M10 | ||
| Electrical Characteristics | STC | NOCT |
| Max. Power (Pmax) | 400W | 302W |
| Open Circuit Voltage (Voc) | 37.07V | 34.88 |
| Short Circuit Current (Isc) | 13.79A | 11.03 |
| Voltage at Pmax (Vmp) | 31.01V | 29.27 |
| Current at Pmax (Imp) | 12.90A | 10.32 |
| Module Efficiency | 20.50% | / |
| Power Tolerance(W) | (0, +4.99W) | |
| Maximum System Voltage(V) | 1500Vdc (IEC / UL) | |
| Maximum Series Fuse Rating (A) | 30A | |
• All-in-One Portability: 8.6kg compact, easy to carry outdoors.
• High-Efficiency Harvest: 400W bifacial panel, 20.5% efficiency.
• Long-Lasting Reliability: 1004.8Wh LiFePO4, 10,000+ cycles.
• Ultimate safety: This mini portable power station lifepo4 battery uses lithium iron phosphate battery cells with strong thermal stability, equipped with intelligent temperature control system and overload protection function
• Environmental protection and energy conservation: low working noise, zero emission operation, solar charging, can achieve truly green power supply
• Outdoor life: camping power supply, outdoor photography, RV travel and other leisure and entertainment scenes;
• Emergency backup power: household emergency power supply, disaster rescue, medical equipment backup power supply;
• Mobile office: commercial application scenarios such as construction sites and mobile booths;
• Special requirements: power supply for drone base stations, film and television shooting, outdoor live streaming and other professional fields
