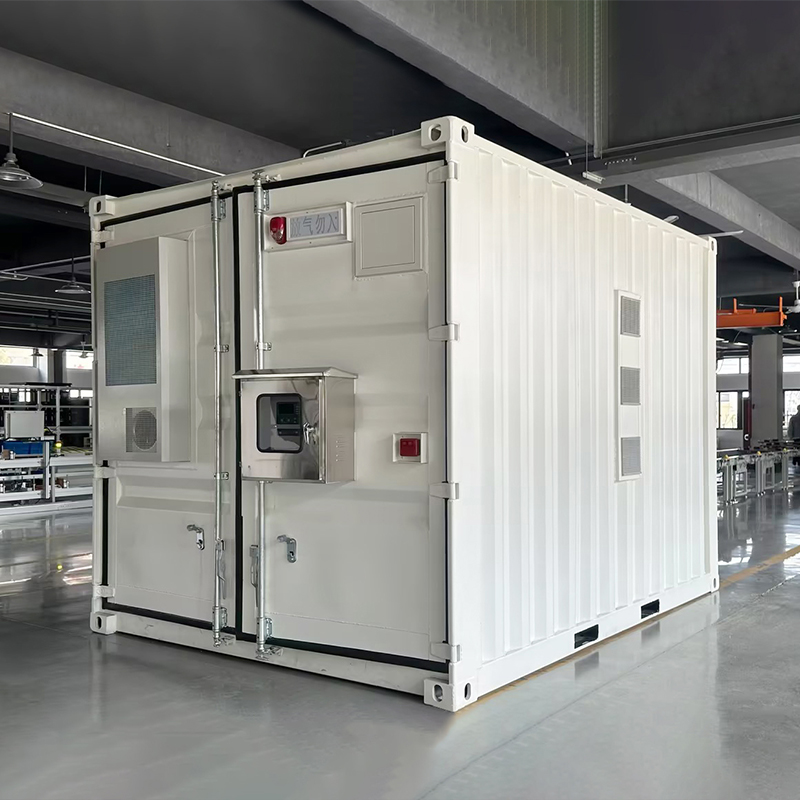

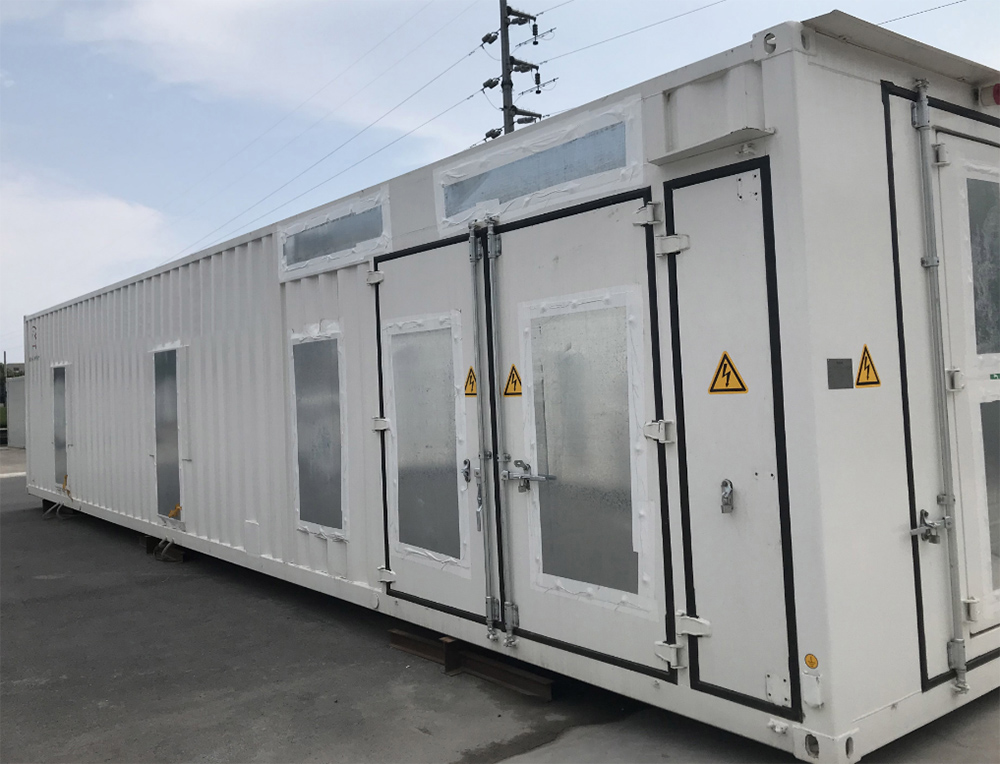

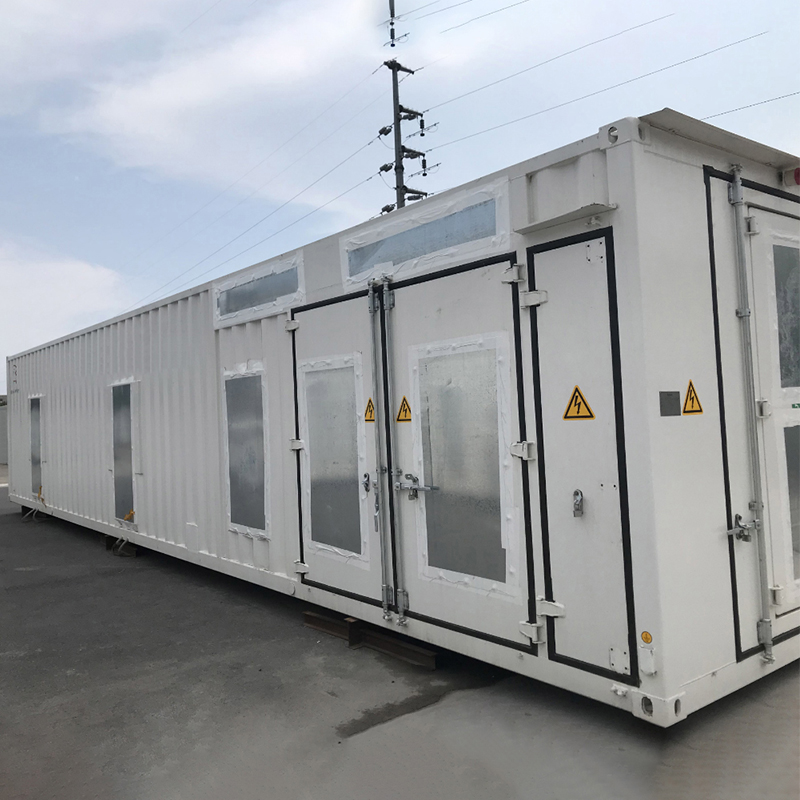

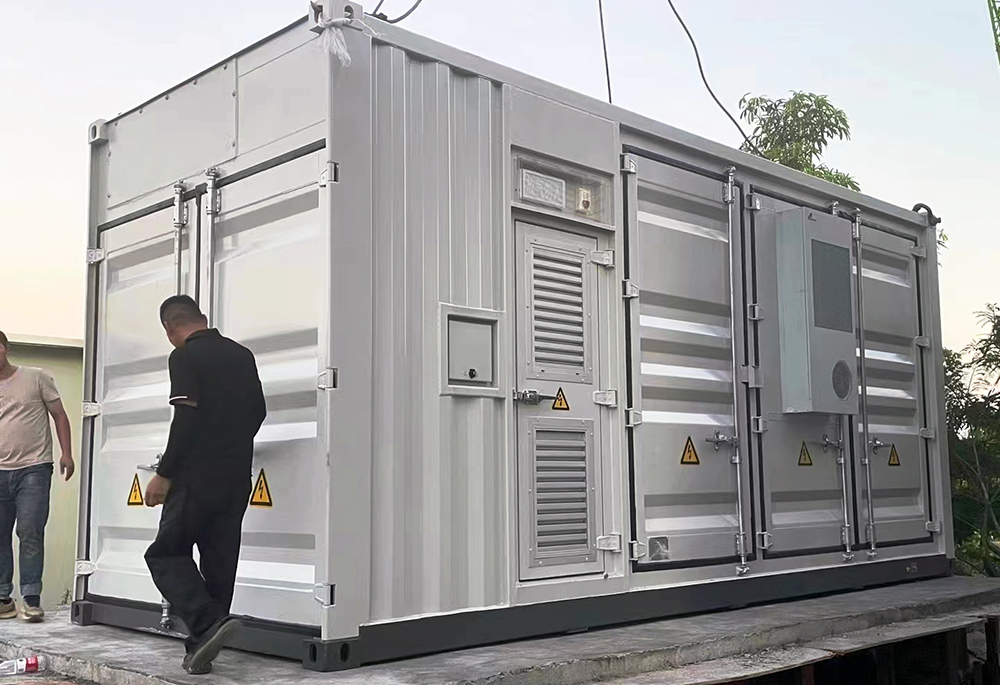

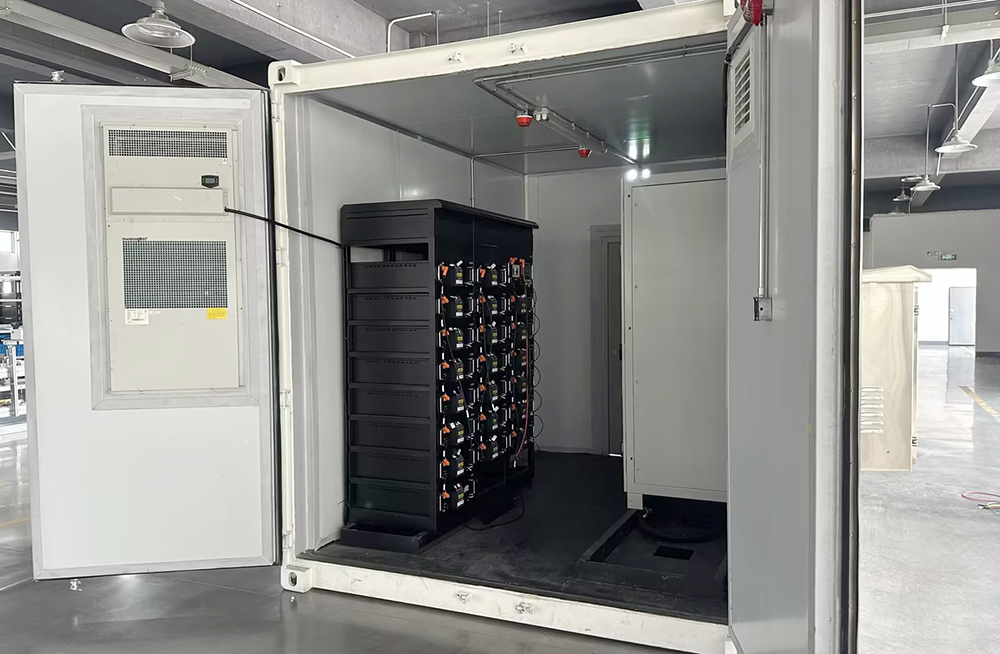

The container energy storage system includes:BESS, bidirectional power conversion system (PCS), DC conversion system (PDS), microgrid switching system (STS), energy management system (EMS), auxiliary power distribution system, air conditioning system, and fire protection.
| Model | 10ft | 20ft | 40ft |
| Output voltage (V) | 380/400±15% | ||
| Grid frequency (Hz) | 50/60 (±2.5) | ||
| Output power (kW) | 50~100 | 50~500 | 250~630 |
| Battery capacity (kWh) | 50~400 | 200~1500 | 800~3000 |
| Battery Type | Lithium iron phosphate battery | ||
| Dimensions (D*W*H) (mm) | Inner: 2831*2352*2385 | Inner: 2352*5898*2385 | Inner: 2352*12032*2385 |
| Outer: 2438*2991*2591 | Outer: 2438*6058*2591 | Outer: 2438*12192*2591 | |
| Protection level | IP54 | ||
| Humidity range (%RH) | 0~95 | ||
| Altitude (m) | 3000 | ||
| Operating temperature (℃) | -20~50 | ||
| Battery voltage range (V) | 250~850 | ||
| Maximum DC current (A) | 200 | 750 | 1500 |
| Connection method | 3P4W | ||
| Power factor | -1~1 | ||
| Communication method | RS485, CAN, Ethernet | ||
| Isolation method | Power frequency isolation | ||
| Note: * The above information is for reference only. * Containerized energy storage is a highly customized product and will be configured based on the customer's specific needs. | |||
• The Container energy storage system supports on-grid and off-grid operation mode, seamless switching, and supports black start;

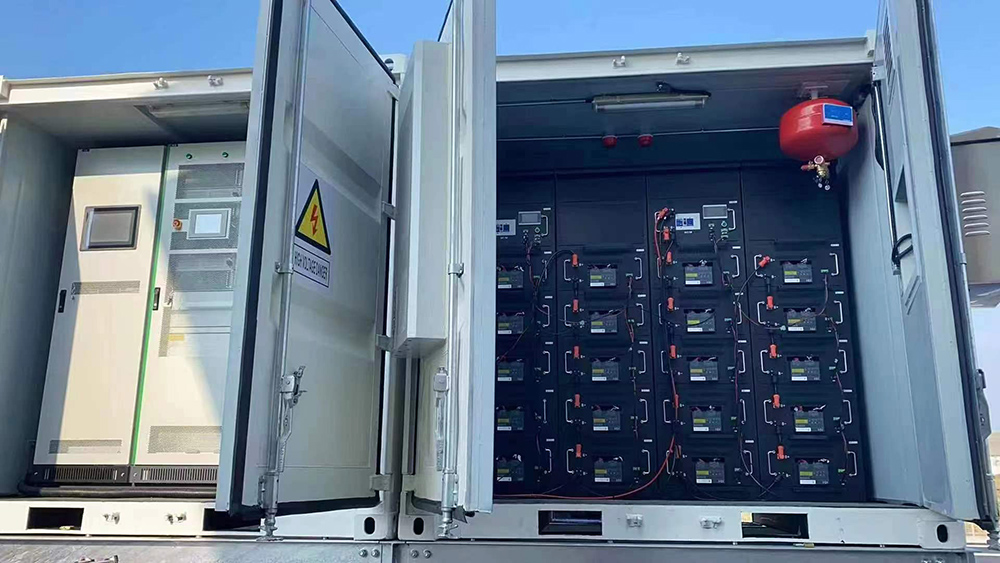

• Container energy storage system also has a comprehensive gas fire extinguishing system and automatic fire monitoring and alarm system, sound and light alarm and fault transmission;

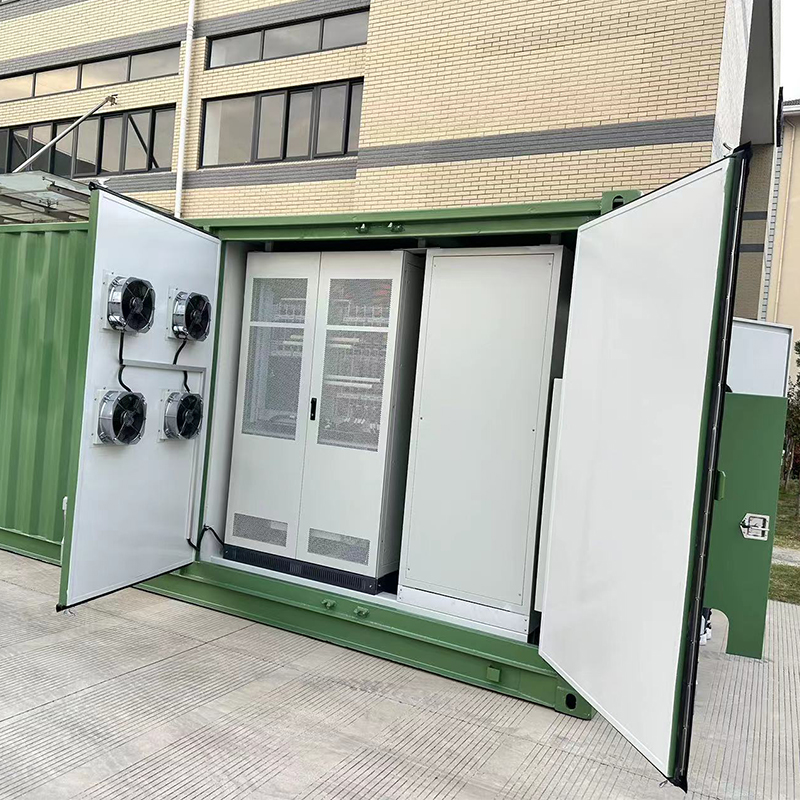

• With a complete heat dissipation and temperature control system to ensure that the temperature of the battery compartment is within the optimal working range;
• The access control system has remote control and on-site operation functions.
• PCS adopts modular, power frequency overall architecture, simple maintenance, flexible configuration, and can realize multiple parallel machines;
• EMS unattended system, local control, cloud monitoring operation, with highly customizable functions;
• With peak shaving and valley filling, demand response, anti-reverse flow operation, backup power supply, command response and other modes;
• According to customer needs, the type and capacity of the container energy storage system can be flexibly configured.
