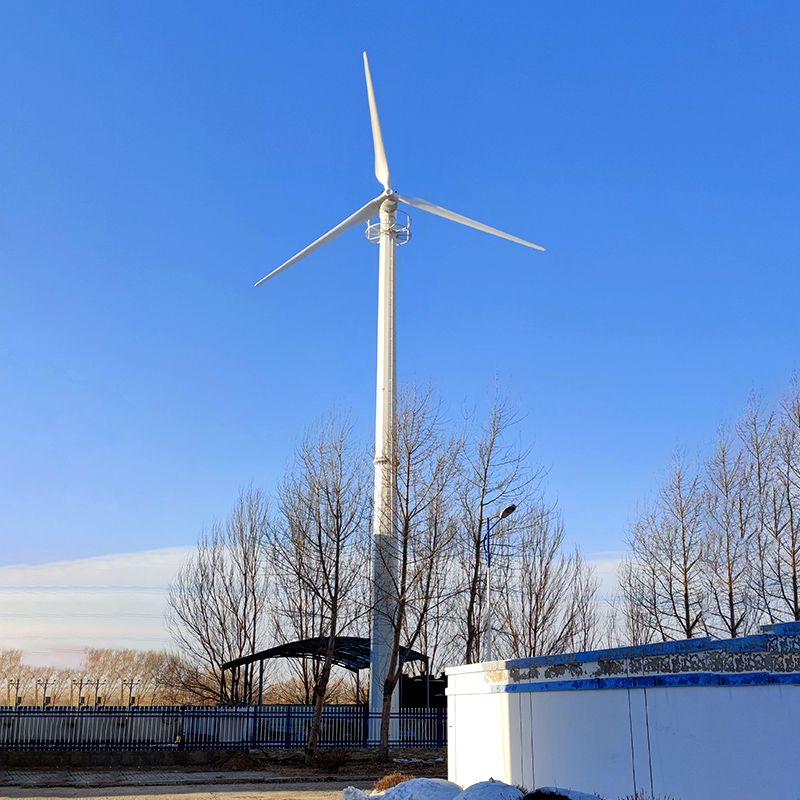

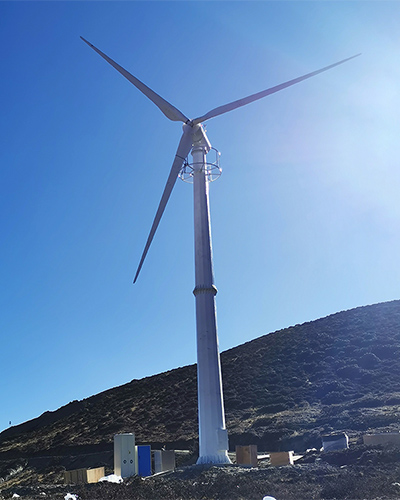

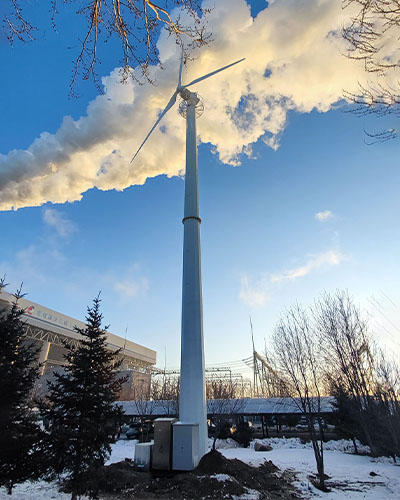

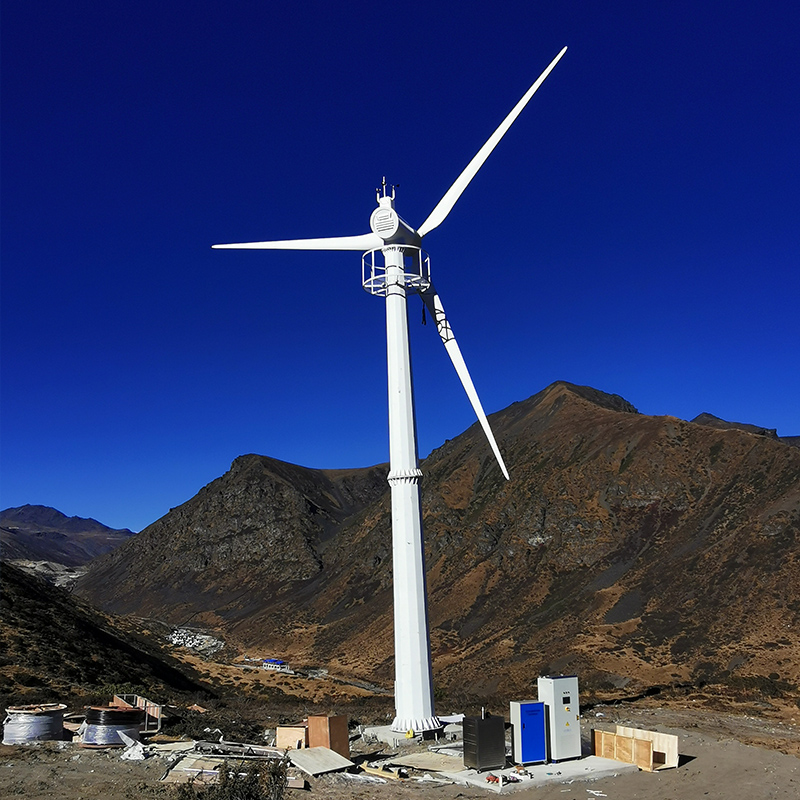

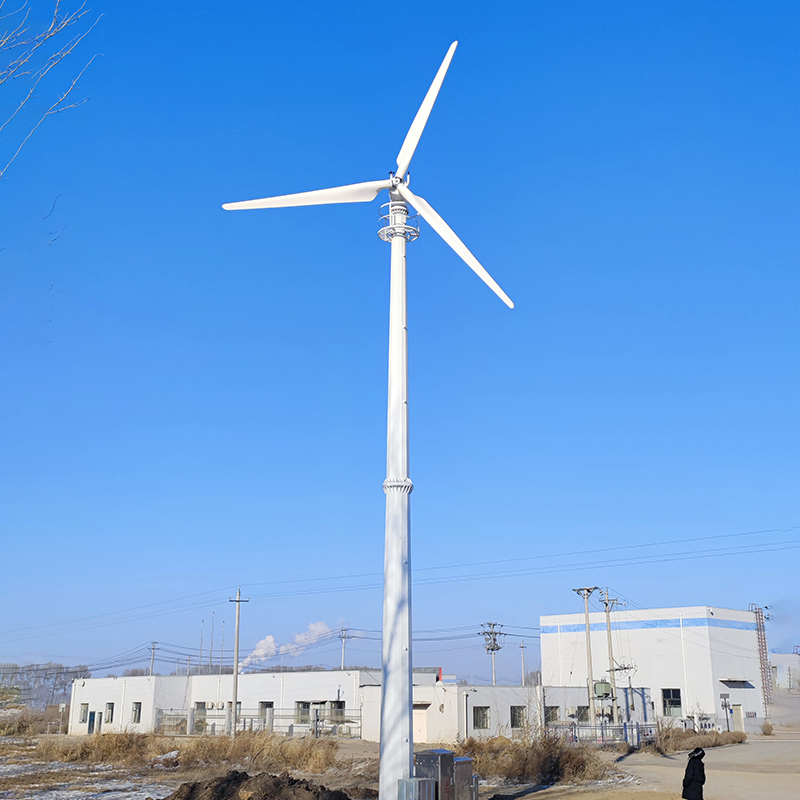

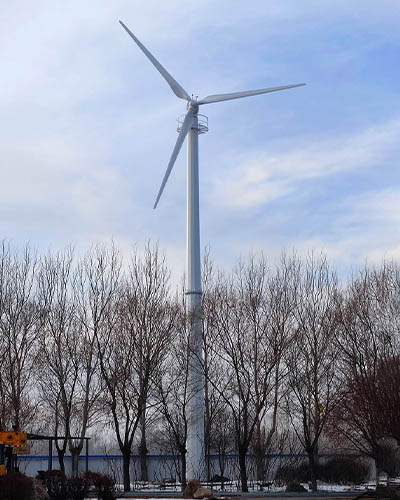

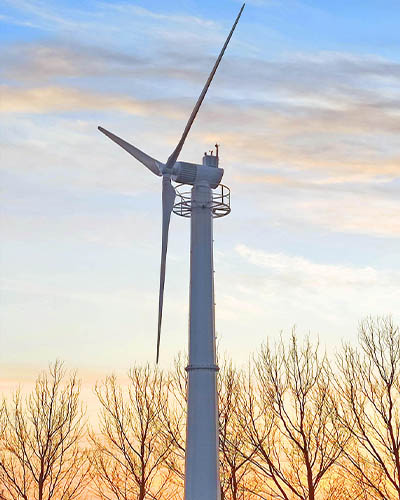

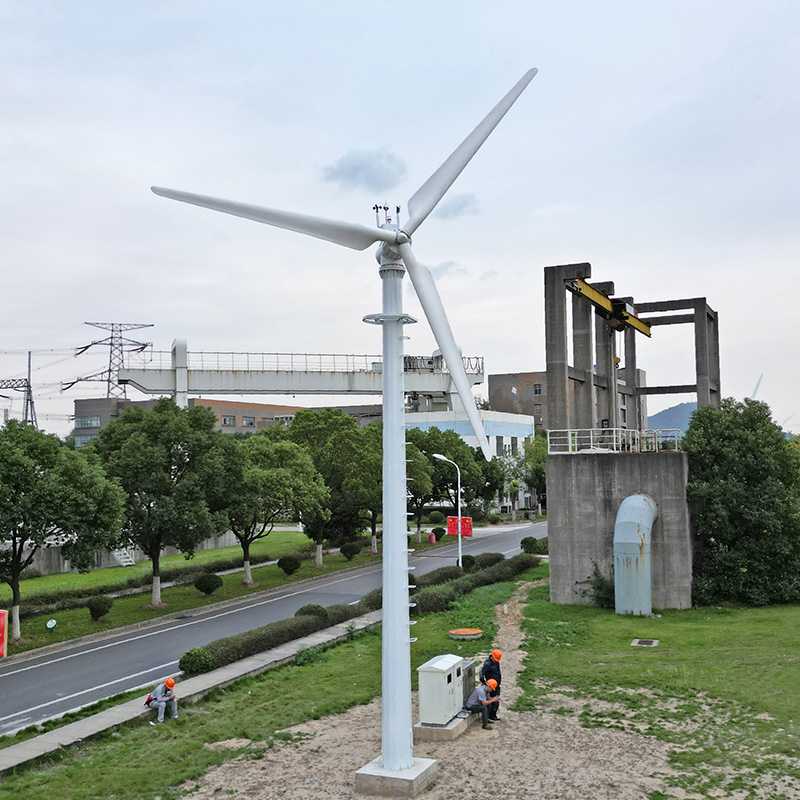

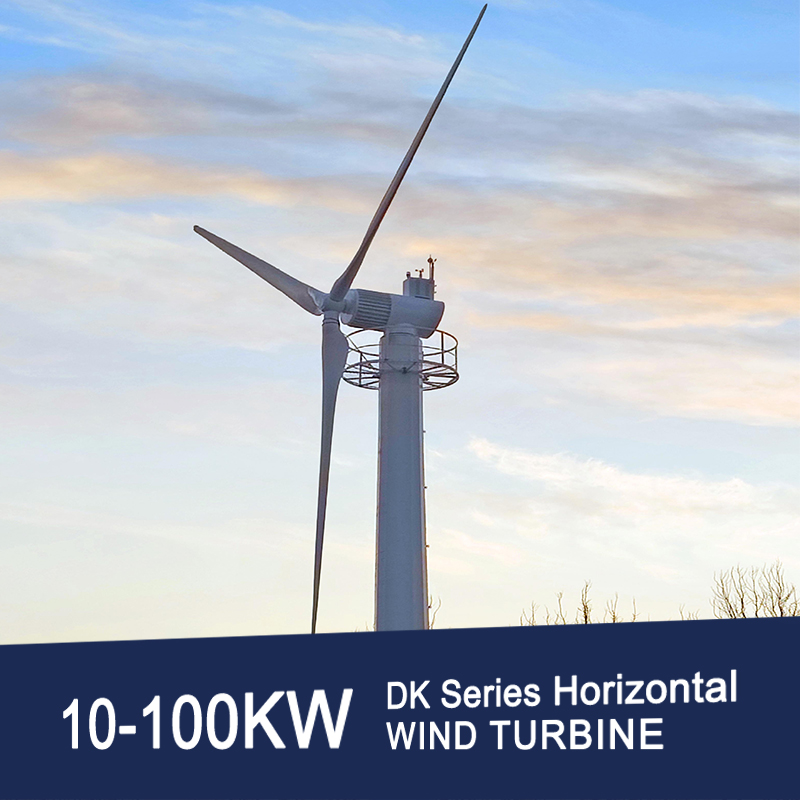

The DK series horizontal axis wind turbine adopts a classic three-blade design, combined with an intelligent electronic control system, which can efficiently capture wind energy and convert it into electrical energy. Its generator, gearbox and yaw system are all integrated in the nacelle, with a compact structure, suitable for use in medium and high wind speed areas. Through advanced electronic control technology, automatic windward, power adjustment and fault protection can be achieved to ensure stable operation.
Efficient power generation: DK series horizontal axis wind turbine using permanent magnet synchronous generator and MPPT (maximum power point tracking) technology, the wind energy conversion efficiency is high.
Intelligent control: equipped with an electronically controlled yaw system, real-time adjustment of blade angle, optimization of wind capture efficiency; overload, overvoltage, and lightning protection are comprehensive.
Low maintenance cost: modular design, long life of key components (such as bearings, gearboxes), reducing the frequency of downtime maintenance.
| Model | ES-DK-10K | ES-DK-20K | ES-DK-30K | ES-DK-50K | ES-DK-60K | ES-DK-80K | ES-DK-100K |
| Rated power | 10KW | 20KW | 30KW | 50KW | 60KW | 80KW | 100KW |
| Rated voltage | 220V/240V/380V/480V (Customizable) | 380V/480V/600V (Customizable) | |||||
| Start the wind speed | 2.5m/s | ||||||
| Rated wind speed | 10.5m/s | 11m/s | 10.5m/s | ||||
| Rated speed | 180rpm | 180rpm | 140rpm | 110rpm | 110rpm | 90rpm | 70rpm |
| Safe wind speed | ≤50m/s | ||||||
| Fan blade diameter | 7.5m | 9.5m | 12m | 15.5m | 17.5m | 20m | 22m |
| Number of blades | 3 | ||||||
| Blade material | Reinforced FRP | ||||||
| Fuselage material | Reinforced die -cast aluminum + cast iron | cast iron | |||||
| Magnetic steel material | NdFeB | ||||||
| Generator type | Three -phase AC permanent magnet synchronous direct drive generator | ||||||
| Lightning protection measures | Lightning protection module + lightning protection grounding | ||||||
| Wind direction adjustment | Electronically controlled automatic yaw to the wind | ||||||
| Insulation class | F | ||||||
| Degree of protection | IP54 | ||||||

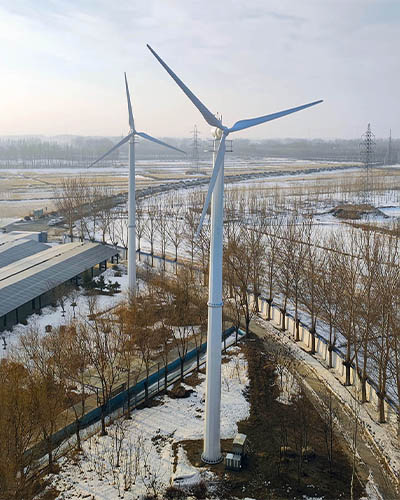

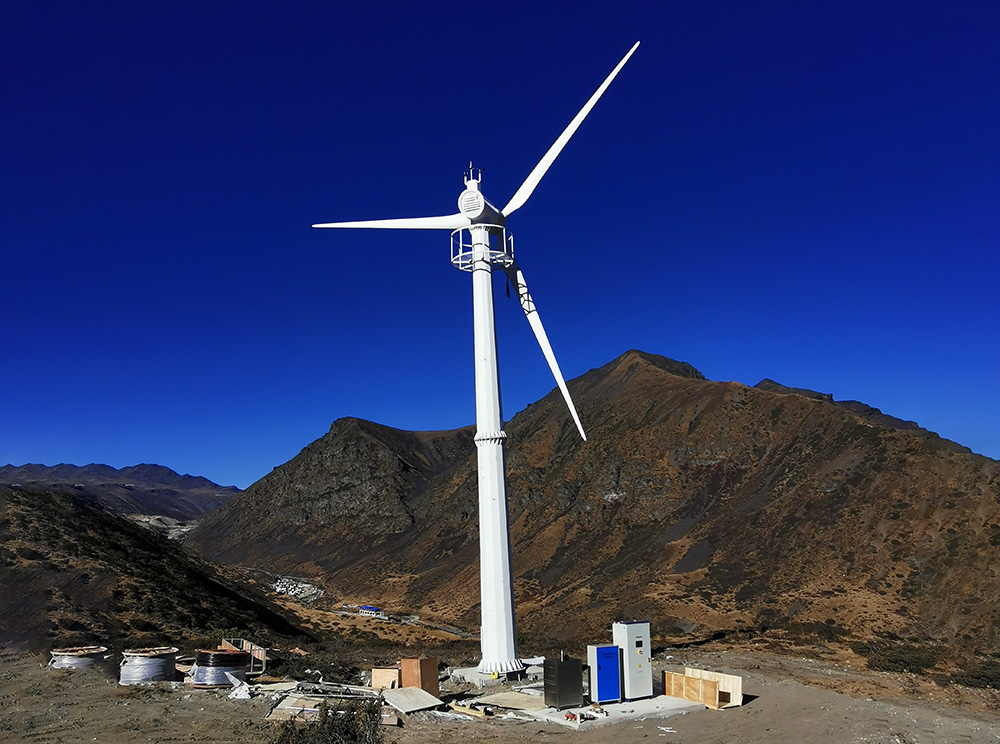

DK series horizontal axis wind turbine is suitable for home power supply, farms, communication base stations and small industrial and commercial electricity, especially in coastal and plain areas with stable wind speed. It can form a wind-solar complementary system with photovoltaics to achieve all-weather clean power supply.
