The H PRO vertical axis wind turbine adopts a unique vertical rotation design, and the blades are symmetrically distributed in an H shape. It can capture wind energy in any wind direction without a yaw system. It has a simple structure, a low center of gravity, and strong wind resistance, which is particularly suitable for complex environments such as cities and mountainous areas with variable wind directions.
Power generation in all wind directions: 360° wind reception, no need to adjust the direction, and adapt to sudden changes in wind direction.
Low noise and low speed: low starting wind speed (2-3m/s), low operating noise, especially suitable for installation in residential areas.
High reliability: no gearbox design to reduce mechanical loss. Simple structure and low operating and maintenance costs.
Unique appearance: unique appearance design, beautiful shape, in addition to power generation, this vertical axis wind turbine also has a certain landscape effect, especially popular in the European market.
| Model | ES-H PRO-1K | ES-H PRO-2K | ES-H PRO-3K | ES-H PRO-5K | ES-H PRO-10K | ES-H PRO-20K |
| Rated power | 1kw | 2kw | 3kw | 5kw | 10kw | 20kw |
| Start the wind speed | 2m/s | 2.5m/s | 3m/s | |||
| Rated wind speed | 11m/s | 12m/s | 13m/s | |||
| Safe wind speed | ≤35m/s | |||||
| Blade diameter | 1.67m | 2.2m | 2.4m | 3.15m | 4m | 4.25m |
| Blade height | 2.4m | 3.2m | 4.4m | 5m | 6m | 7m |
| Number of blades | 3 | 5 | 3 | |||
| Blade material | FRP | |||||
| Fuselage material | Aluminum alloy | Cast iron | ||||
| Generator type | Three-phase AC permanent magnet levitation generator | |||||
| Control mode | Electromagnetic brakes | |||||
| Wind direction adjustment | 360° automatic windward wind | |||||
| Degree of protection | IP54 | |||||

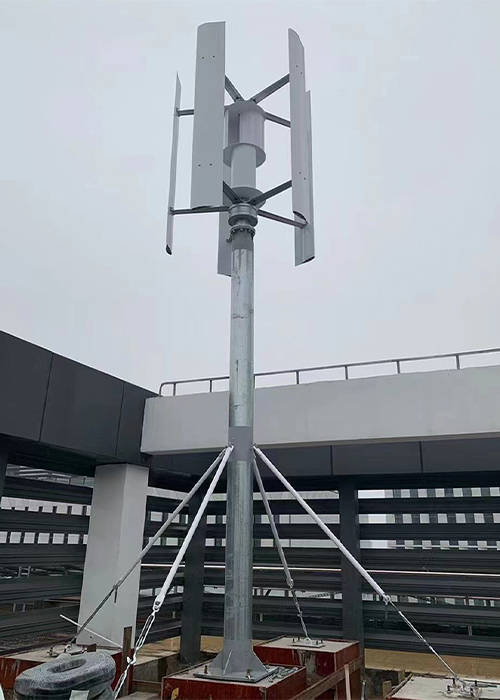

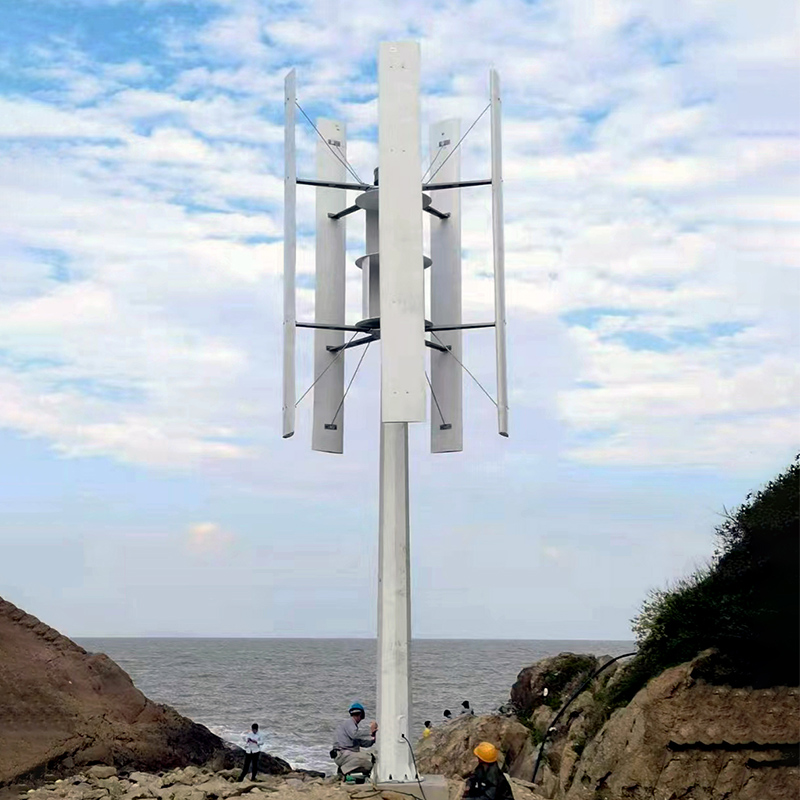

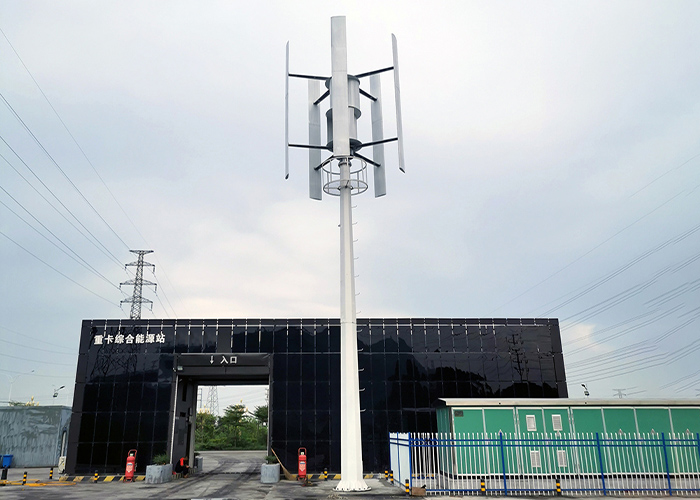

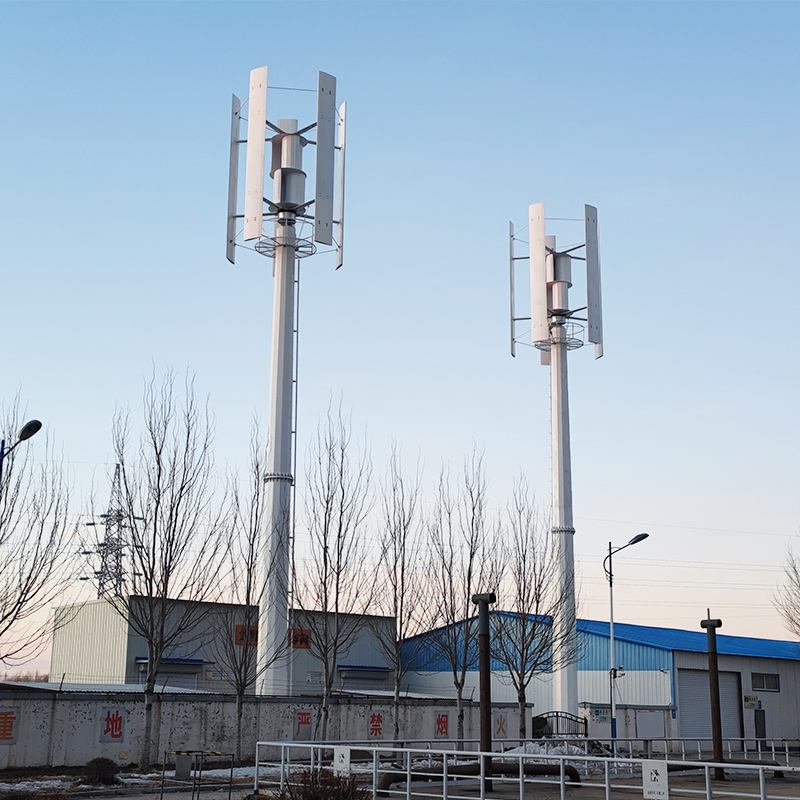

The H PRO vertical axis wind turbine is widely used in scenarios such as urban street lamp power supply, rooftop distributed power generation, and island off-grid systems. Its low noise characteristics and environmentally friendly design are particularly suitable for installation and use in residential areas, schools, hospitals and other places with high requirements for quietness.
