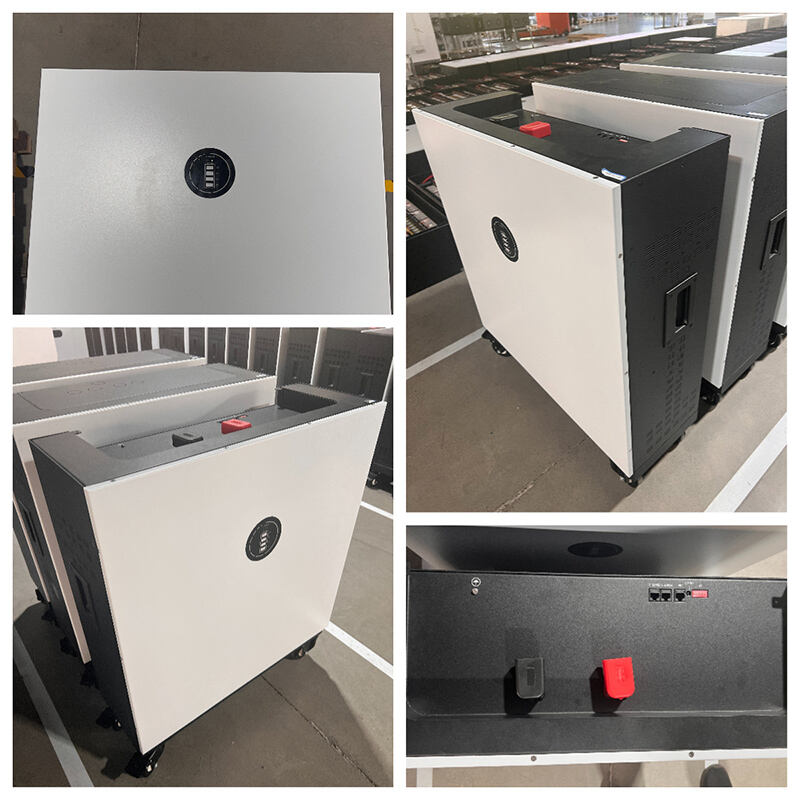

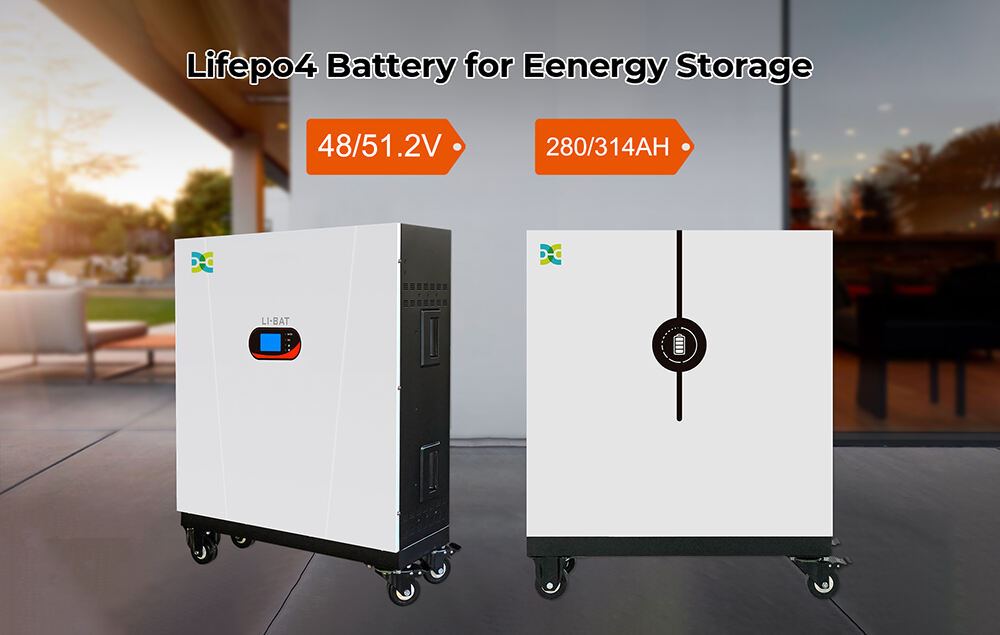

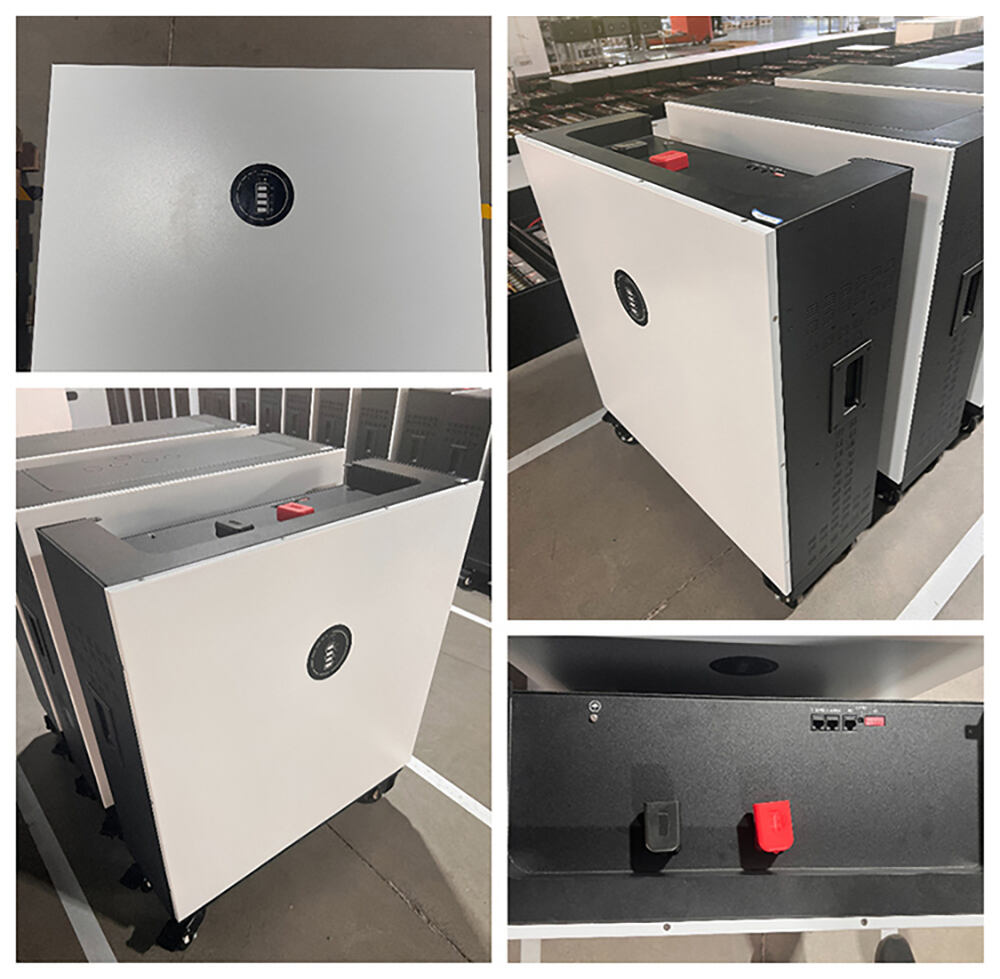

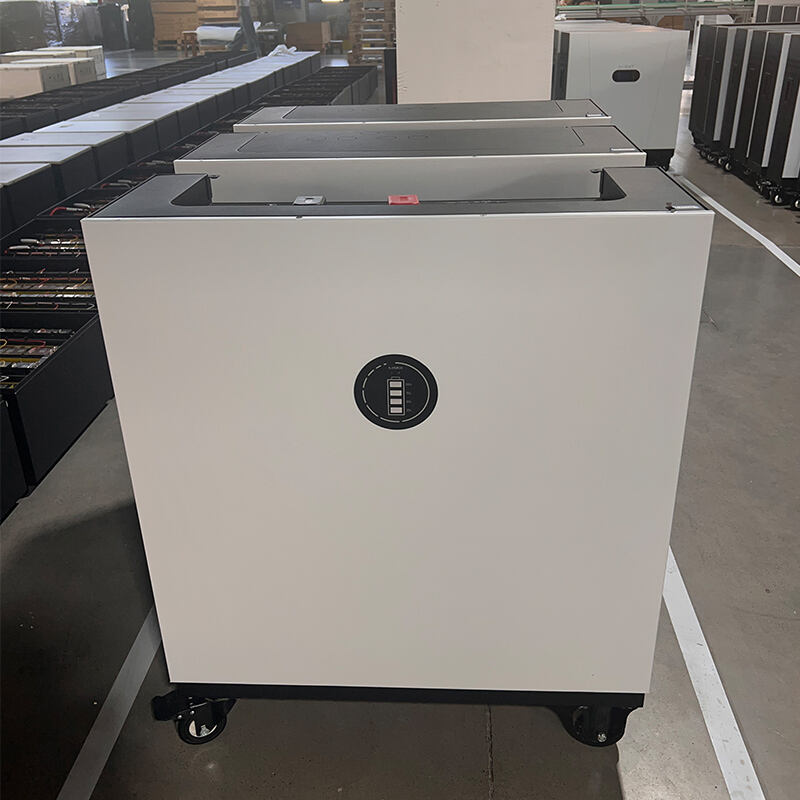

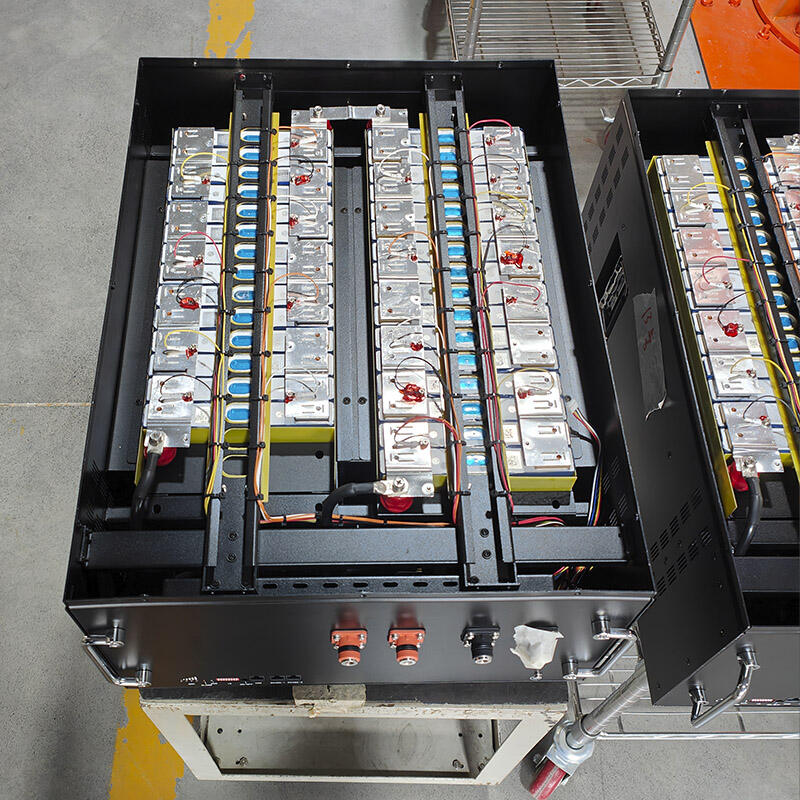

The Wheeled lifepo4 battery is an all-in-one portable energy storage solution that integrates a lithium iron phosphate battery pack and a mobile chassis. It features a high-strength aluminum alloy frame with a shock-resistant structure, universal shock-absorbing wheels, and a traction system, enabling rapid deployment and flexible transfer.
| Model | ES-BML | |||||||
| 48-280L | 48-314L | 48-560L | 48-628L | 51.2-280L | 51.2-314L | 51.2-560L | 51.2-628L | |
| Nominal voltage (V) | 48 | 51.2 | ||||||
| Nominal capacity (Ah) | 280 | 314 | 560 | 628 | 280 | 314 | 560 | 628 |
| Nominal energy capacity (kWh) | 13.4 | 15 | 26.8 | 30.1 | 14.3 | 16 | 28.6 | 32.1 |
| Operating voltage range (V) | 42~54.75 | 44.8~58.4 | ||||||
| Recommended charging voltage (V) |
51.75 | 55.2 | ||||||
| Recommended discharge cut-off voltage (V) |
45 | 48 | ||||||
| Standard charging/discharging current (A) |
100 | 100 | 100 | 100 | ||||
| Maximum continuous charging /discharging current (A) |
150 | 200 | 150 | 200 | ||||
| Permissible humidity range (%RH) |
<85 | |||||||
| Storage temperature (℃) | -20～65(Recommended10～35) | |||||||
| Charging temperature (℃) | 0~50 | |||||||
| Discharging temperature (℃) | -10~60 | |||||||
| Protection level | IP20 | |||||||
| Cooling method | Natural air cooling | |||||||
| Maximum size(D*W*H) mm | 248*680*830 | 890*350*1060 | 248*680*880 | 890*350*1060 | ||||
| Weight (kg) | 136.5 | 140.5 | 280 | 288 | 139 | 143.5 | 284 | 292.5 |

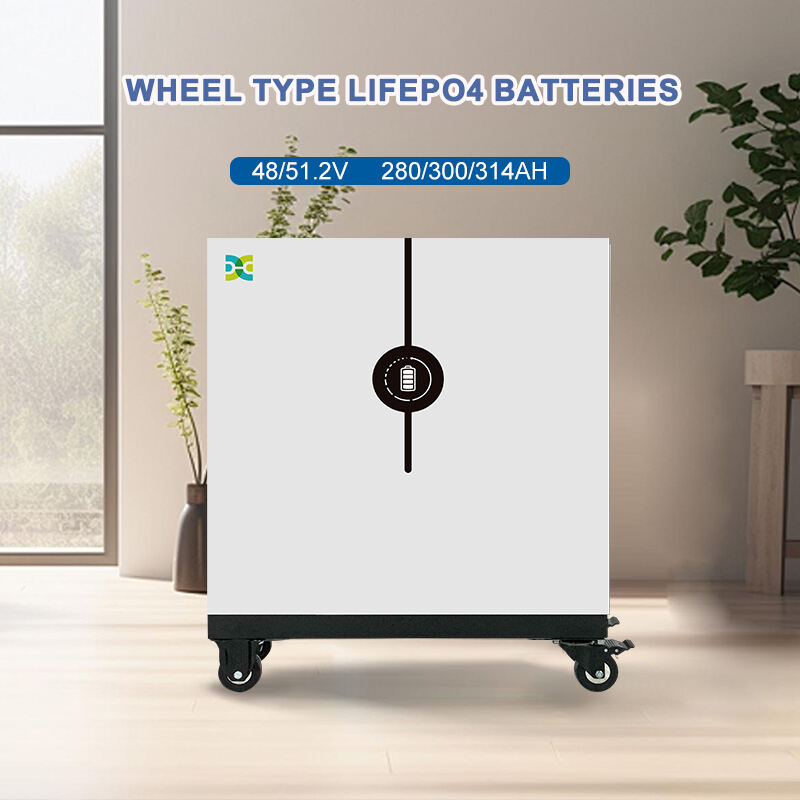

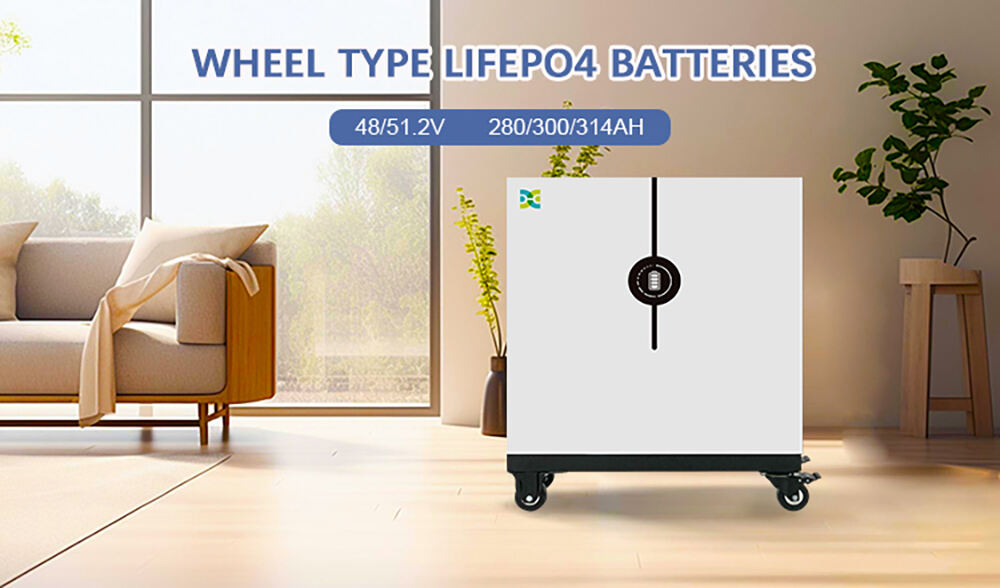

• The lifepo4 battery adopts wheel design, beautiful shape, and convenient movement;
• Including the mainstream market inverter protocol, directly communicates;
• This wheeled lifepo4 battery adopts a comprehensive and multi -level battery protection strategy and fault isolation measures to ensure the safe operation of the system.

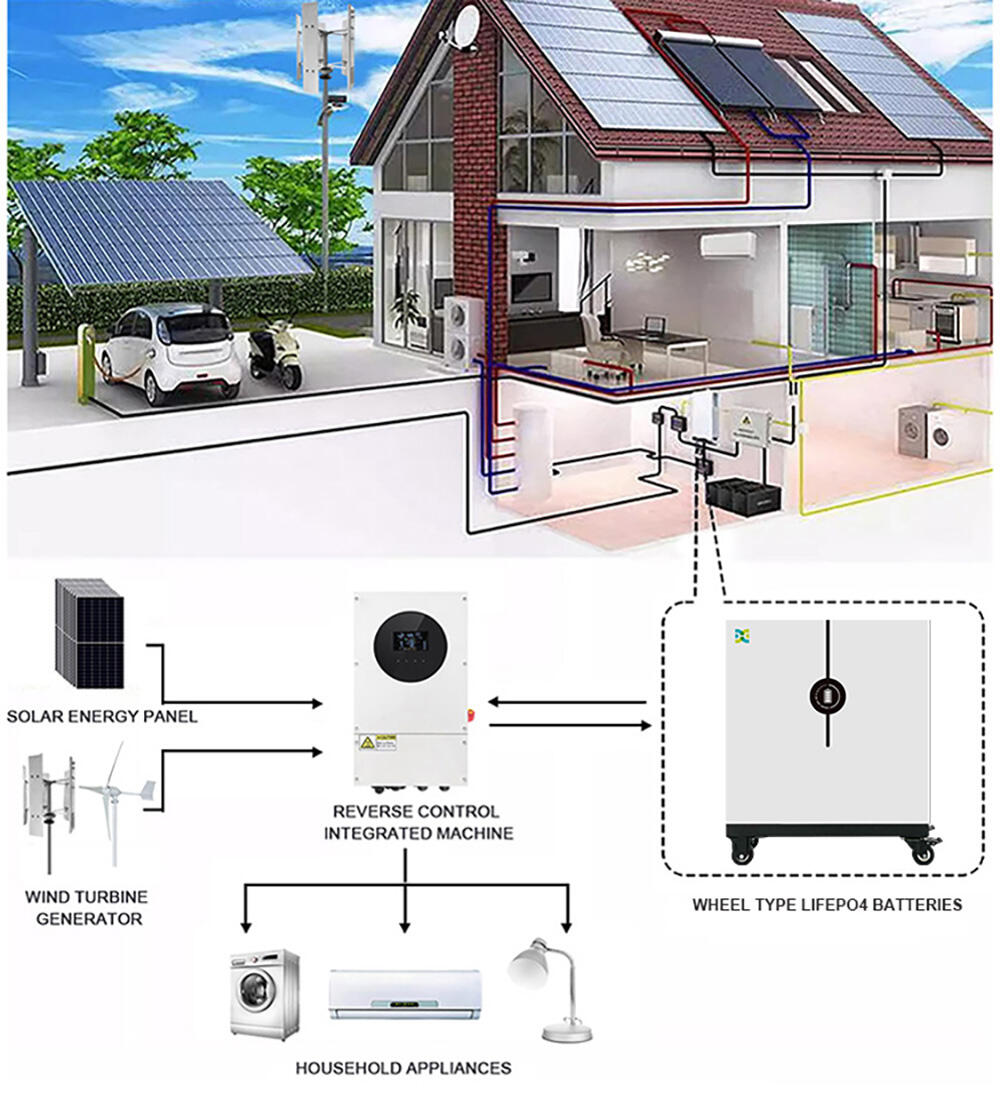

• Wheeled lifepo4 battery is widely used in small commercial and family energy storage.
• Wheeled design, easy to move.
• Embedded wiring, safe and reliable.
• Environmentally friendly and pollution-free materials, no heavy metals, green and environmentally friendly.
• Standard cycle life over 5,000 times.
