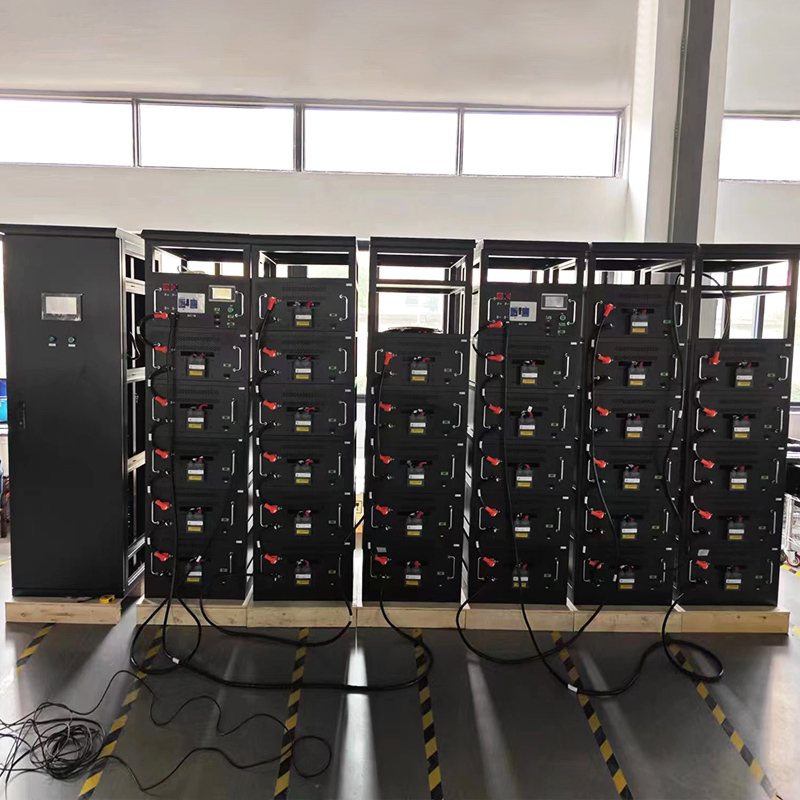

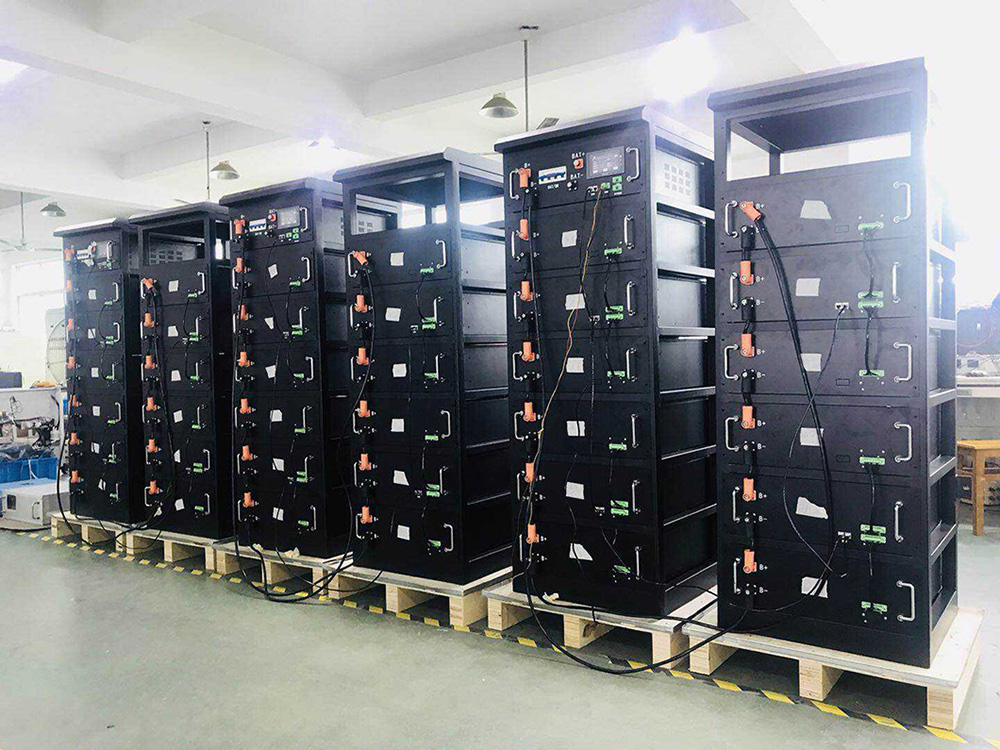

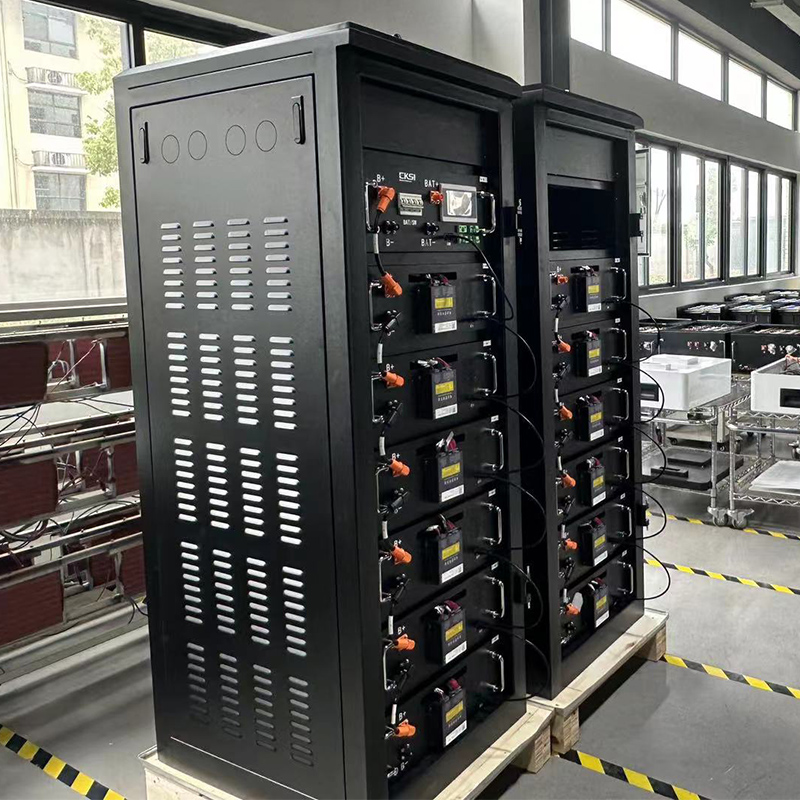

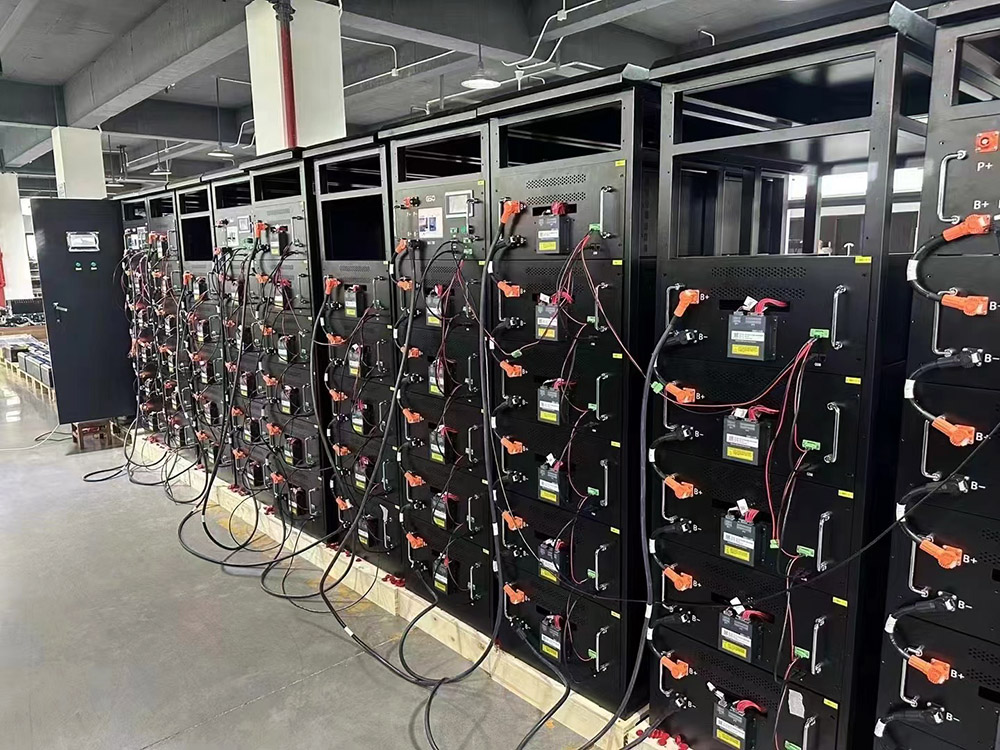

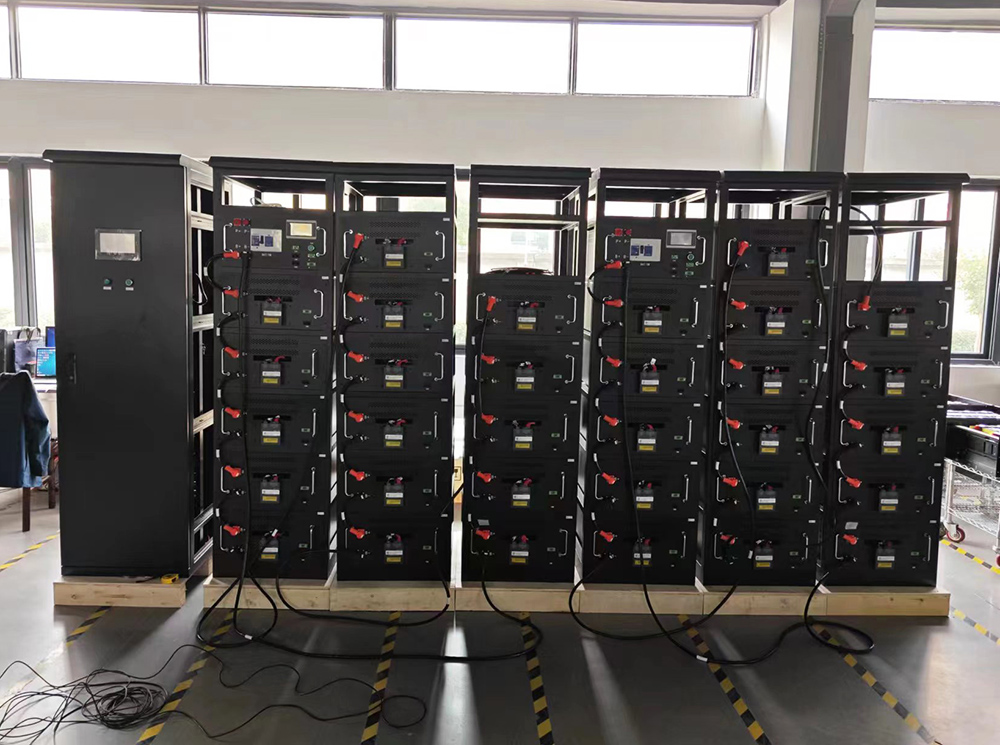

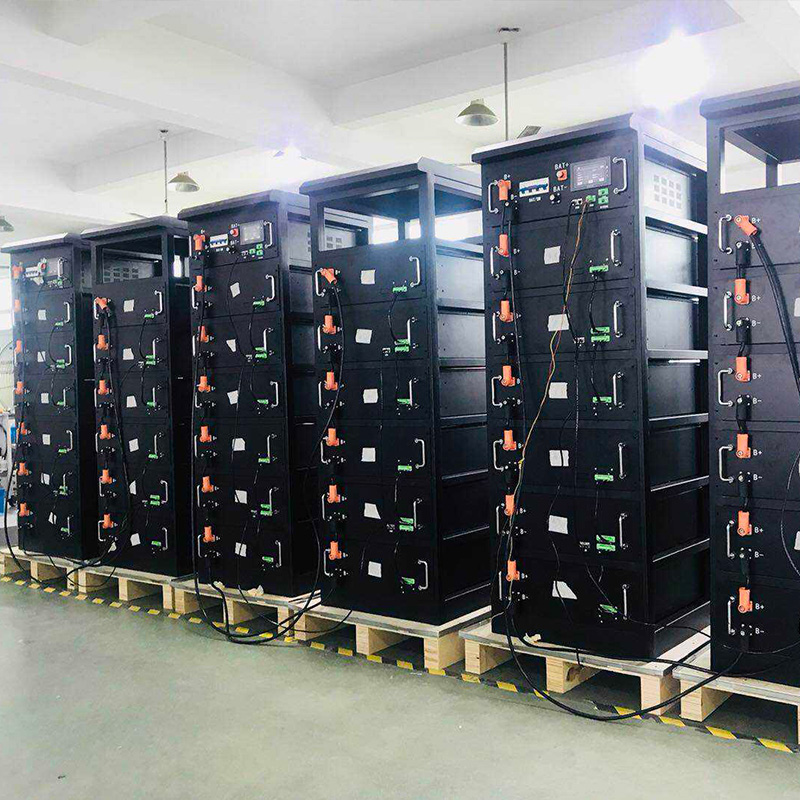

ES-PC series high voltage battery products are high-voltage and large-capacity systems developed for industrial and commercial emergency power
supply, peak shaving and valley filling, and power supply in remote mountainous areas, islands and other areas without electricity or weak electricity.
The high voltage battery uses lithium iron phosphate cells and a customized BMS system to effectively manage the cells.
| Lithium Battery Pack Parameter Table | |||||
| Model | ES-51.2V314AH | ||||
| Cell Type (Ah) | 314 | ||||
| Nominal energy (kWh) | 16.1 | ||||
| Nominal capacity (Ah) | 314 | ||||
| Nominal voltage (VDC) | 51.2 | ||||
| Operating voltage range (VDC) | 48~56.8 | ||||
| Charging temperature (℃) | 0~50 | ||||
| Discharging temperature (℃) | -10~65 | ||||
| Protection level | IP20 | ||||
| Reference weight (kg) | 128 | ||||
| Reference size (D*W*H) mm | 904*510*245 | ||||
| Note: - The battery packis used with the system, the cycle life is ≥5000 working conditions, 25℃, 80%DOD; - Special voltage can be consulted and selected; - The system with different voltage and capacity registration can be configured according to the batterypack specifications. | |||||
| Lithium Battery Cluster Voltage Platform Parameter Table | |||||
| Model | Nominal voltage (V) | Nominal capacity (Ah) | Operating voltage range (VDC) |
Recommended charge and discharge current(A) |
|
| ES-PC2 | 102.4 | 314 | 96~113.6 | 150 | |
| ES-PC3 | 153.6 | 144~170.4 | |||
| ES-PC4 | 204.8 | 192~227.2 | |||
| ES-PC5 | 256 | 240~284 | |||
| ES-PC6 | 307.2 | 288~340.8 | |||
| ES-PC7 | 358.4 | 336~397.6 | |||
| ES-PC8 | 409.6 | 384~454.4 | |||
| ES-PC9 | 460.8 | 432~511.2 | |||
| ES-PC10 | 512 | 480~568 | |||
| ES-PC11 | 563.2 | 528～624.8 | |||
| ES-PC12 | 614.4 | 576~681.6 | |||
| ES-PC13 | 665.6 | 624~738.4 | |||
| ES-PC14 | 716.8 | 672~795.2 | |||
| ES-PC15 | 768 | 720~852 | |||
| ES-PC16 | 819.2 | 768~908.8 | |||
• Compared with traditional batteries, high voltage battery has better product performance and safety and reliability.
• Diversified communication interfaces and software protocol libraries enable the high voltage battery system to directly match and communicate with all mainstream inverters on the market.
• The energy storage battery has many charge and discharge cycles, high power density, and a service life of more than 10 years.
• This energy storage battery features unique designs and innovations have been made in compatibility, energy density, dynamic monitoring, safety, reliability, and product appearance, which can bring users a better energy storage application experience.

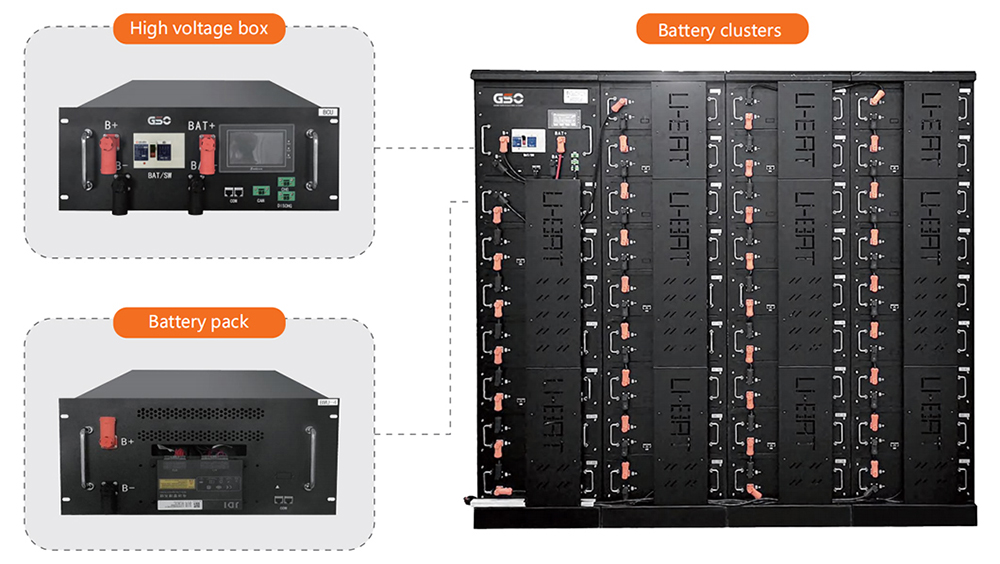

• Modular design, automatic identification of ID code, saving installation space;
• One-button power on and off, convenient installation and maintenance, easy operation;

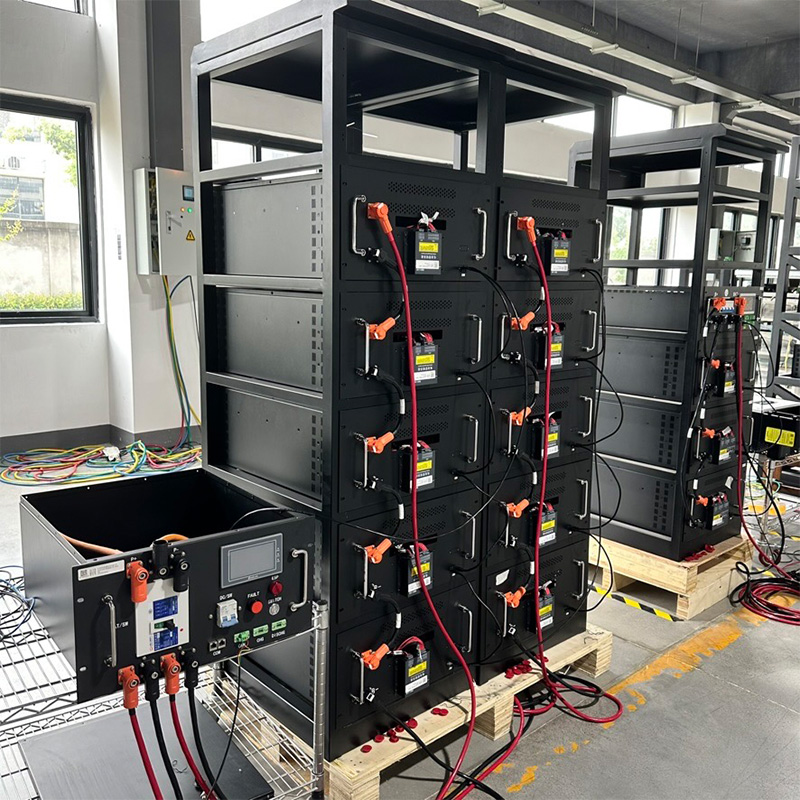

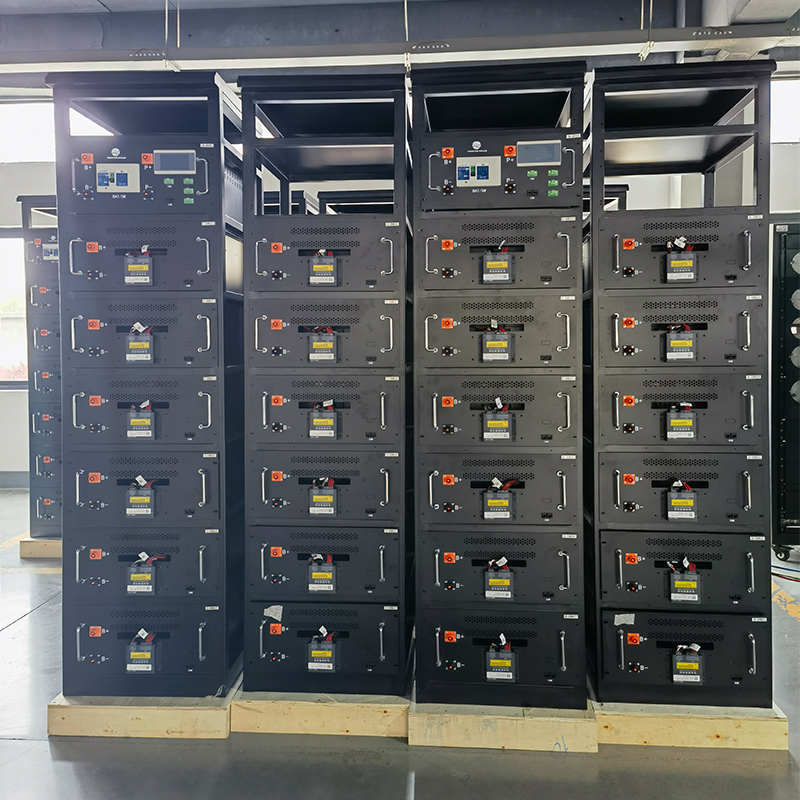

• Each energy storage battery cluster is equipped with a touch screen to intuitively display the operating status;

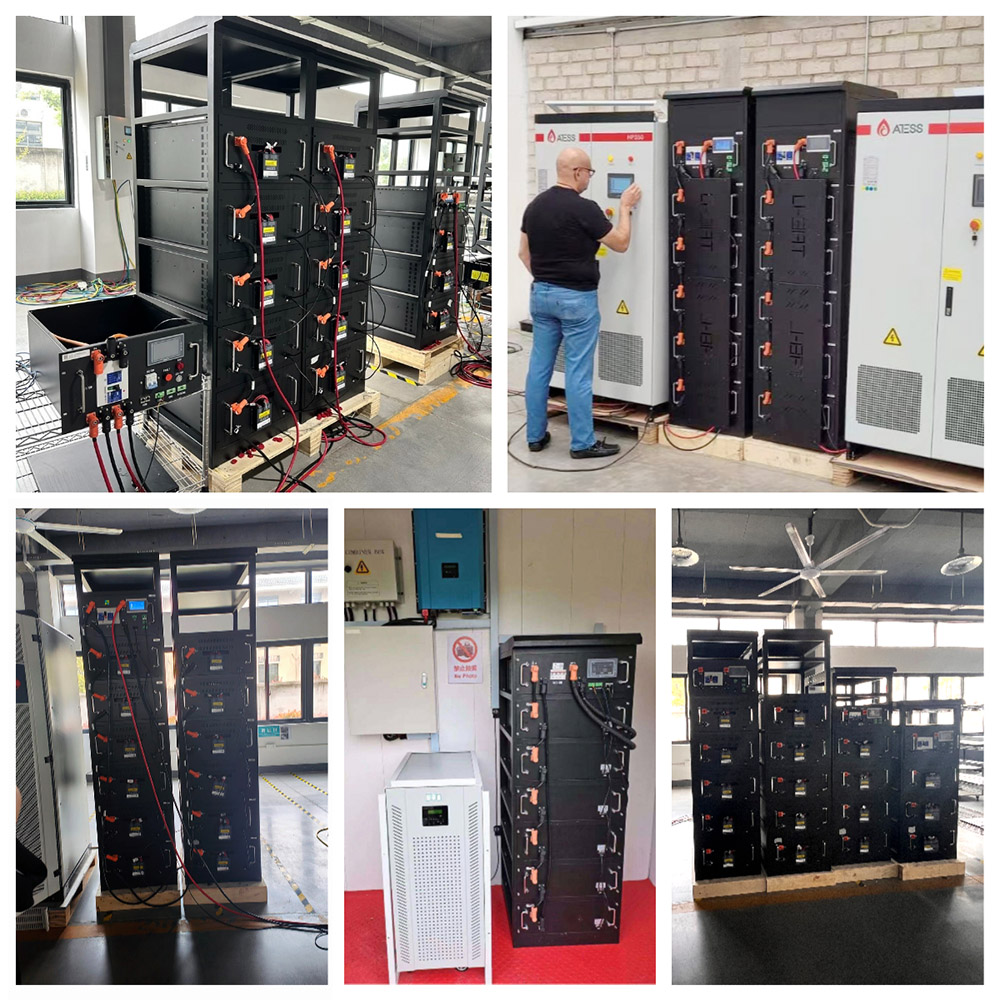

• Strong compatibility, can be seamlessly connected with UPS, photovoltaic power generation and other main equipment;
• The communication interface is diversified, CAN/RS485/dry contact, etc. can match various inverters, and can also be customized according to customer needs to facilitate remote monitoring of the system;

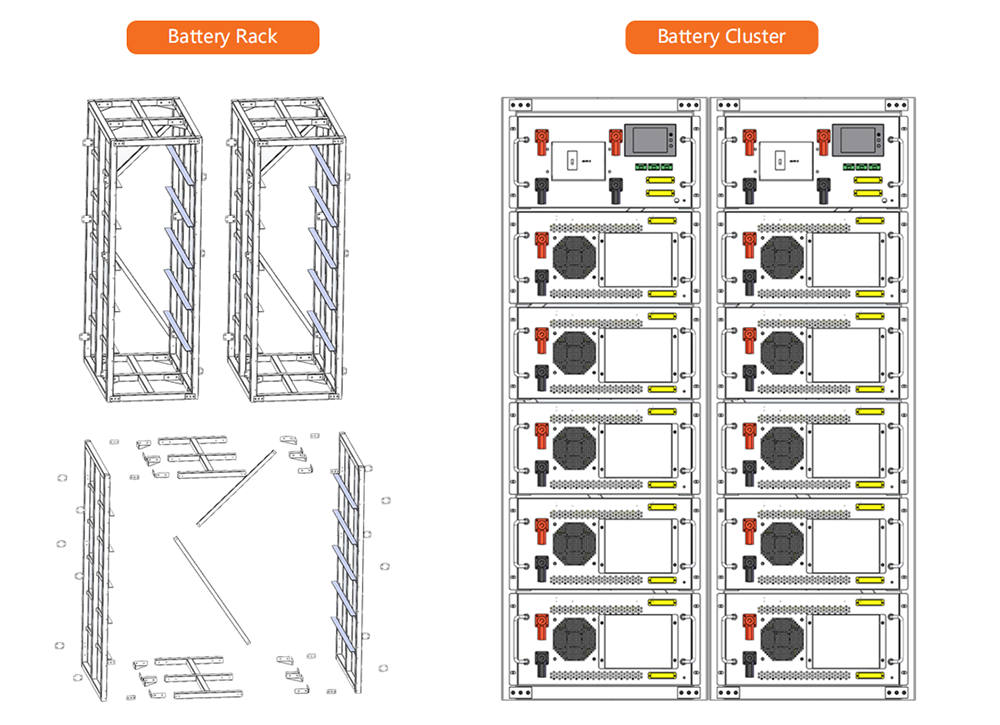

• This energy storage battery pack features a removable battery rack, reducing transportation space.
