Outdoor Energy Storage Cabinet Shipment Log for Thai customer

Today, we are conducting communication tests for an outdoor energy storage cabinet for a customer from Thailand; after the tests are completed, the delivery will be arranged. Let's take a look at the details!

Product Information

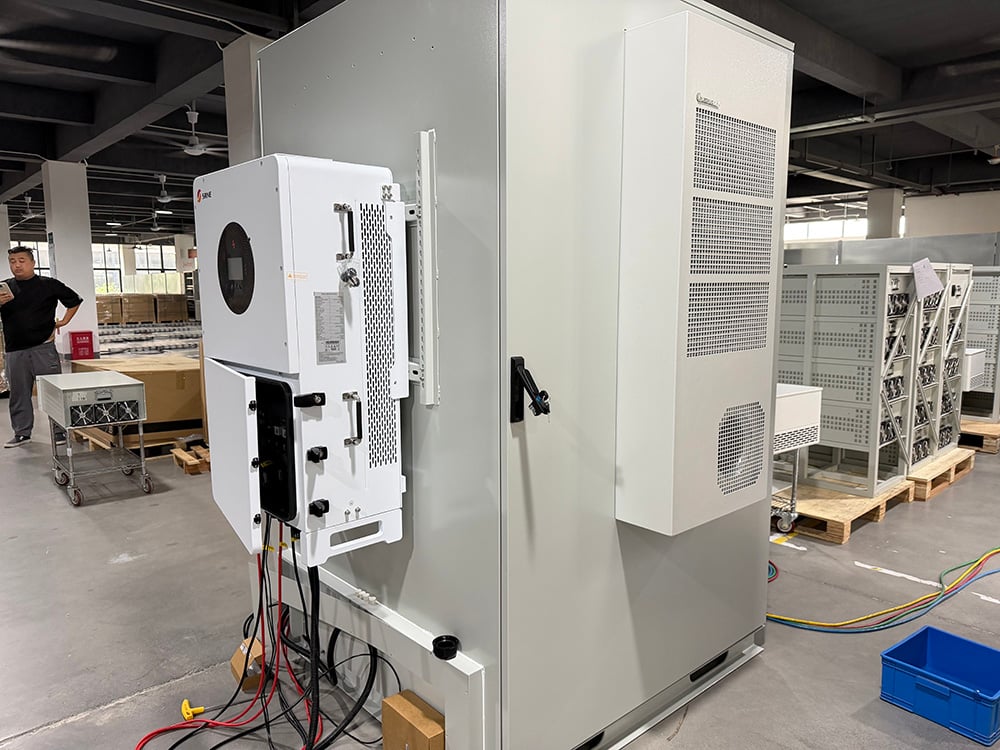

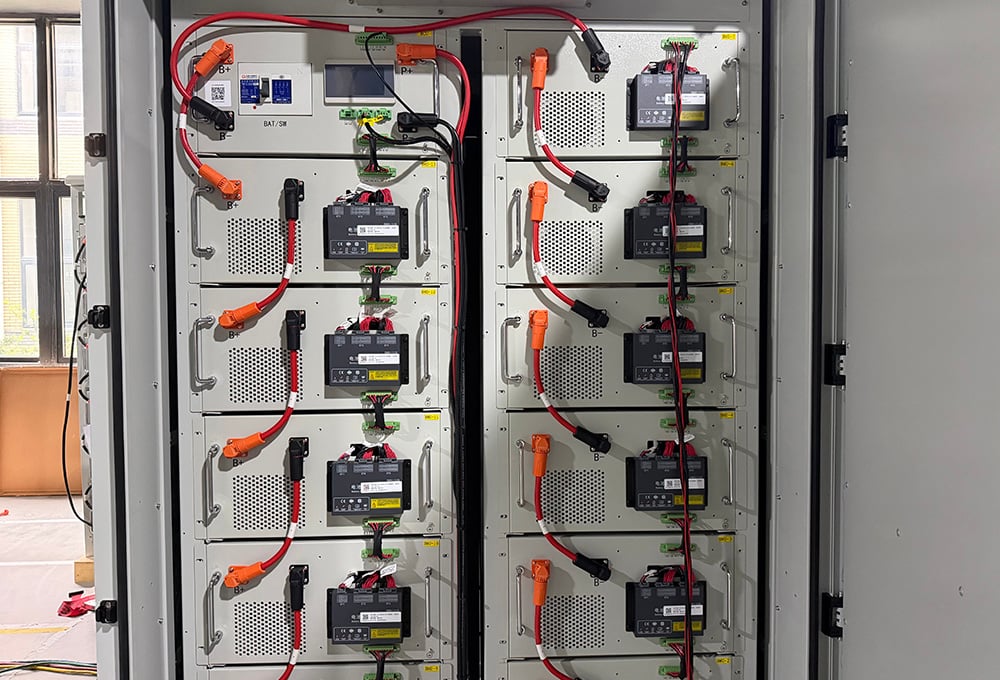

This system includes an outdoor energy storage cabinet, a high-voltage control unit, 13 51.2V/314Ah battery packs, an air conditioning unit and a fire extinguishing equipment. Its nominal voltage is 665.6V, and the working voltage range is 624V to 738.4V. The system is equipped with an SRNE 50kW three-phase hybrid inverter, which supports multiple inputs such as the grid, solar energy, wind energy and generators. All energy management is completed by the SRNE unit. Such a system can meet the power demand of small factories or small communities, and can ensure the power supply for basic activities even in the event of a power grid outage.

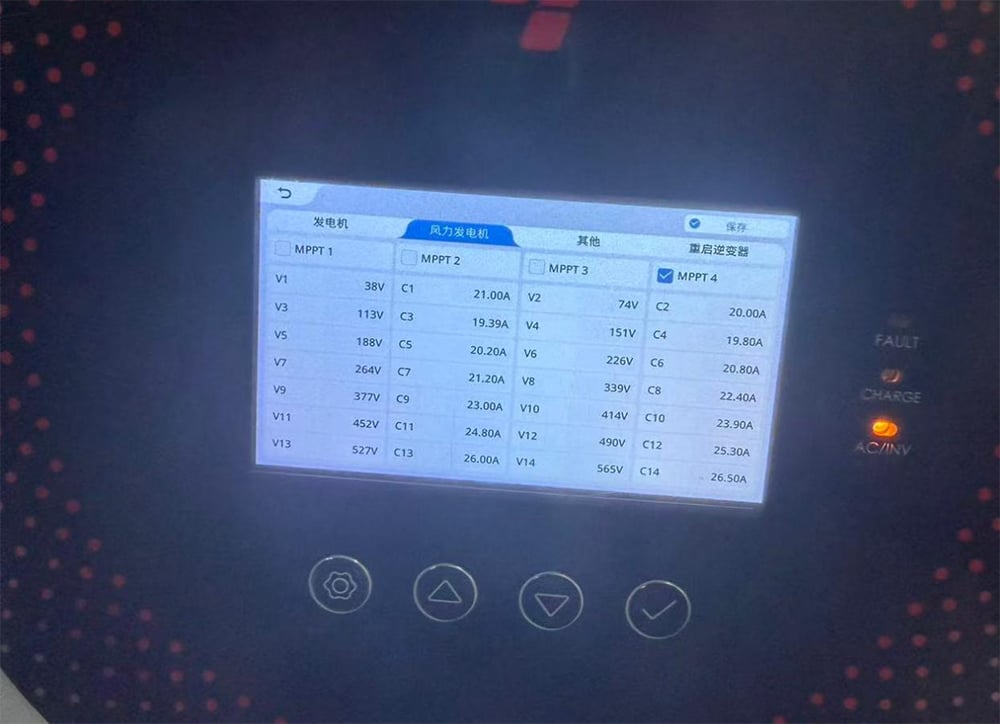

The customer uses a 20kW vertical-axis wind turbine generator, which is connected to the MPPT4 unit through the grid-connected wind turbine generator controller; the power curve of MPPT4 has been adjusted to match that of the wind turbine generator.

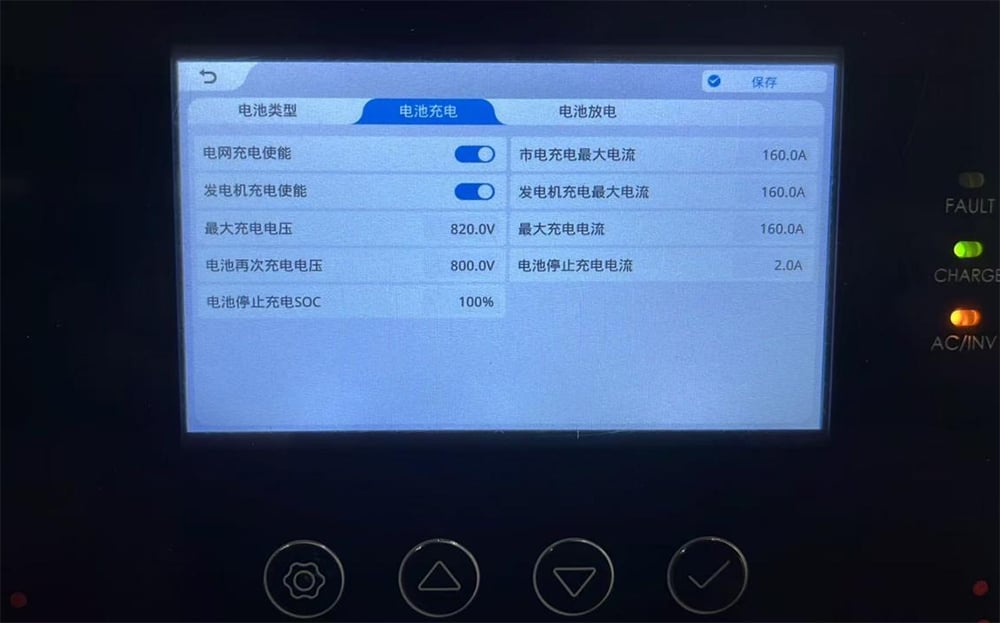

The most crucial step is to conduct communication and charge-discharge tests on the inverter and battery packs to ensure their normal operation; if any problems occur, we will immediately coordinate with the relevant engineers in China to solve them. Thus, after the customer receives the product, they only need to connect the corresponding cables to start using it.

Our company focuses on small-scale micro-grid projects of 500kW and below, especially photovoltaic-wind complementary systems. We conduct simulation tests at each key stage to prevent unexpected problems after delivery and provide comprehensive pre-sale and post-sale technical guidance.
