Pitch Controlled Horizontal Axis Wind Turbine 150Kw

Introducing, the Jiangsu DHC’s Pitch Controlled Wind Turbine 150Kw, the perfect solution for industrial and commercial applications in need of reliable and efficient power generation. This cutting-edge wind turbine harnesses the power of nature to provide clean and sustainable energy for a wide range of industries.

Designed for maximum performance and durability, the Jiangsu DHC Pitch Controlled Wind Turbine is equipped with advanced pitch control technology to optimize energy production in varying wind conditions. This innovative feature allows the turbine blades to adjust their angle in real-time, ensuring maximum efficiency and power output at all times.

With a power rating of 150Kw, this wind turbine is capable of generating substantial amounts of electricity, making it ideal for large-scale industrial and commercial operations. Whether you're looking to offset your energy costs or reduce your carbon footprint, the Jiangsu DHC’s Pitch Controlled Wind Turbine is the perfect solution for businesses seeking sustainable power sources.

Not only does this wind turbine provide clean and renewable energy, but it also offers significant cost savings compared to traditional power sources. By harnessing the power of the wind, businesses can reduce their reliance on fossil fuels and take a significant step towards a more sustainable future.

The Jiangsu DHC’s Pitch Controlled Wind Turbine is also built to withstand the harshest weather conditions, ensuring uninterrupted power generation year-round. Its robust construction and high-quality materials make it a reliable and long-lasting investment for businesses looking to secure their energy needs for years to come.

In addition to its superior performance and durability, the Jiangsu DHC’s Pitch Controlled Wind Turbine is also easy to install and maintain, saving businesses time and money on installation and upkeep. With its user-friendly design and low maintenance requirements, this wind turbine is a hassle-free solution for businesses looking to incorporate renewable energy into their operations.

The Jiangsu DHC’s Pitch Controlled Wind Turbine 150Kw is an efficient, reliable, and cost-effective solution for industrial and commercial applications in need of sustainable power generation. With its advanced technology, high performance, and durability, this wind turbine is a smart choice for businesses looking to reduce their environmental impact and secure their energy needs for the future

Product Description

Pitch Controlled Wind Turbine 150Kw for Industrial And Commercial Use

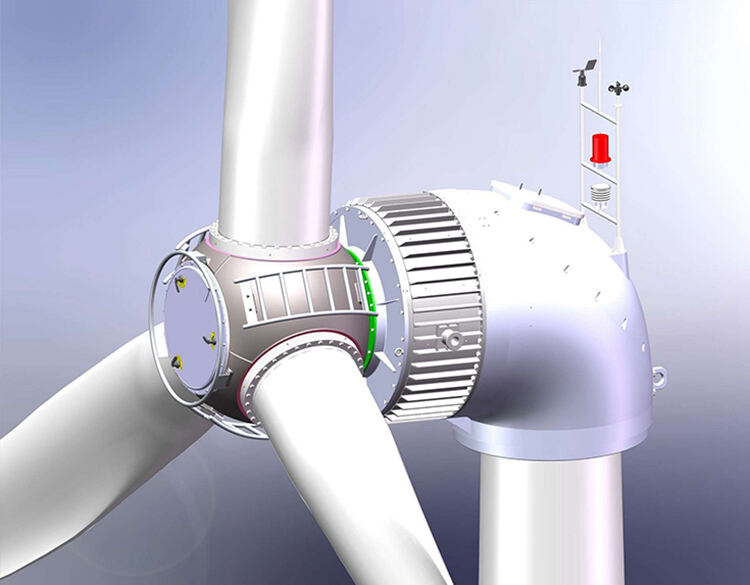

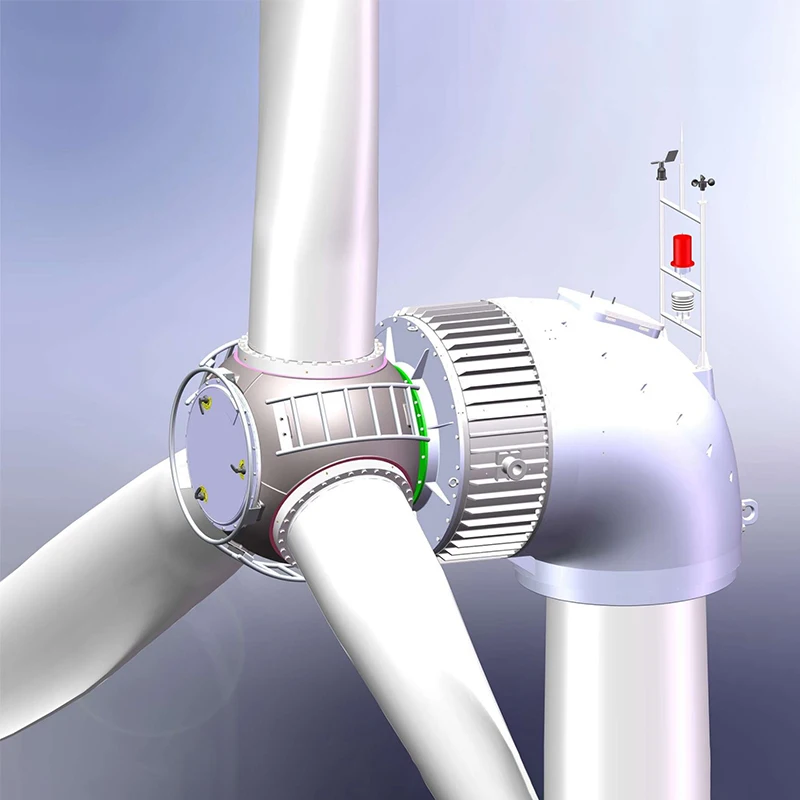

1. This pitch control wind turbine uses a low-speed permanent magnet generator and a direct-drive gearbox-free transmission design. The transmission system is efficient, reliable and has a long service life 2. The active variable pitch control technology optimizes the load control of the unit, and the output power is continuous and stable in strong winds

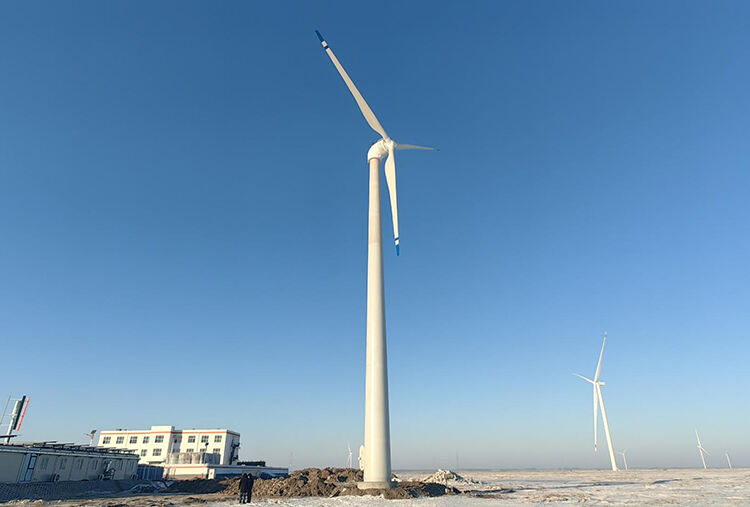

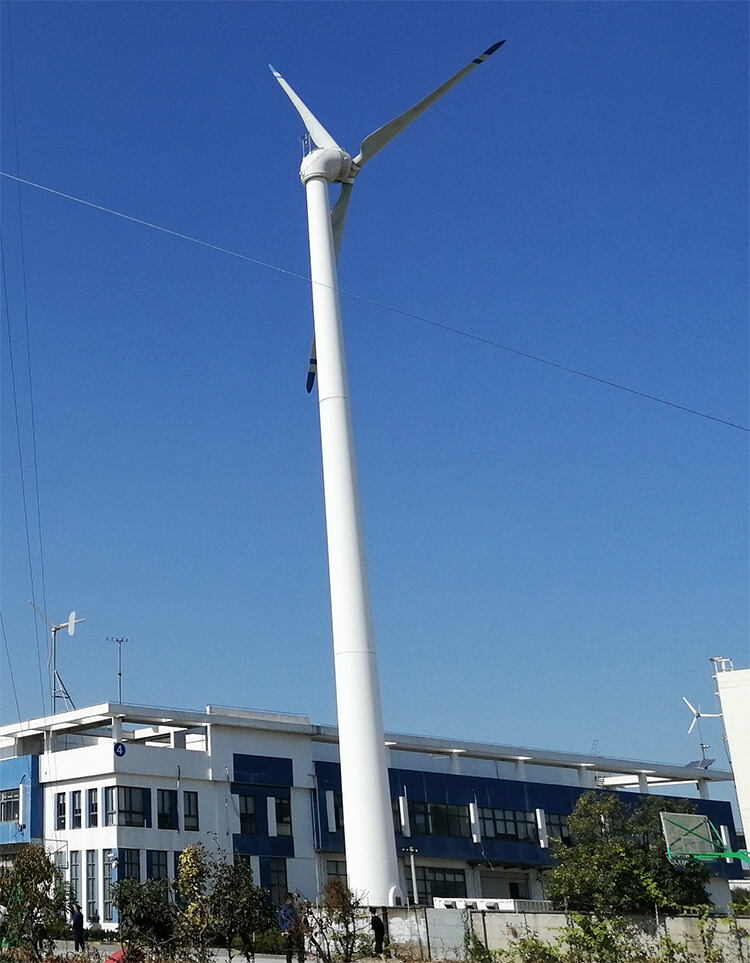

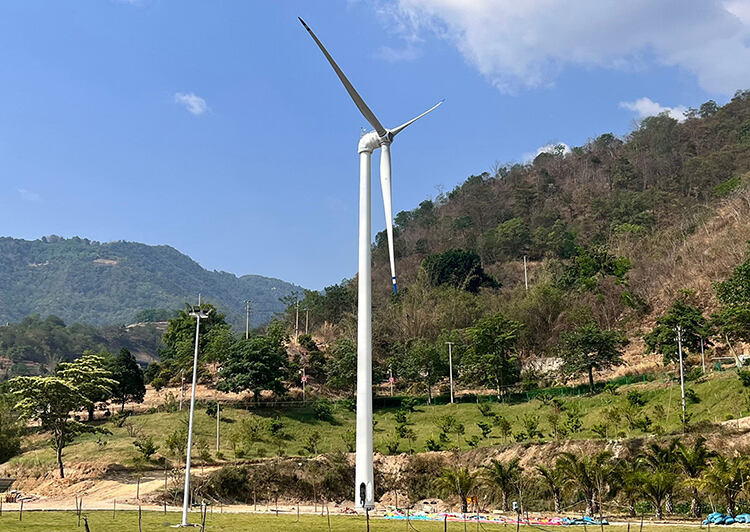

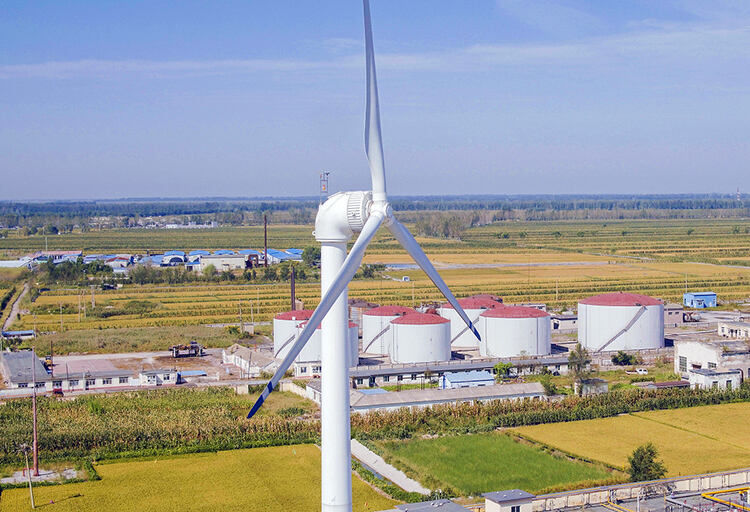

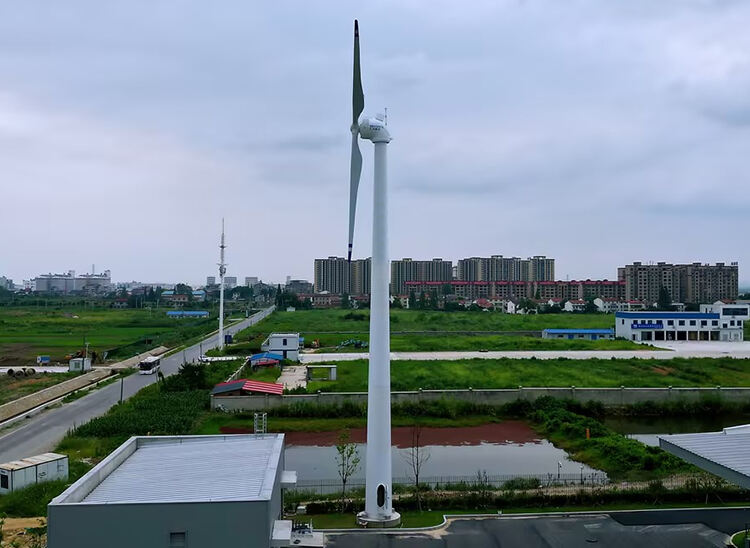

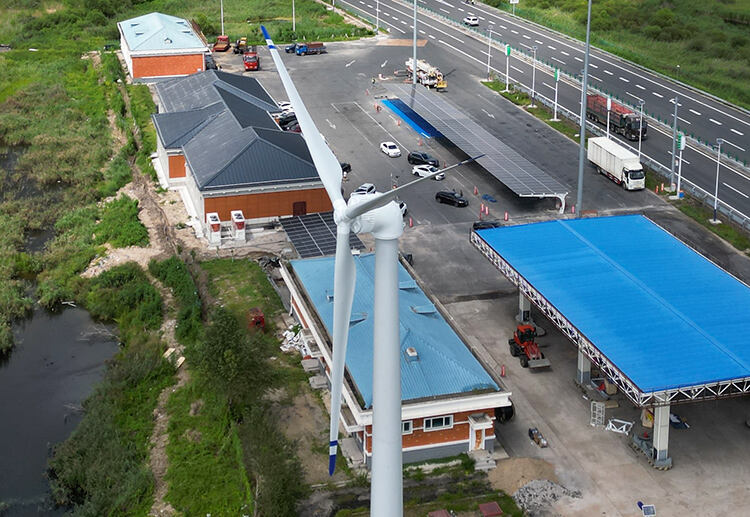

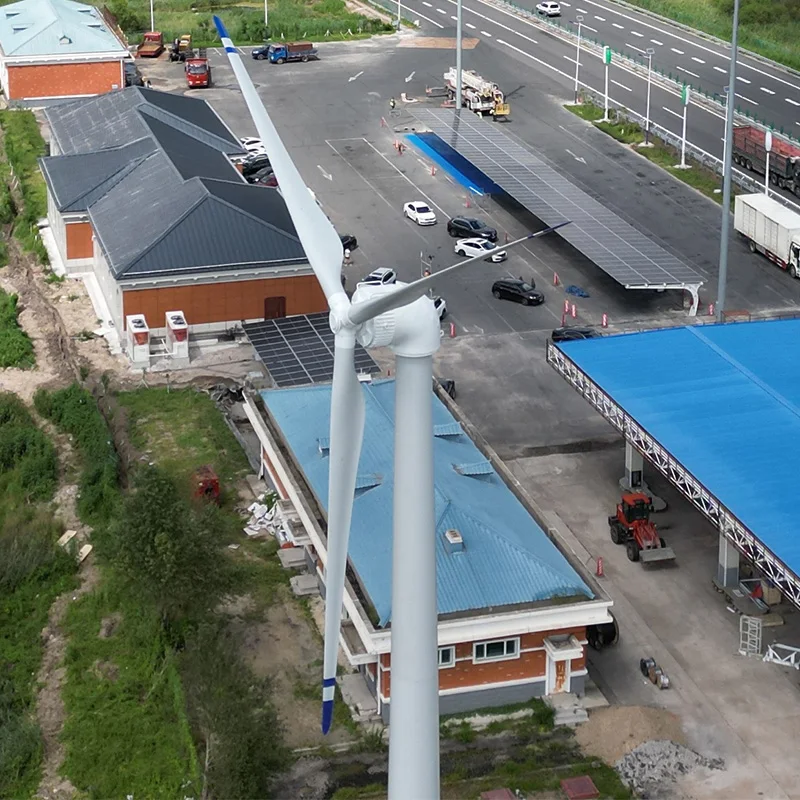

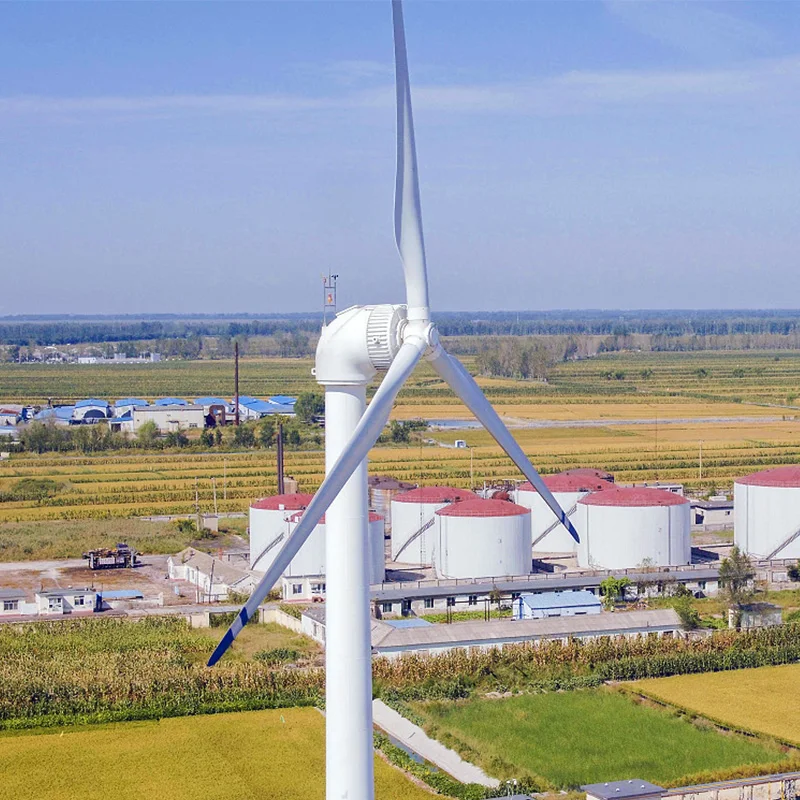

3. The horizontal pitch control wind turbine is suitable for distributed new energy applications in different scenarios such as parks, ports, oil fields, mines, villages, and highway service areas

Technical Parameter

Device model	ES-PC32-150
Type	Permanent magnet direct drive, three blades, horizontal axis, upwind
Rotor diameter	32.2m
Hub height	36m
Tower type	Tubular column
Rated power	150kW, 400VAC, 50Hz/60Hz, 3phase
Power regulation	Pitch control
Rated / Max rotation speed	48rpm / 54rpm
Cut-in wind speed	2.5m/s
Rated wind speed	9.8m/s
Cut-out wind speed	18m/s(10min)，22m/s - 10s
Survival wind speed	52.5m/s
Blade weight / length	3*0.65t / 15.4m
Blade material	Glass fiber - FRP
Nacelle & generator weight	9.0t
Tower weight / height	18.2t / 35m
Generator type	Permanent magnet
Brake system	Aerodynamic brake, Mechanical brake, Electromagnetic brake
Yawing & untwisting	Electric yaw, Auto untwisting
Lightening protection	Lightning receptors for blade tip connected to earth through loop Anemometer and wind vane with separate lightning receptors

Pitch Controlled Wind Turbine 150Kw for Industrial And Commercial Use

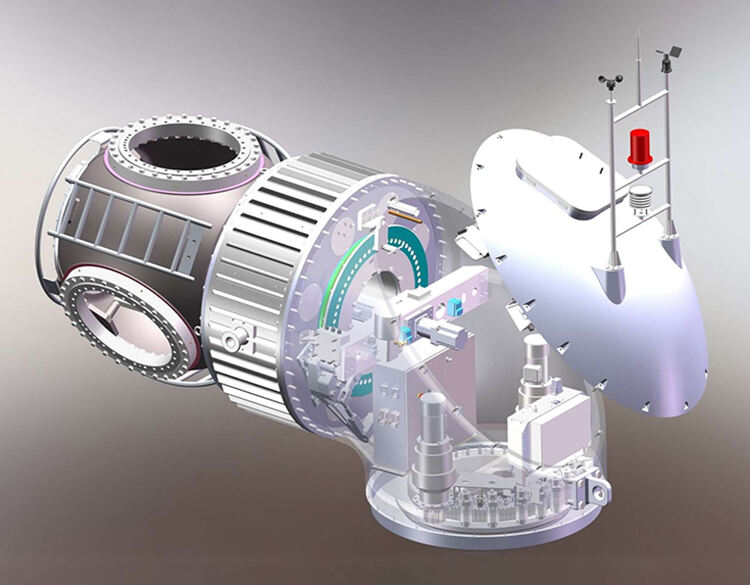

1. This pitch control wind turbine has multi-level protection such as active variable pitch, mechanical brake, electromagnetic brake and active yaw, and the system is highly safe 2. The high-efficiency full-power converter adapted to the low-speed permanent magnet motor is suitable for multi-national power grid systems and has wide system adaptability

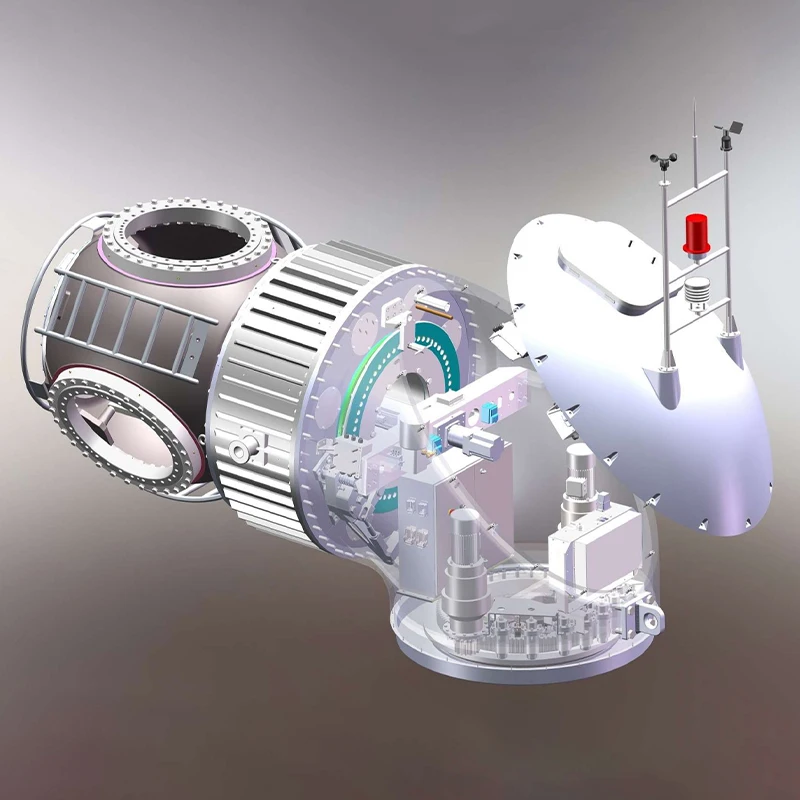

Details Images

Pitch Controlled Wind Turbine 150Kw for Industrial And Commercial Use

1. Directly connected to the 400V low-voltage side, connected to the load distribution system nearby, ready to use, surplus power connected to the grid, and efficient energy transmission 2. The pitch control wind turbine has a complete SCADA monitoring system that can realize real-time monitoring, report statistics, fault diagnosis, and integrated operation and maintenance management
