1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine

Product Description Horizontal Axis wind turbine for home ...
  • Parameter
  • Related products
  • Inquiry
Parameter
Product Description

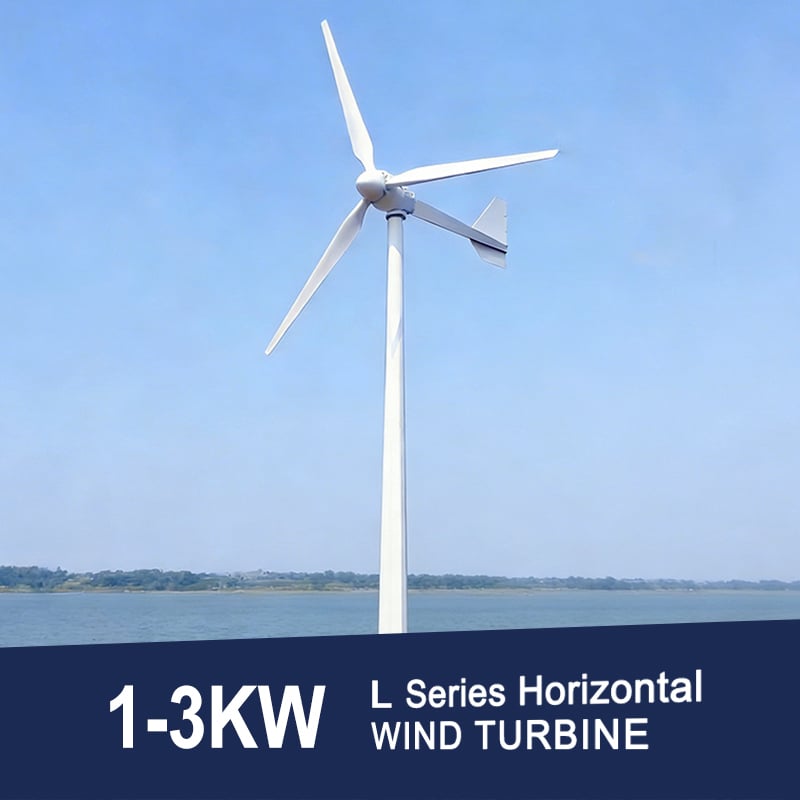

Horizontal Axis wind turbine for home
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine factory
Our horizontal wind turbine have wind alignment devices that can rotate as the wind direction changes. For small horizontal wind generators, this type of wind alignment device uses a tail rudder, while for large wind turbines, a transmission device composed of wind direction sensing elements and servo motors is used.
Technical Parameter
Model
L1000
L1500
L2000
L3000
G5000
G7500
G10K
Rated power
1kw
1.5kw
2kw
3kw
5kw
7.5kw
10kw
Rated voltage
48V/96V/120V/220V/240V
120V/220V/240V/380V
Start-up wind speed
2m/s
2.5m/s
Rated wind speed
11m/s
11m/s
Safe wind speed
≤50m/s
Blade diameter
2.6m
2.8m
3.1/3.2m
4.1m
5.4m
5.8m
6.5m
Blade number
3 pcs
Blade material
Reinforced FRP
Fuselage material
Reinforced die-cast aluminum
Reinforced die-cast aluminum+steel
Magnetic steel material
NdFeB
Generator type
Three-phase AC permanent magnet synchronous generator
Control mode
Electromagnetic brakes
Wind direction adjustment
Automatically adjusts the windward angle
Service life
≥ 20 years
Protection grade
IP54
Net weight
48kg
53kg
58kg
95kg
285kg
295kg
215kg
Gross weight
52kg
57kg
62kg
110kg
315kg
325kg
245kg
Packing size
(cm)
67*48*
26+130
*27*27
67*48*
26+147
*27*27
67*48*
26+162
*27*27
75*37*37+
200*23*32
+74*52*5
90*52*45+
300*42*44
+116*87*5
95*55*61+
285*33*37
+94*42*28
90*52*45+
230*30*38
+48*48*50
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine manufacture
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine factory
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine details

Horizontal Axis wind turbine for home

The casing of the horizontal wind turbine is made of alloy aluminum or A3 steel, with small volume, light weight, beautiful appearance, and low operating vibration. Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance. The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans.
Details Images
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier




Horizontal Axis wind turbine for home

The tail rudder of horizontal wind generator adopts automatic windward and automatic yaw design, usually of straight or folded tail type, with strong typhoon resistance and safe and reliable operation.
The solar wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator.

Optional maximum power tracking intelligent controller, effectively regulating current and voltage.
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine manufacture
Project Cases
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Recommend Products
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
Company Profile
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine manufacture

Jiangsu DHC environmental SI-Tech Co.,Ltd,

Jiangsu DHC Environment Si-Tech Co.,Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine supplier
Packing & Delivery
1KW 2KW 3KW 5KW 10KW Horizontal Wind Turbine manufacture
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


eversaving


Eversaving is proud to introduce our 5kw 10kw 20kw 30kw 50kw 100kw wholesale wind turbine manufacturing price for Europe. Our turbines are made to supply sustainable and cost-effective energy to our customers.


Our 5kw wind turbine is perfect for smaller homes or businesses. It comes with a sleek design and is both simple to install and keep. The 10kw model is great for medium-sized businesses and wind farms. Its durable construction ensures it lasts for a long time.


The 20kw wind turbine is perfect for bigger companies looking for a much more energy effective source. It is made from a blade rotor top-both notch efficient and reliable. The 30kw model has even more power, making it an ideal choice for large commercial applications.


Eversaving provides our 50kw and 100kw wind turbines for also bigger power needs.

 These turbines are designed to supply you with the ultimate in energy to our customers and gratification. They are perfect for large-scale wind farms and commercial applications.


At Eversaving, we manufacture our wind generators using only the standard materials that are highest. Our 5kw 10kw 20kw 30kw 50kw 100kw wholesale wind turbine manufacturing price for Europe are made to final, making certain our customers be given a long-term investment their power solution. Our company is committed to creating environmentally energy friendly, sustainable, and economical.


Our 5kw 10kw 20kw 30kw 50kw 100kw wholesale wind turbine manufacturing price for Europe offer unbeatable value. They are priced to meet the needs of your customers and their spending plans. At Eversaving, every person is believed by us needs access to sustainable and cost-effective power.


If you're looking for a sustainable and economical power, look no further than Eversaving. Our 5kw 10kw 20kw 30kw 50kw 100kw wholesale wind turbine manufacturing price for Europe is the domiciles choice that are perfect businesses, and wind farms of all sizes.

 We are committed to providing our clients with utilizing the greatest quality products and dependable solutions. Today contact us to learn more about our wind generators and exactly how they could gain your business.
