Pitch-Controlled Wind Mill 20Kw Eolic Turbine Generator

Introducing, the Jiangsu DHC’s Pitch-Controlled Windmill Generator 20Kw Wind Turbine, designed for efficient and reliable electricity production. This innovative product harnesses the power of the wind to generate clean and sustainable energy, perfect for residential, commercial, or industrial use.

The Jiangsu DHC’s Wind Turbine features advanced pitch control technology, allowing for precise and efficient operation in varying wind conditions. This ensures optimal energy production and maximum output, even in turbulent weather. With a power output of 20Kw, this wind turbine is capable of meeting the energy needs of a wide range of applications.

Constructed with high-quality materials and components, the Jiangsu DHC’s Wind Turbine is built to withstand the elements and last for years to come. The robust design and durable construction make this wind turbine a reliable and cost-effective choice for renewable energy generation.

Easy to install and maintain, the Jiangsu DHC’s Wind Turbine is designed for hassle-free operation and minimal downtime. With its user-friendly interface and intuitive controls, this wind turbine is suitable for both novice and experienced users alike. The low maintenance requirements and long service life make this product a convenient and practical choice for renewable energy systems.

In addition to its performance and reliability, the Jiangsu DHC’s Wind Turbine is also environmentally friendly, producing zero emissions and reducing reliance on fossil fuels. By harnessing the power of the wind, this wind turbine helps reduce carbon footprint and promote sustainability.

Whether you are looking to reduce energy costs, decrease environmental impact, or simply embrace renewable energy solutions, the Jiangsu DHC’s Pitch-Controlled Windmill Generator 20Kw Wind Turbine is the perfect choice. With its advanced technology, reliable performance, and eco-friendly design, this wind turbine offers a smart and sustainable solution for electricity production. Invest in the future of energy with the Jiangsu DHC’s Wind Turbine and start reaping the benefits of clean and renewable power today

Product Description

Pitch-Controlled Windmill Generator 20Kw Wind Turbine for Electricity Production

High safety-- realized all-weather continuous unattended operation.

1. By pitch-controlled regulation, the rotational speed of wind turbine is controlled to ensure the continuous operation under severe wind conditions

2. Adopting redundant control strategy makes the pitch control wind turbine safer

Technical Parameter

Model	ES-PC-20K
Structural style	Horizontal axis, upwind
Wind rotor diameter	9.8m
Blade material and Qty	GFRP/3
Rated power	20kw
Rated wind speed	12m/s
Rated RPM	180rpm
Start-up wind speed	2.5m/s
Cut-in wind speed	3m/s
Cut-out wind speed	25m/s
Extreme wind speed	59.5m/s
Operating temperature	-25-+50℃
Protection grade	IP54
Weight	1210kg
Lifespan	20 year
Generator	Three-phase AC PMSG
Generator insulation level	F
Speed regulation way	Mechanical centrifugal pitch-controlled
Way of catch the wind direction	Active yaw
Protection in severe wind conditions	Pitch controlled and intelligent brake shutdown
Braking shutdown measure	Pitch controlled first, then mechanical brake

Pitch-Controlled Windmill Generator 20Kw Wind Turbine for Electricity Production

World's leading technology--Intelligent control and strong expand-ability

1. Combing the world’s excellent wind power control technology and independentR&D mechanical centrifugal pitch-controlled technology

2. Well matched with all kinds of famous-brand converter

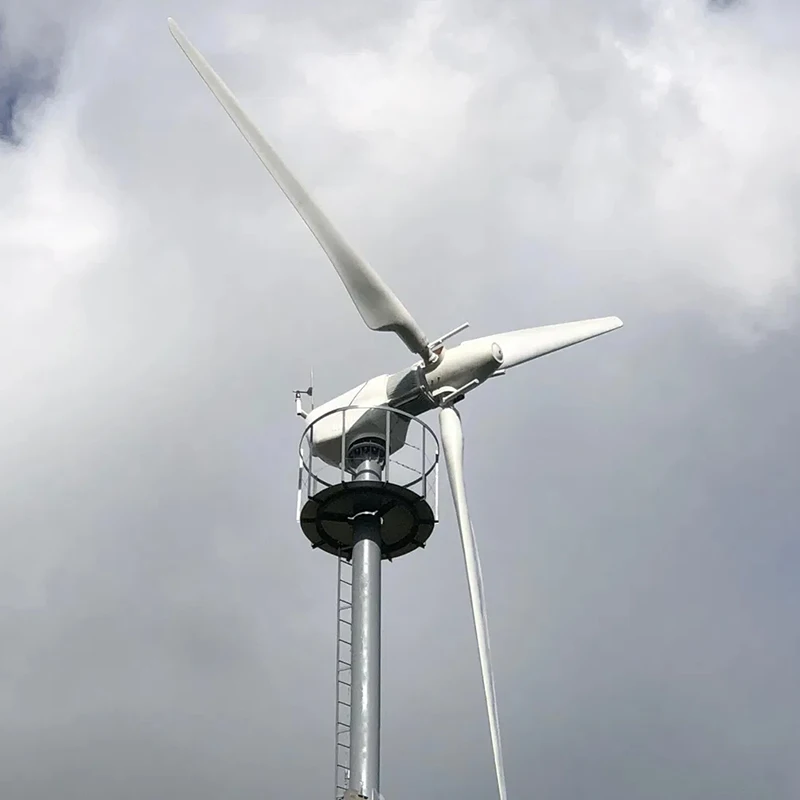

Details Images

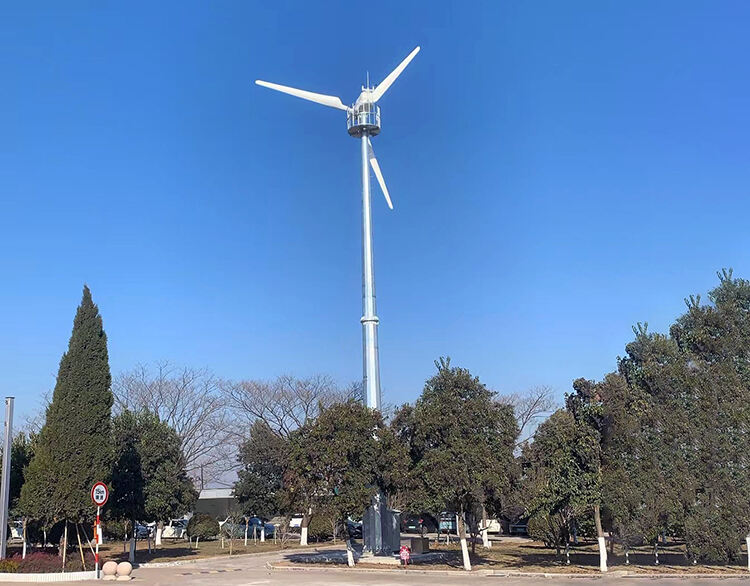

Pitch-Controlled Windmill Generator 20Kw Wind Turbine for Electricity Production

High electricity production-- With pitch controlled regulation, more power generation 1. Above rated wind speed, the blade pitch angle is passively regulated with continuous full power output 2. The working wind speed interval is larger with 3-25m/s

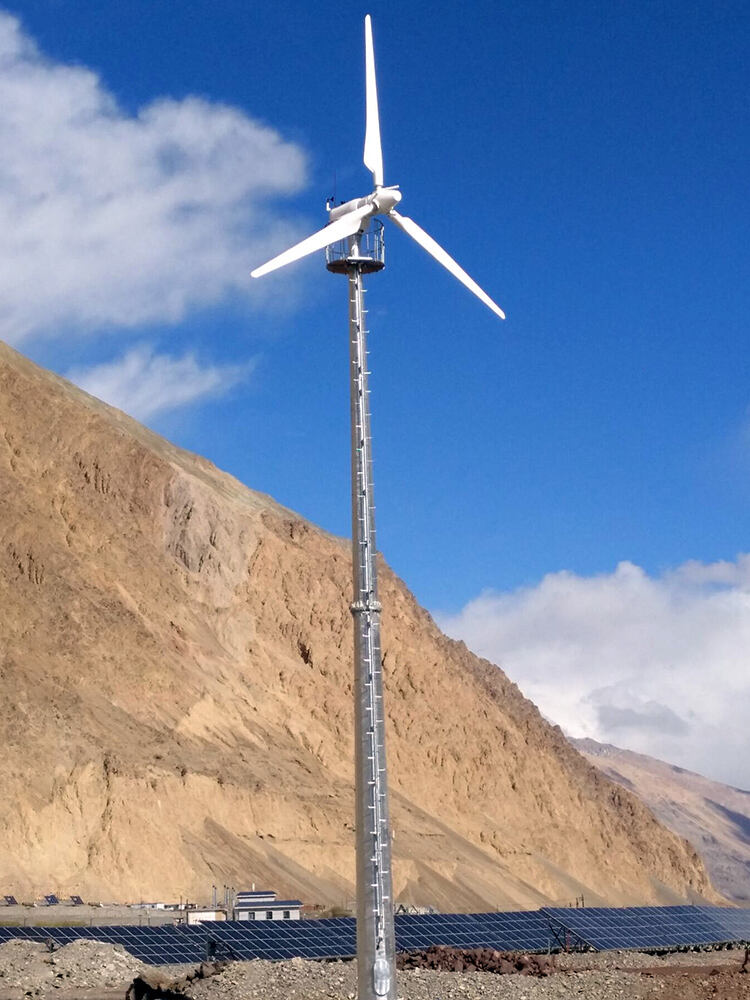

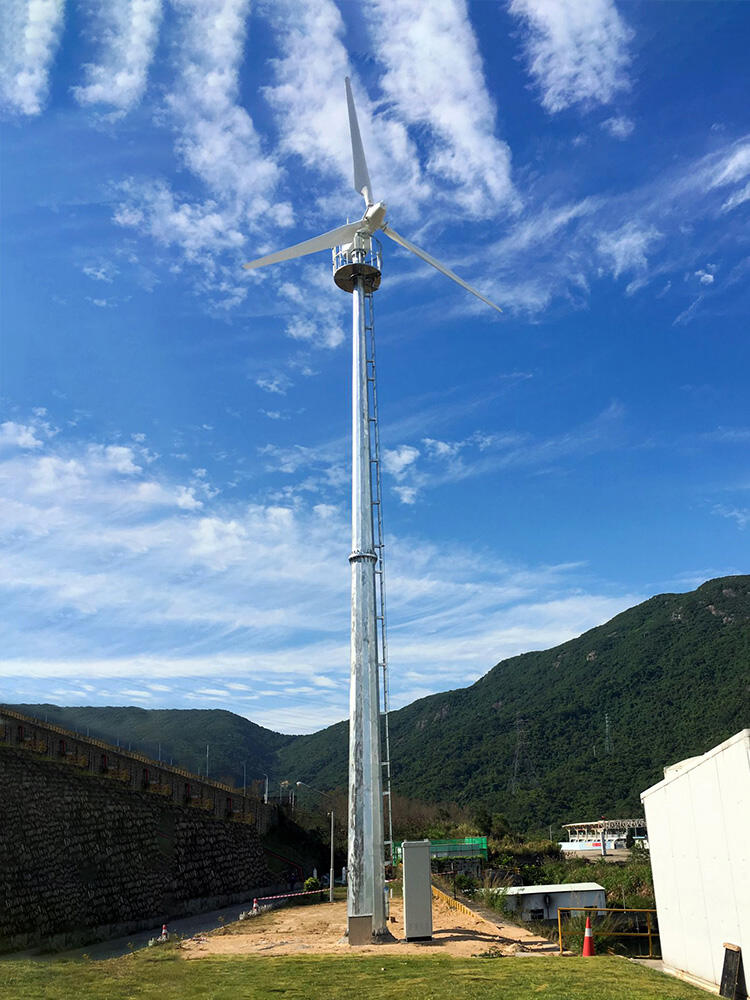

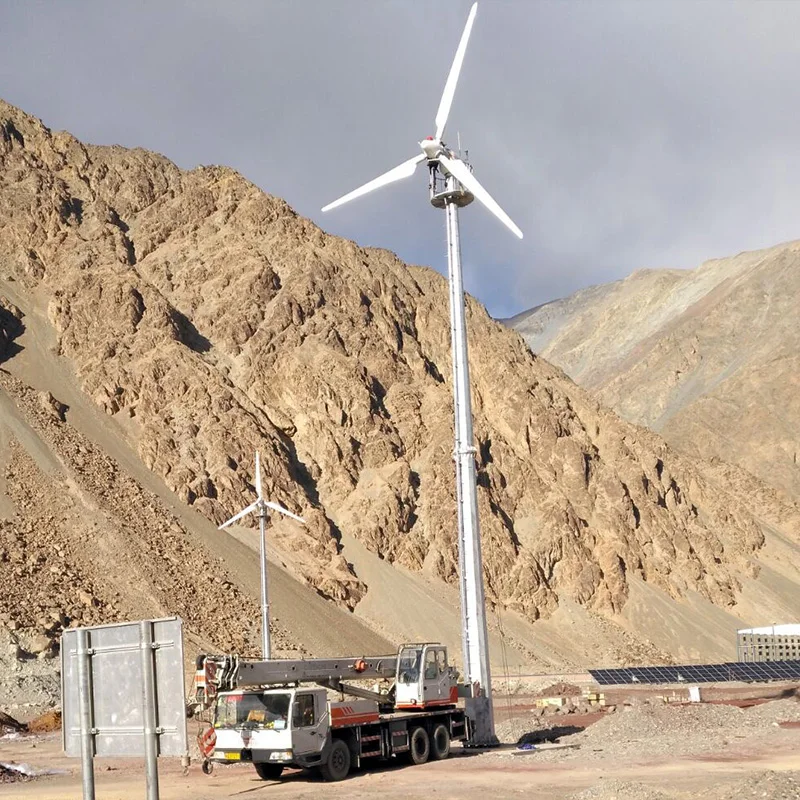

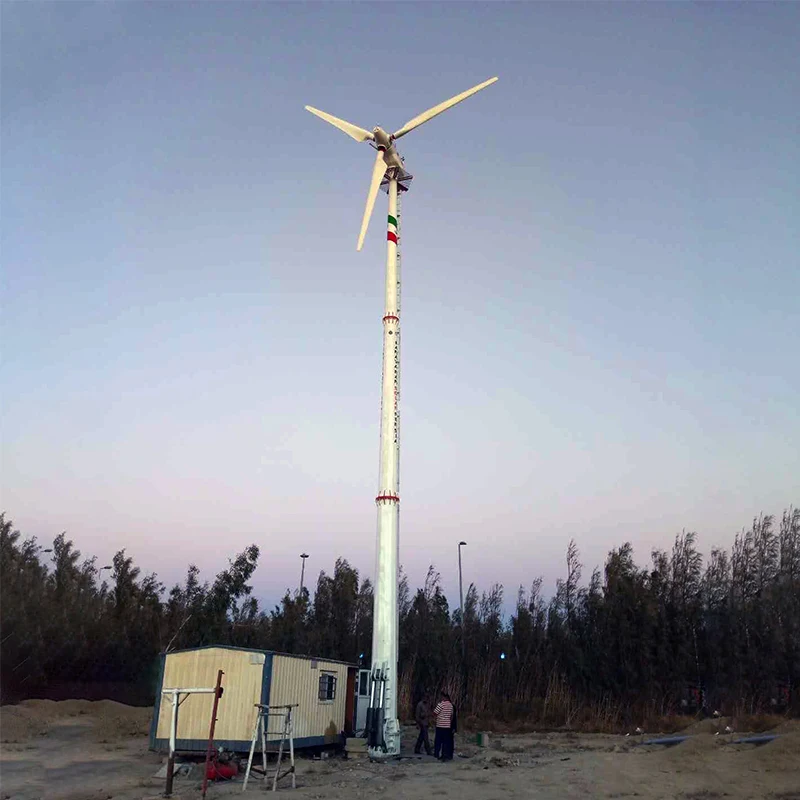

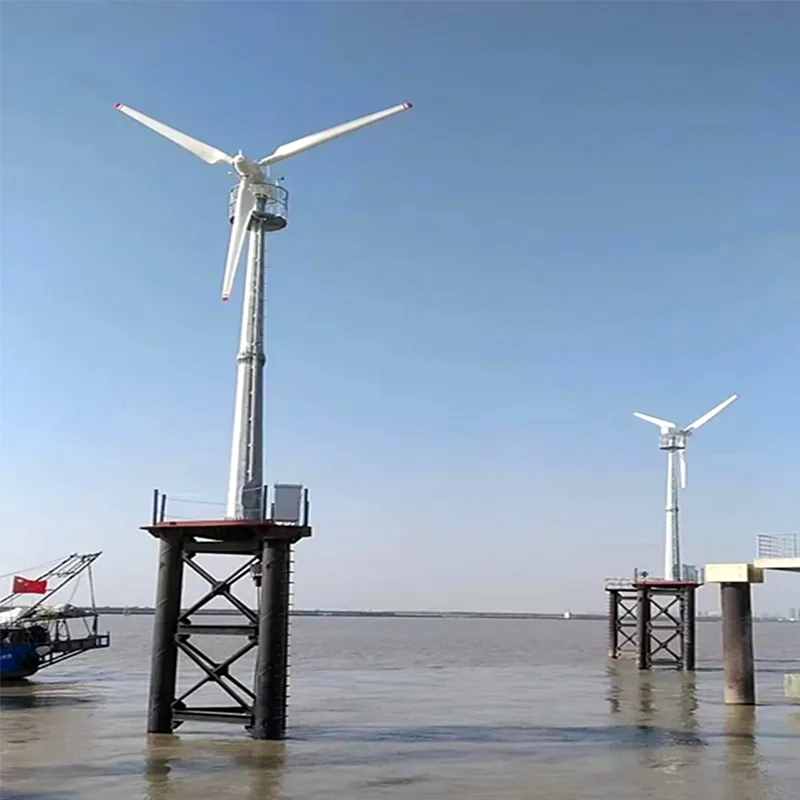

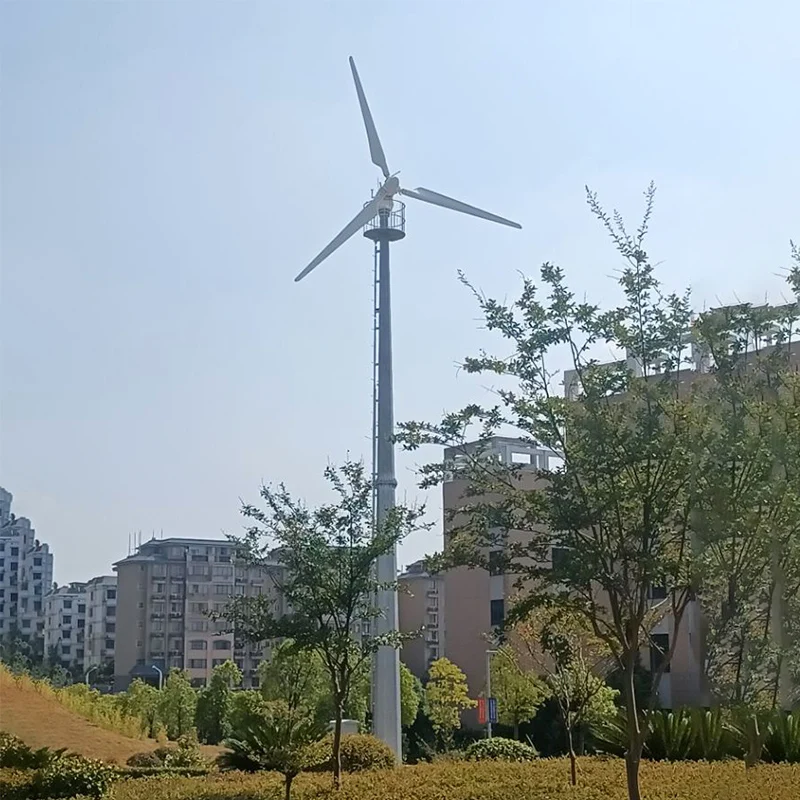

Project Cases

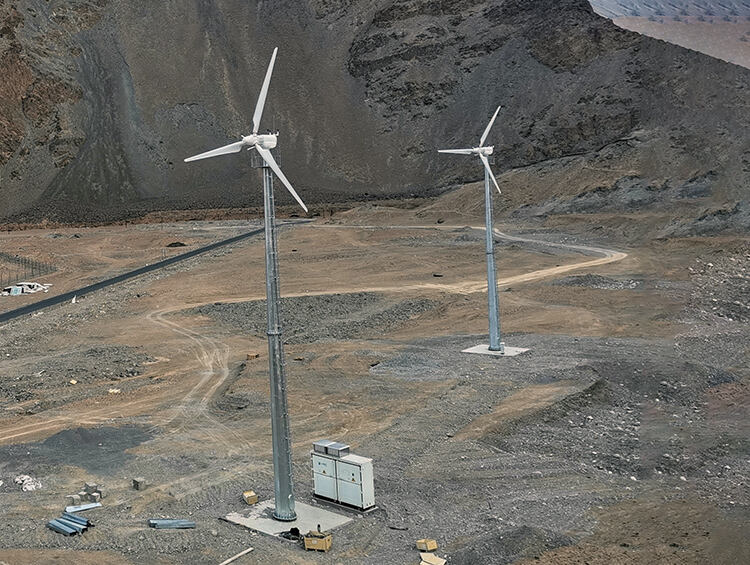

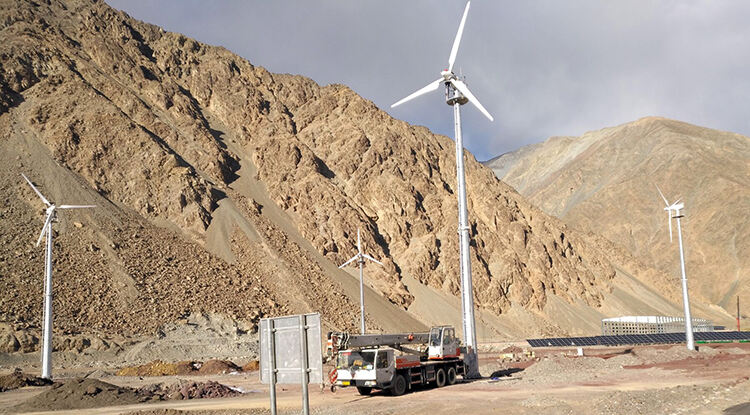

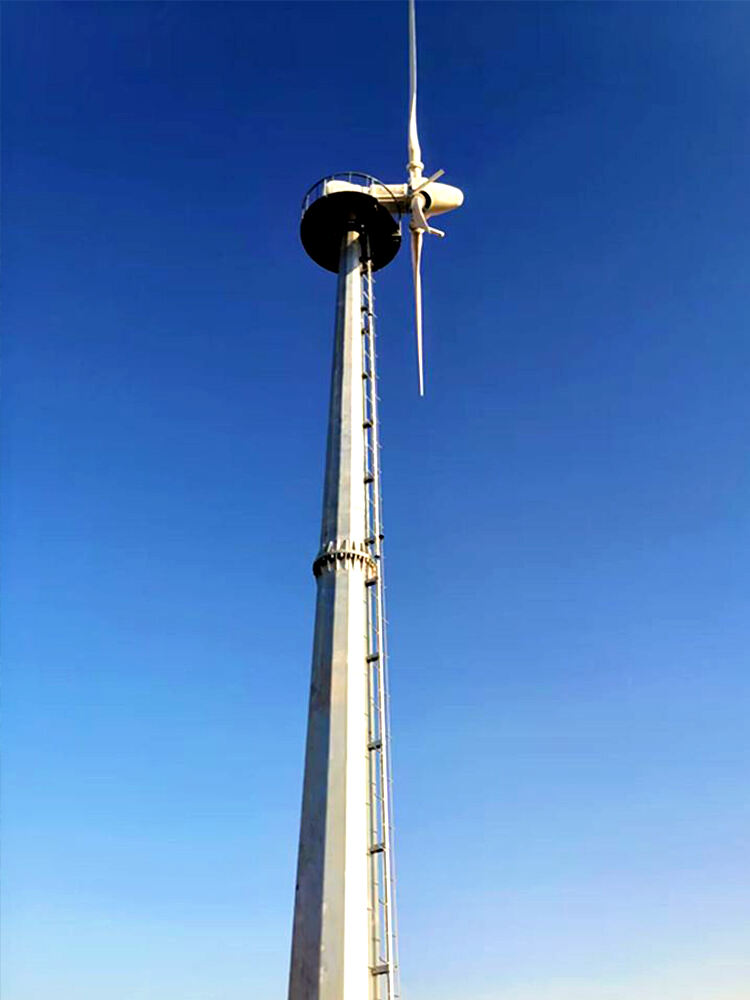

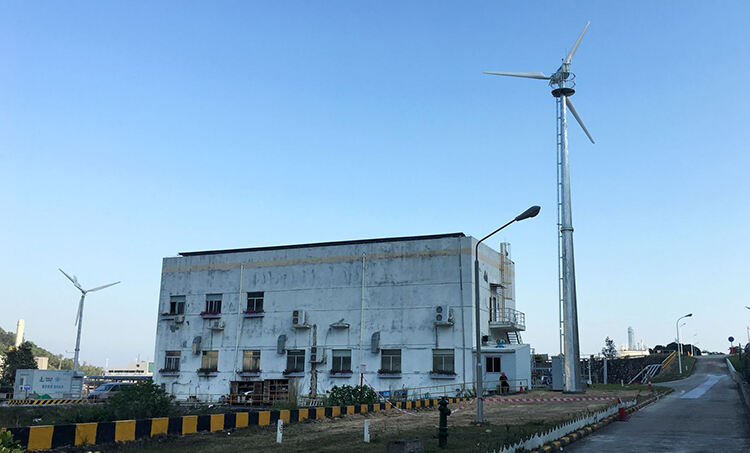

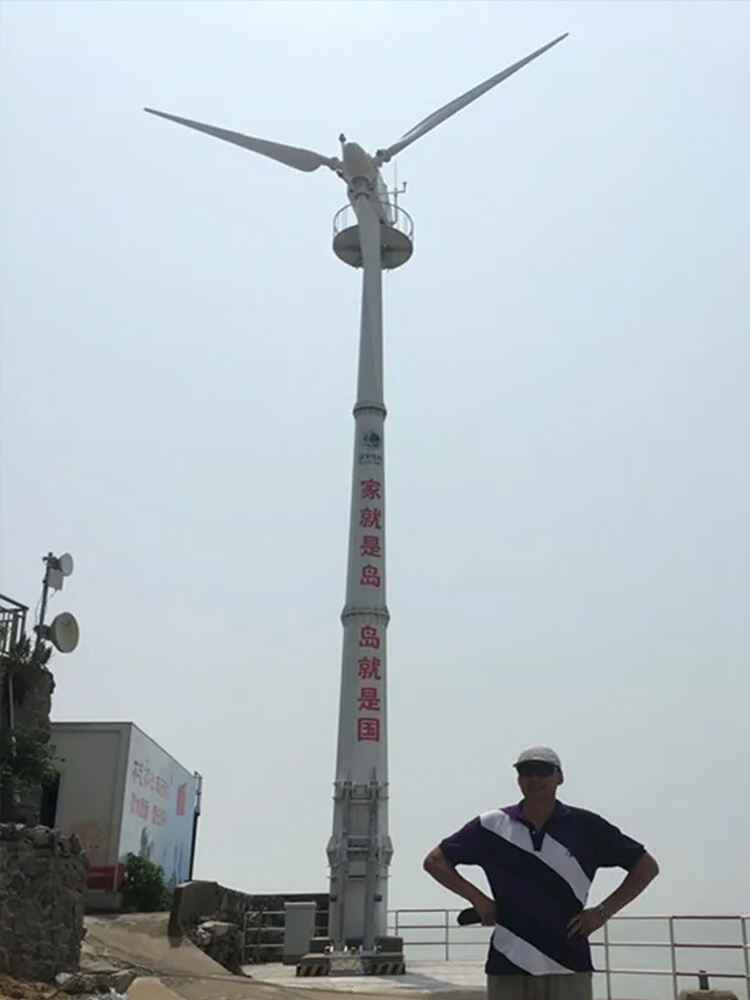

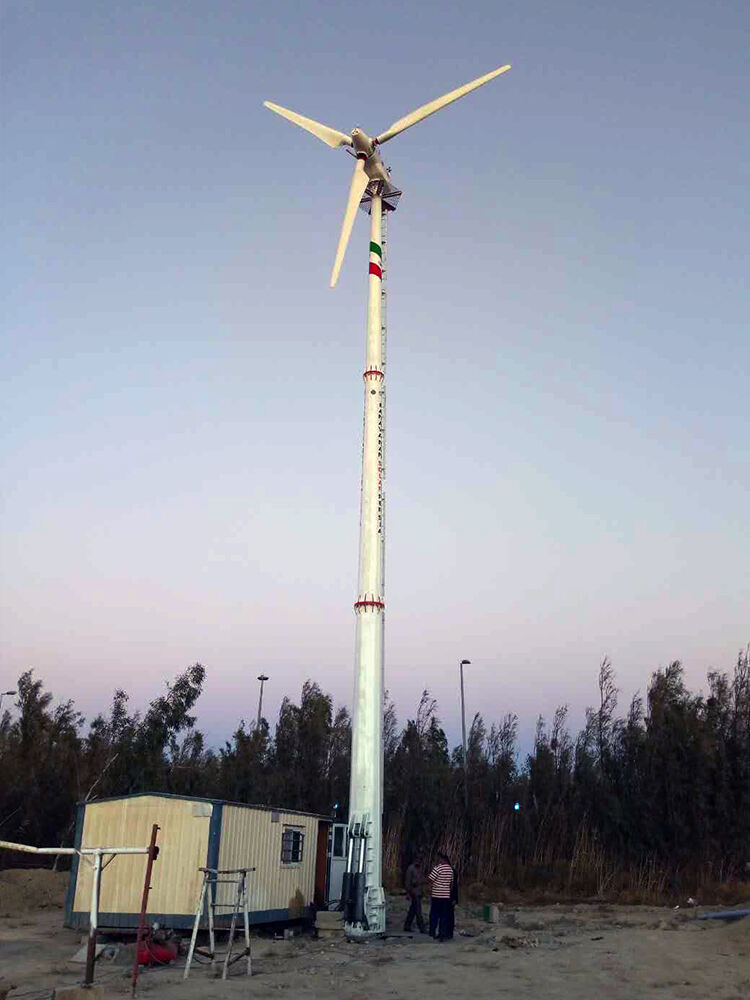

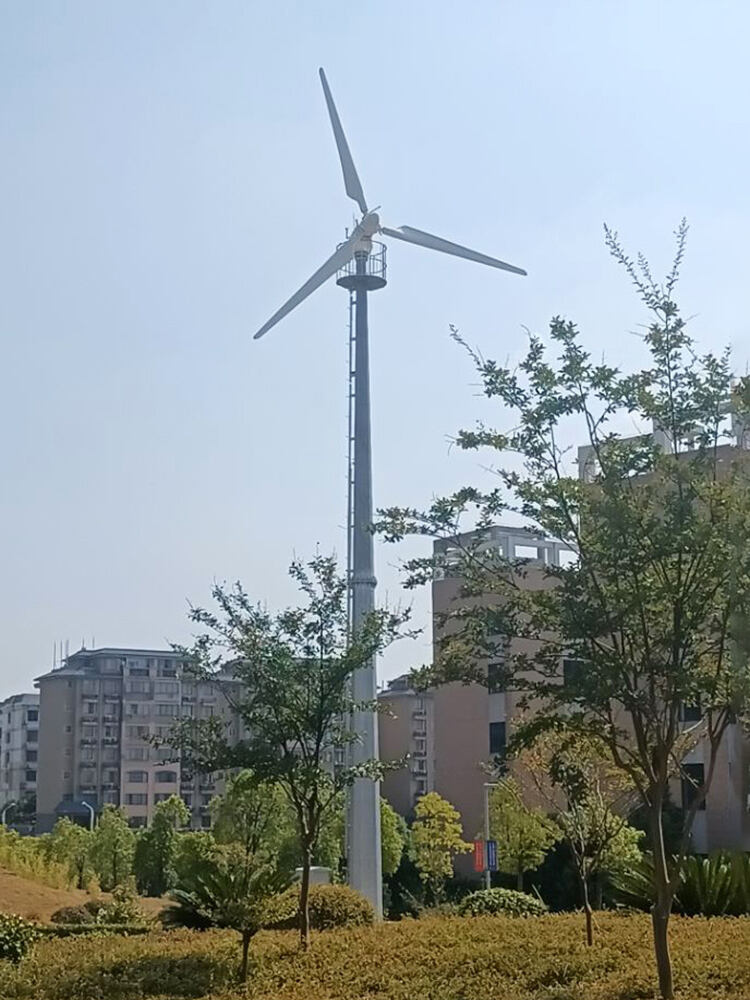

Project Case Display
