3Kw - 30Kw Turgo Water Turbine Micro Hydroelectric Generator

3Kw - 30Kw Turgo Water Turbine Micro Hydroelectric Generator

Single Nozzle Turgo Turbine Technical ParametersP/kwHead/mFlow m3/sMinal Inlet Pipe Inner Dia./mmSuggested Head/m3.0kw15-70m0.003-0.015no less than 5040m10-60m0.005-0.017no less than 6530 10-50m0...

Inquiry

Parameter
Related products
Inquiry

Parameter

Single Nozzle Turgo Turbine Technical Parameters
P/kw	Head/m	Flow m3/s	Minal Inlet Pipe Inner Dia./mm	Suggested Head/m
3.0kw	15-70m	0.003-0.015	no less than 50	40m
	10-60m	0.005-0.017	no less than 65	30
	10-50m	0.008-0.025	no less than 80	20
5.0kw	10-50m	0.008-0.025	no less than 80	40m
	10-40m	0.011-0.033	no less than 100	30
	10-40m	0.014-0.042	150	20
8.0kw	10-70m	0.008-0.025	no less than 80	60m
	10-70m	0.011-0.033	no less than 100	45
	10-70m	0.014-0.045	150	30
10.0kw	10-70m	0.011-0.033	no less than 100	60m
	10-70m	0.011-0.033	150	40
	10-70m	0.015-0.055	150	30
15kw	10-100m	0.015-0.055	150	50
15kw	10-100m	0.025-0.11	200	30
20kw	10-100m	0.025-0.11	150	50
20kw	10-100m	0.03-0.15	200	30
30kw	10-100m	0.025-0.11	200	50
30kw	10-100m	0.03-0.15	250	30


Product Overview

The turgo water turbine is a type of impulse turbine and is widely used in small-scale hydroelectric power generation scenarios with medium and low water heads and medium to small flow rates. It uses the kinetic energy of water flow to drive the rotation of the runner. After the water flow is accelerated through the nozzle, it impacts the runner blades at a certain angle to complete the energy conversion.


Core Advantages

The turgo water turbine micro hydroelectric generator has a simple structure, mainly consisting of a nozzle, runner, casing, and main shaft. It does not require complex water diversion and guiding structures, and has a small overall volume, making it convenient for transportation and installation.

The turgo water turbine micro hydroelectric generator has a high energy conversion efficiency and can efficiently utilize the water energy resources of medium and low water heads. Its application range is very wide, with power ranging from 1kw to 30kw. Larger power can be customized. It has a simple structure and few wear parts, so the later maintenance is relatively simple and convenient.

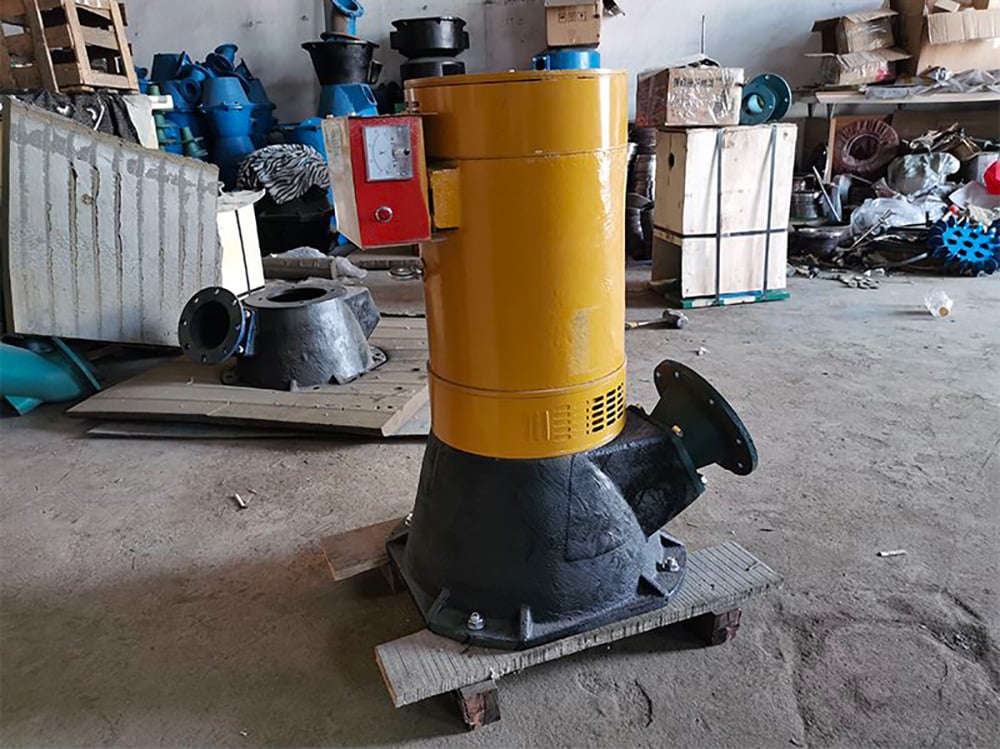

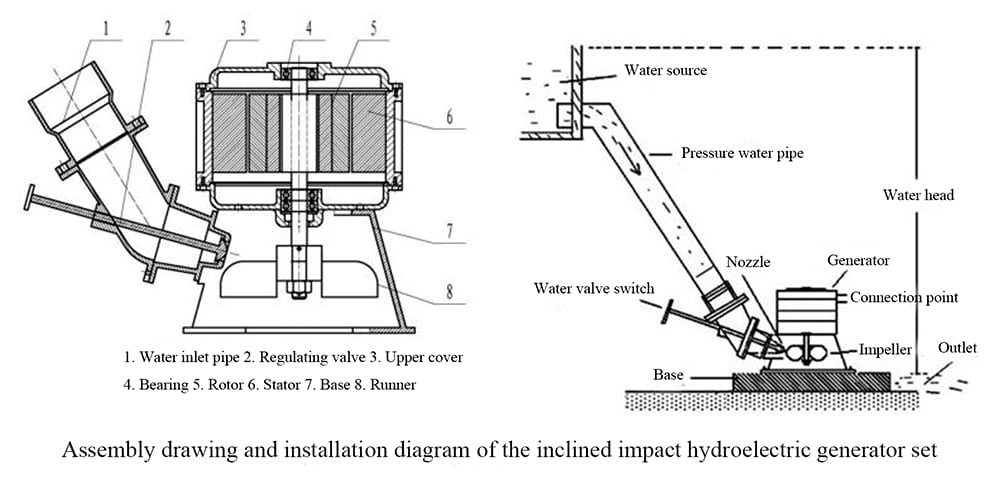

详情3.jpg 详情4安装.jpg

Application Scenarios

The turgo water turbine micro hydroelectric generator is particularly suitable for installing and generating electricity in remote areas with abundant water resources. In rural and mountainous areas, by utilizing the water energy resources of streams and small rivers, a micro hydroelectric generator can be installed to ensure daily electricity supply and solve the problem of unstable power supply. Moreover, the turgo water turbine can also be used for industrial recycled water power generation, improving the efficiency of energy utilization.

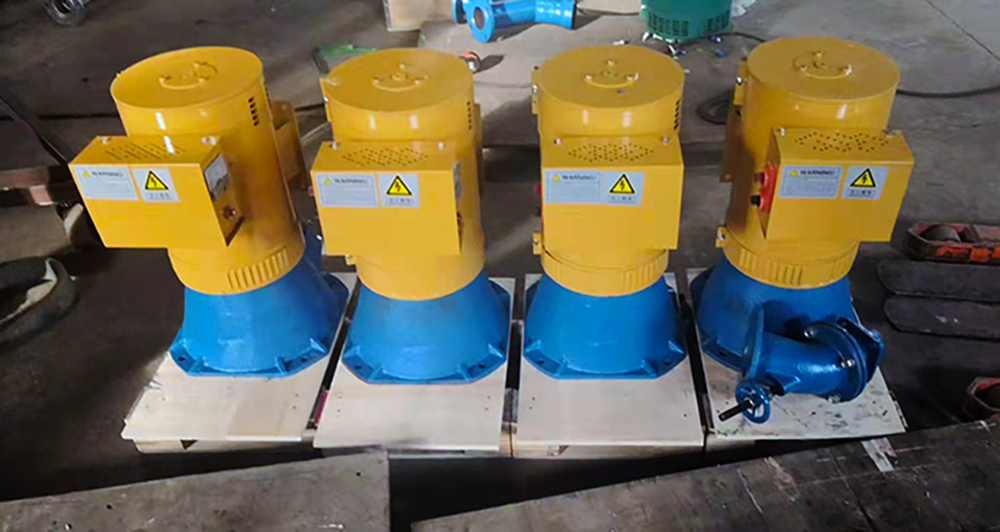

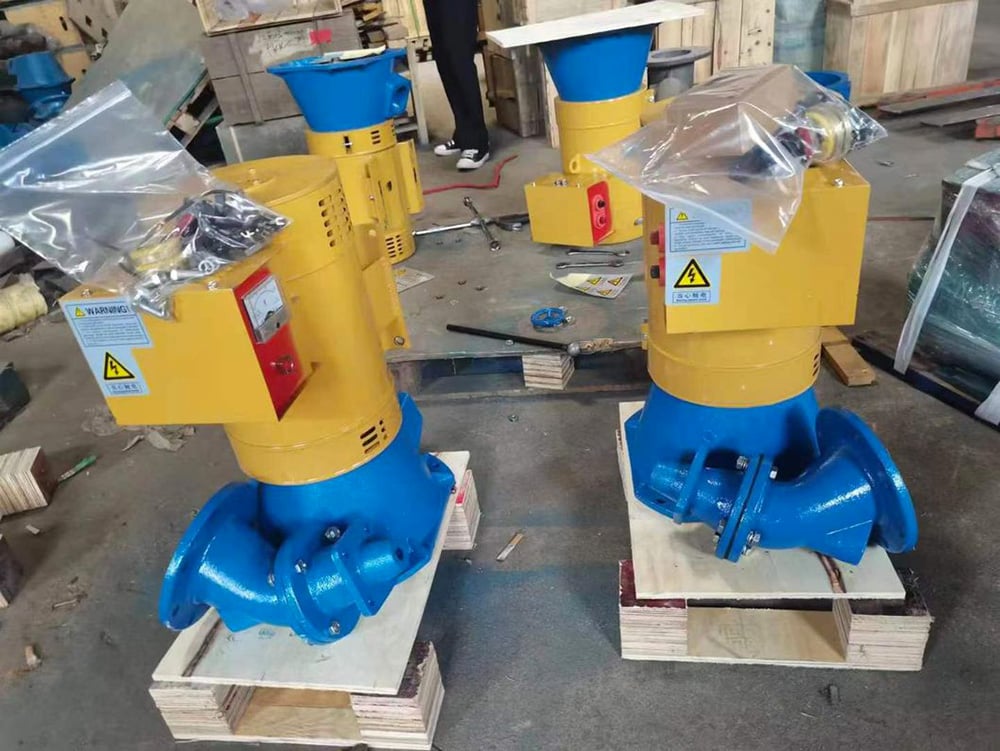

详情5.jpg 详情6.jpg
