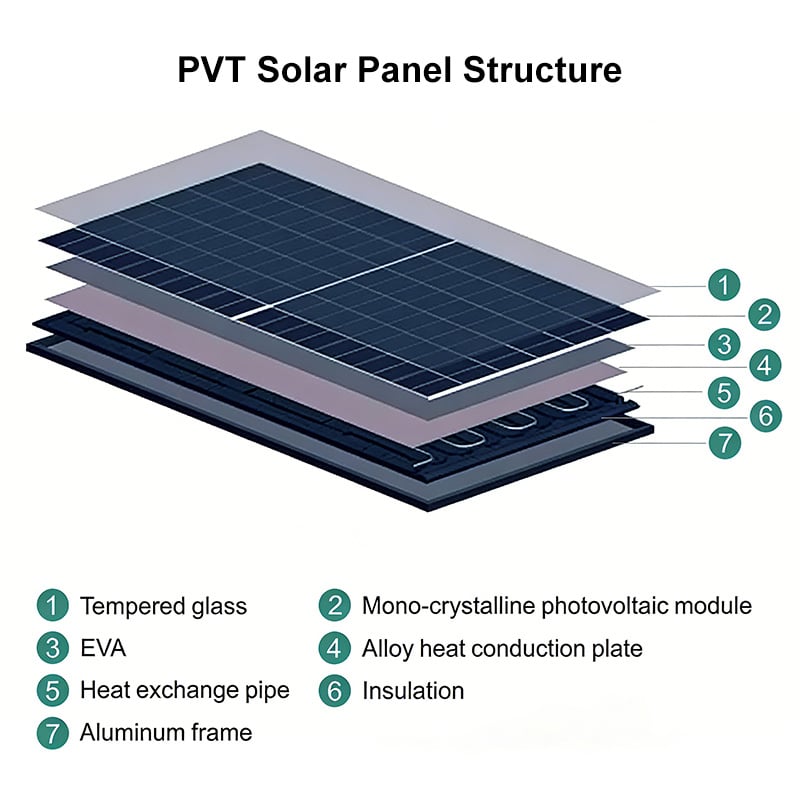

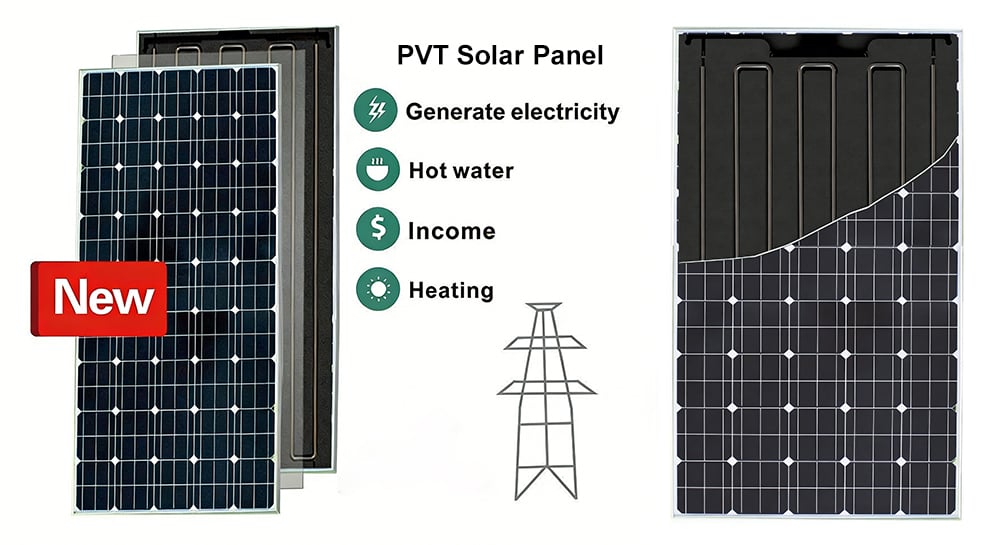

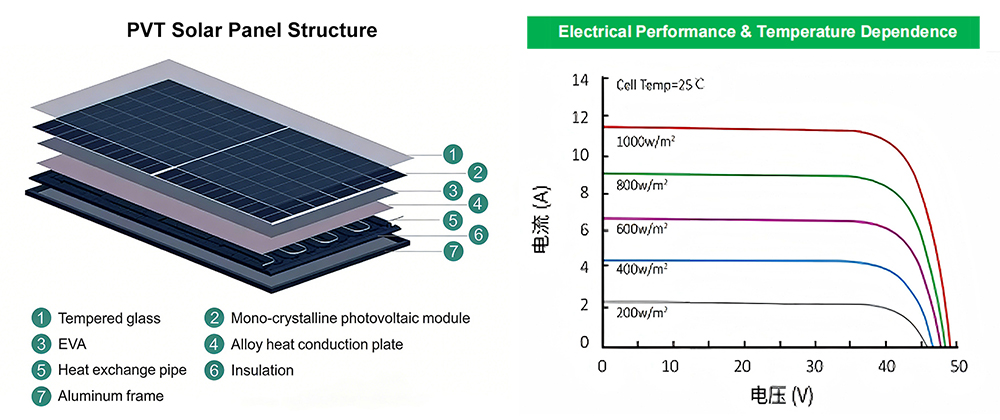

The PVT solar panel is a new type of photovoltaic module that can efficiently utilize solar energy. Besides absorbing sunlight for power generation like ordinary photovoltaic panels, it also has a dedicated heat exchange structure that can recover the residual heat generated during its operation while generating electricity.

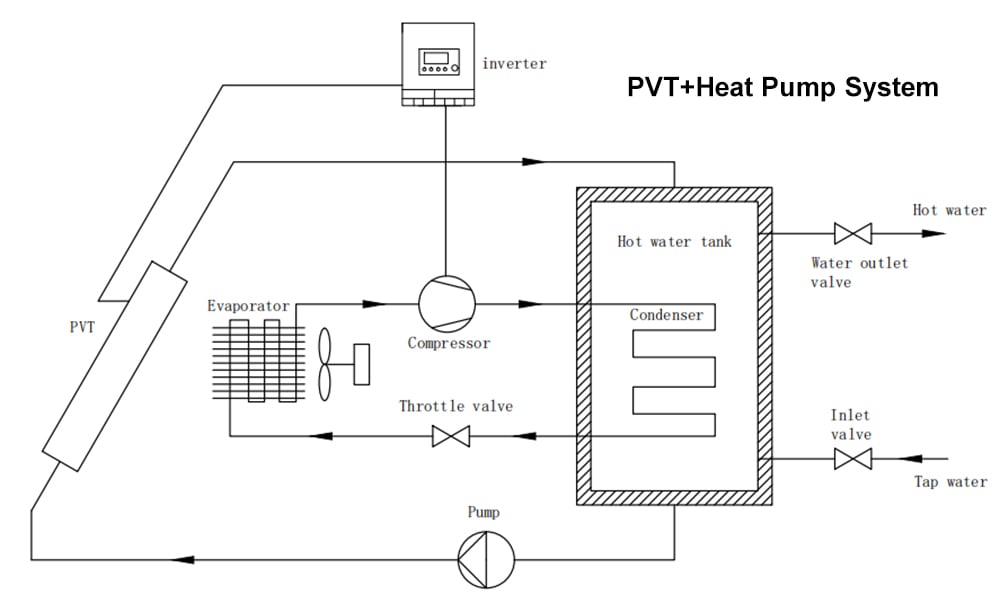

PVT solar panel not only can be used for self-consumption to meet the daily electricity needs of the household, but can also be combined with a heat pump to produce hot water and heat sources, achieving winter heating and domestic water supply. It has strong practicality.
| STC | |
| Module Type | ES-PVT600 |
| Maximum Power (Pmax) | 35.44V |
| Maximum Power Current (lmp) | 16.93A |
| Open-circuit Voltage (Voc) | 43.77V |
| Short-circuit Current (lsc) | 17.83A |
| Module Efficiency STC (%) | 21.20% |
| Operating Temperature | -40℃~+85℃ |
| Maximum System Voltage | 1000/1500VDC(IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0~+3% |
| Temperature Coefficients of max | -0.35%/℃ |
| Temperature Coefficients of Voc | -0.29%/℃ |
| Temperature Coefficients of lsc | 0.048%/℃ |
| Nominal Operating Cell Temperature(NOCT) | 15±2℃ |
| Mechanical Characteristics | |
| Cell Type | Mono Perc 210 *105mm |
| No. of Half-cells | 120(6x20) |
| Dimensions | 2172x1303x35mm |
| Weight | 29KGS |
| Front Glass | 3.2mm Anti-Reflection Coating, HighTransmision, Low lron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP67 Rated |
| Output Cables | TUV 1x4.0mm2 |
| Packaging Configuration | 26pcs/pallet(Two pallets=One stack) |
This PVT solar panel integrates photovoltaic and solar thermal functions, thus its overall utilization rate of light is twice as high as that of ordinary photovoltaic panels. It is made of waterproof and corrosion-resistant materials, and after installation, it requires minimal maintenance. The operation and maintenance costs are extremely low, and the service life is very long.

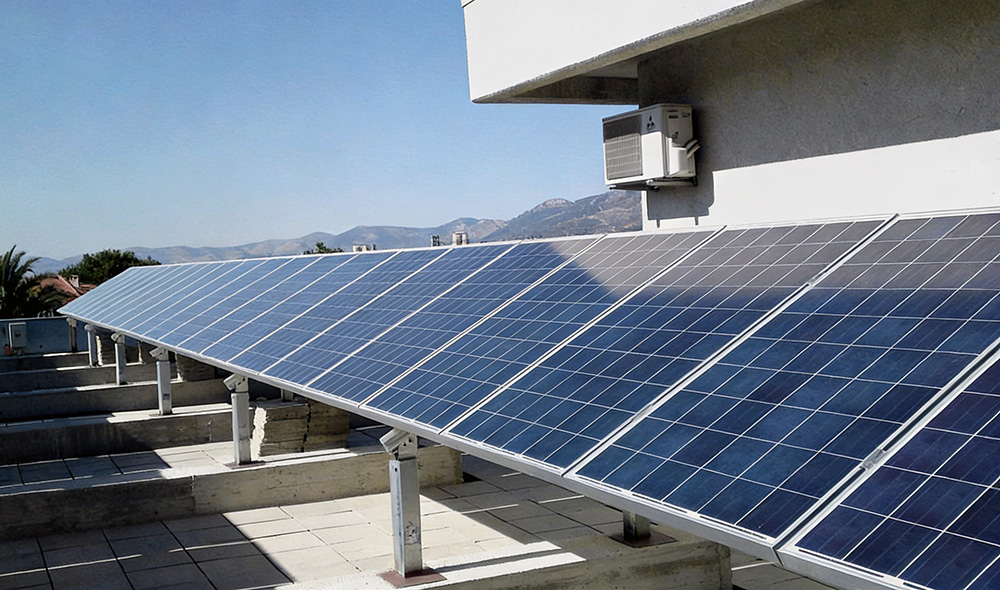

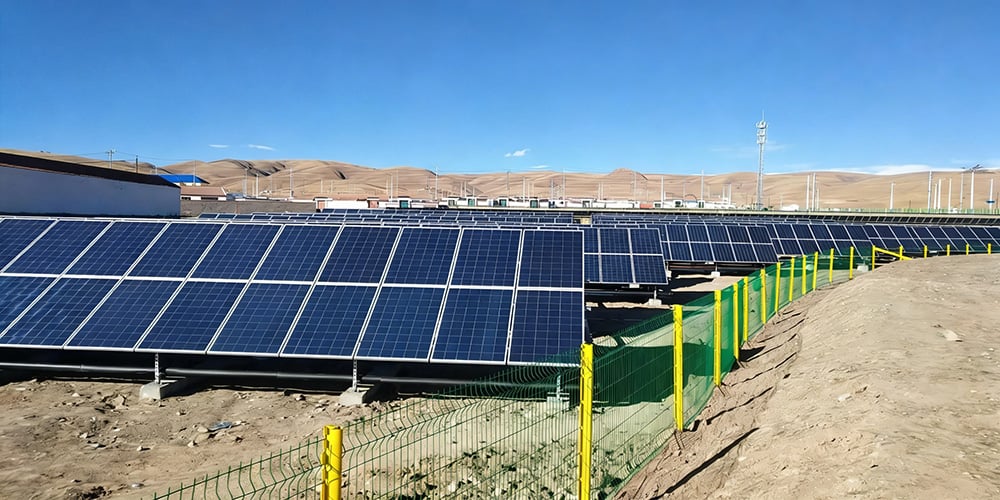

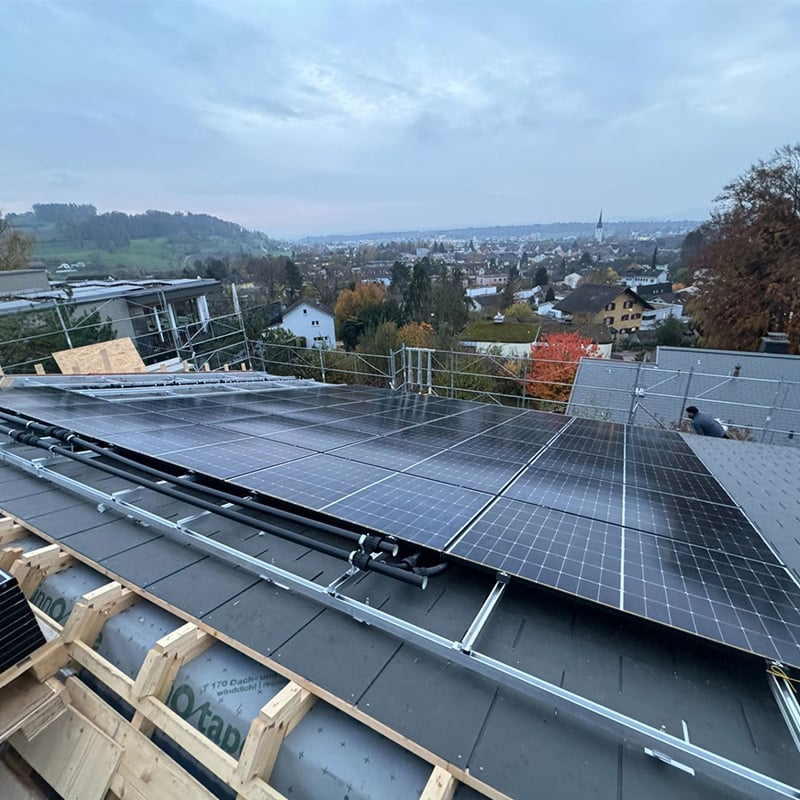

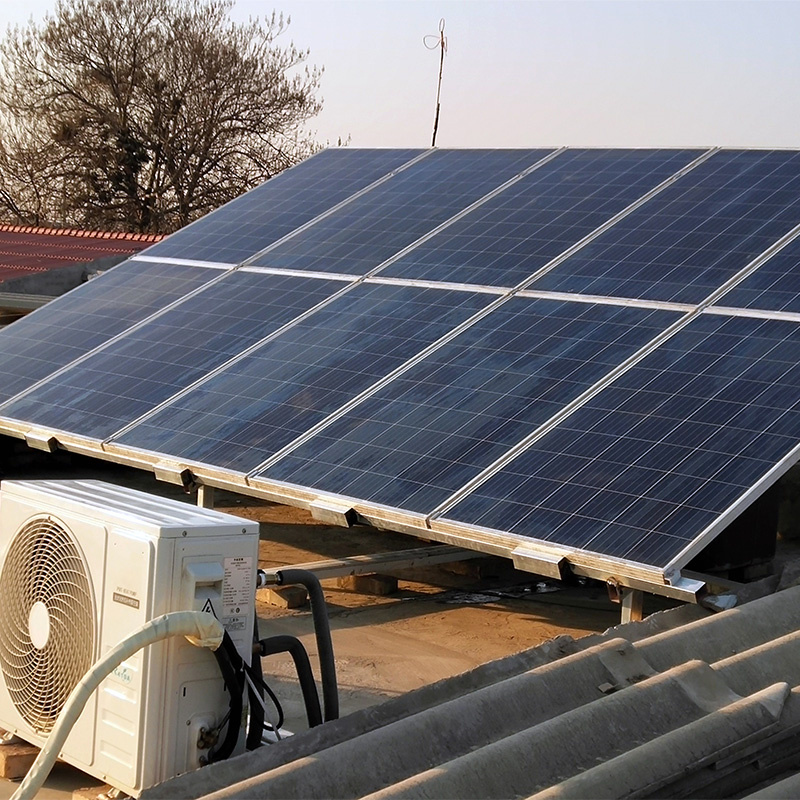

The installation position of the PVT solar panel is very flexible and it doesn't have specific requirements for the location. During actual installation, it can be placed on the ground or on the roof, depending on the actual situation of the customer. Whether it's a flat roof or a sloping roof, it can be adapted to and does not occupy extra space.

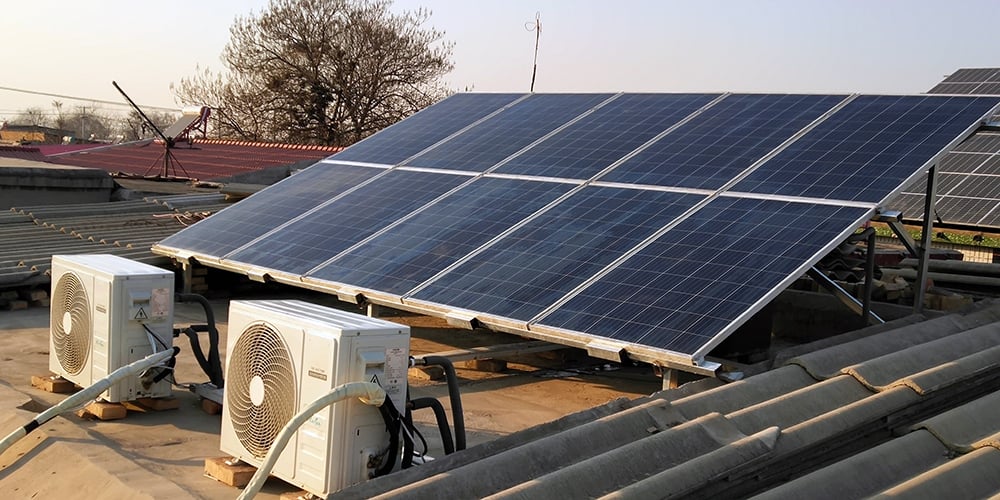

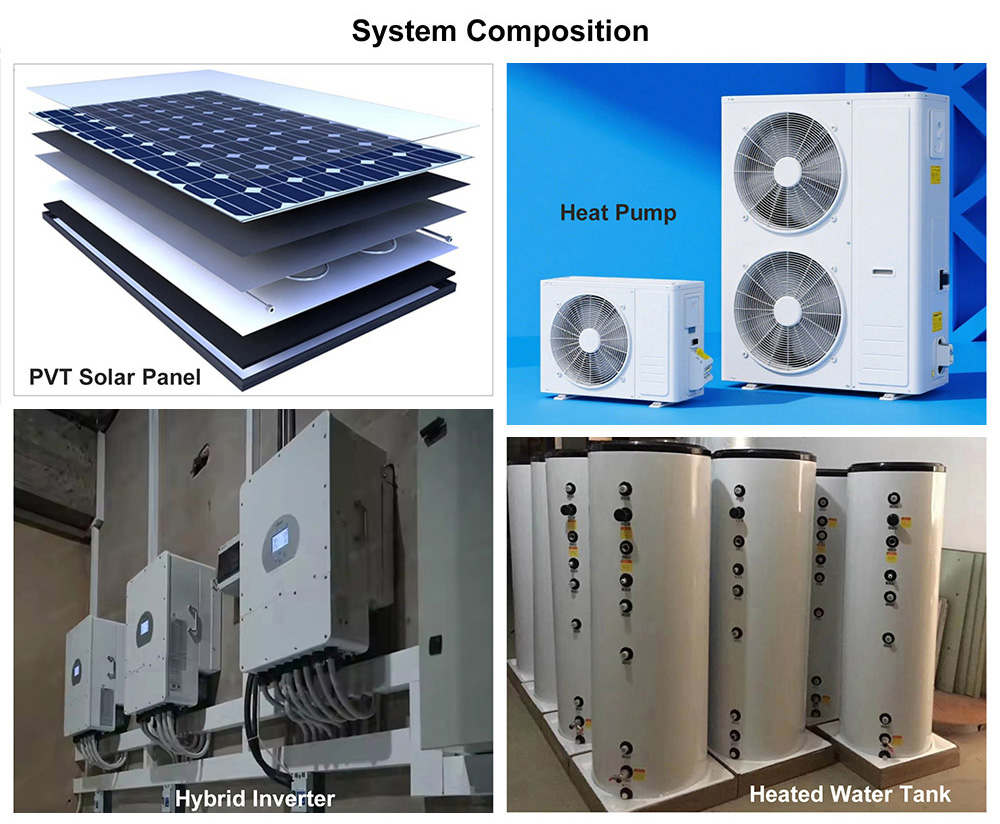

We can determine the quantity of PVT solar panel based on the actual electricity consumption of the customers. These panels can basically meet the daily electricity needs of a household. When used in combination with a heat pump, they can also meet the water supply and heating requirements for daily life in winter, significantly reducing the expenses on electricity and heating.

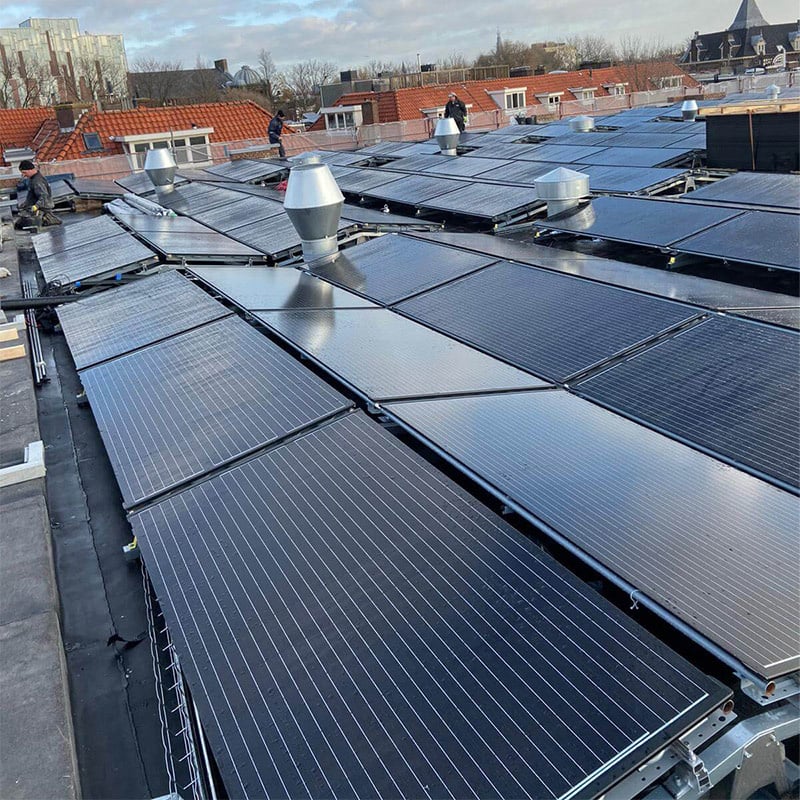

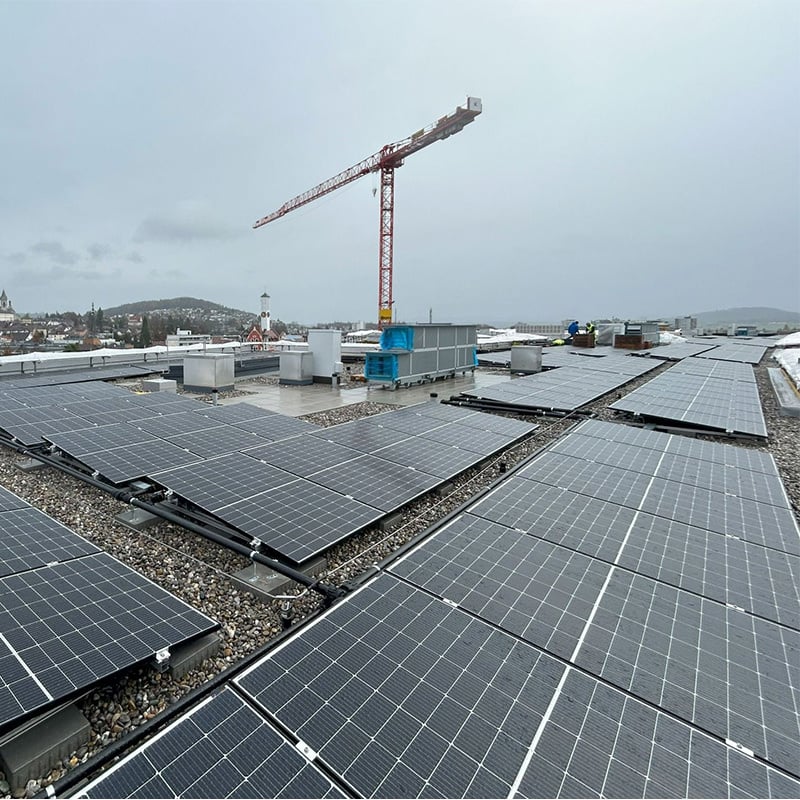

For commercial areas, such as schools, hotels, office buildings, supermarkets, etc., installing PVT solar panel in a centralized manner can significantly reduce monthly electricity expenses in the long run. As long as the local lighting conditions are good, it can also be easily adapted to projects like remote community power supply or agricultural greenhouses. The installation location is flexible and does not require specific sites.
