Horizontal Axis Pitch Control 5Kw Small Wind Mill Turbine

Introducing, the Pitch Control Generator Eolian 5 Kw Small Wind Turbine from Jiangsu DHC - the leading manufacturer in renewable energy solutions. This innovative product is designed to harness the power of wind and convert it into clean, sustainable energy for homes, businesses, and more.

With a compact design and a 5 Kw output capacity, this small wind turbine is perfect for urban and rural environments alike. The advanced pitch control system ensures optimal performance in varying wind conditions, maximizing energy production and efficiency. Whether you're looking to reduce your carbon footprint or simply save on energy costs, this small wind turbine is the perfect solution for you.

The Pitch Control Generator Eolian 5 Kw Small Wind Turbine is easy to install and requires minimal maintenance, making it a hassle-free renewable energy option. Made from high-quality materials, this durable turbine is built to withstand harsh weather conditions and provide reliable energy production for years to come.

With Jiangsu DHC's reputation for quality and reliability, you can trust that you're investing in a product that will deliver results. Their commitment to sustainability and innovation is evident in every aspect of this small wind turbine, from its efficient design to its eco-friendly operation.

Say goodbye to expensive electricity bills and hello to clean, renewable energy with the Pitch Control Generator Eolian 5 Kw Small Wind Turbine from Jiangsu DHC. Take control of your energy future and make a positive impact on the environment with this cutting-edge product.

Don't miss out on this opportunity to switch to clean energy and reduce your carbon footprint. Invest in the Pitch Control Generator Eolian 5 Kw Small Wind Turbine from Jiangsu DHC today and start enjoying the benefits of renewable energy for years to come

Product Description

Pitch Control Generator Eolian 5 Kw Small Wind Turbine Manufacturer

High safety-- realized all-weather continuous unattended operation.

1. Through pitch-controlled regulation, the rotational speed of wind turbine is controlled to ensure the continuous operation under severe wind conditions 2. The whole pitch controlled wind turbine is more secure as its doubly protected by the ASP(auto safety protection) system

Technical Parameter

Model	ES-PC-5K
Structural style	Horizontal axis, upwind
Wind rotor diameter	5.6m
Blade material and Qty	GFRP/3
Rated power	5kw
Rated wind speed	11m/s
Rated RPM	240rpm
Start-up wind speed	2.5m/s
Cut-in wind speed	3m/s
Cut-out wind speed	25m/s
Extreme wind speed	59.5m/s
Operating temperature	-25~50℃
Protection grade	IP54
Weight	420kg
Lifespan	20 year
Generator	Three-phase AC PMSG
Generator insulation level	F
Speed regulation way	Mechanical centrifugal pitch-controlled
Way of catch the wind direction	Tail vane
Protection in severe wind conditions	Pitch-controlled and ASP
Braking shutdown measure	Pitch-controlled then mechanical brake

Pitch Control Generator Eolian 5 Kw Small Wind Turbine Manufacturer

Higher electricity production--with pitch controlled regulation, approx, 30% more power generation 1. Above rated wind speed, the blade pitch angle is passively regulated with continuous full power output 2. The working wind speed interval of this pitch controlled wind turbine is larger with 3-25m/s

Details Images

Pitch Control Generator Eolian 5 Kw Small Wind Turbine Manufacturer

1. This pitch controlled wind turbine is easy to install, has low maintenance costs, and delivers real power output

2. Equipped with tilt-up tower, the maintenance of wind turbines is simple and cost-effective

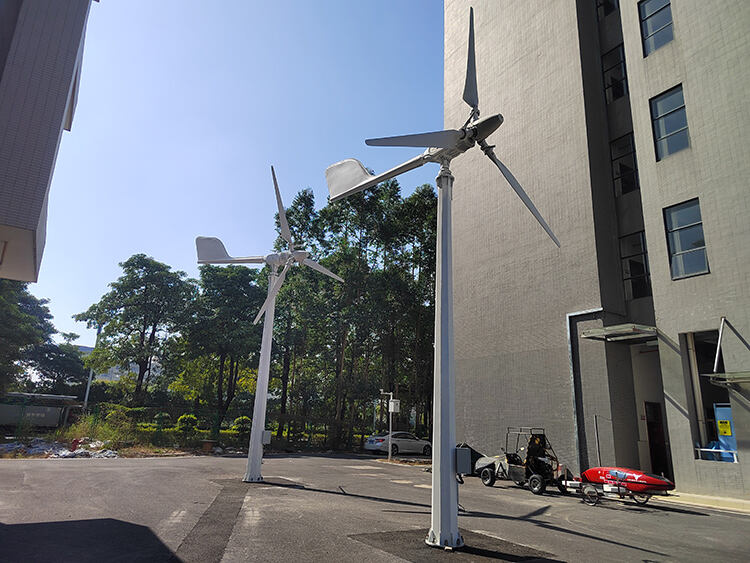

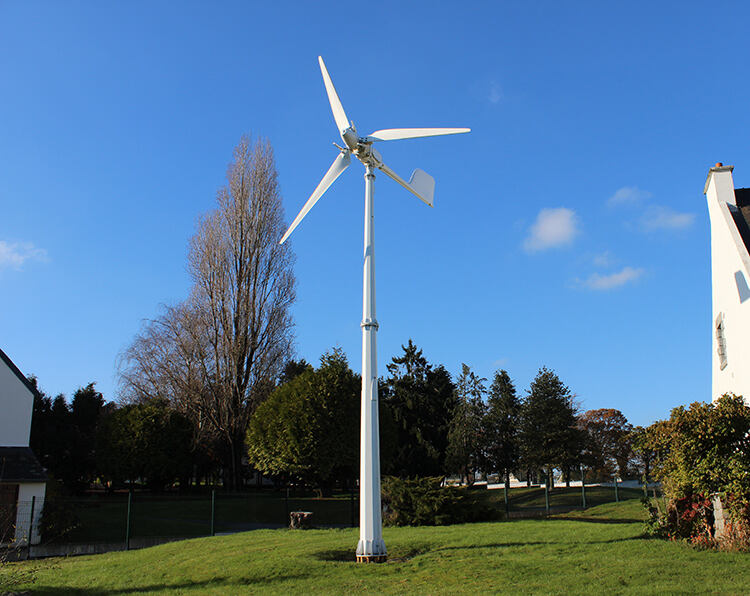

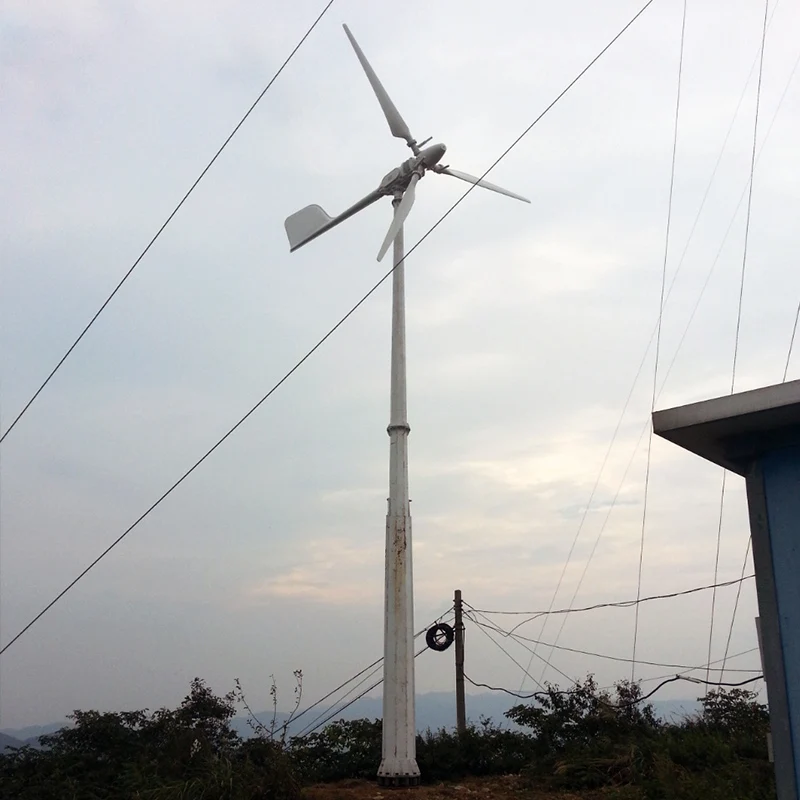

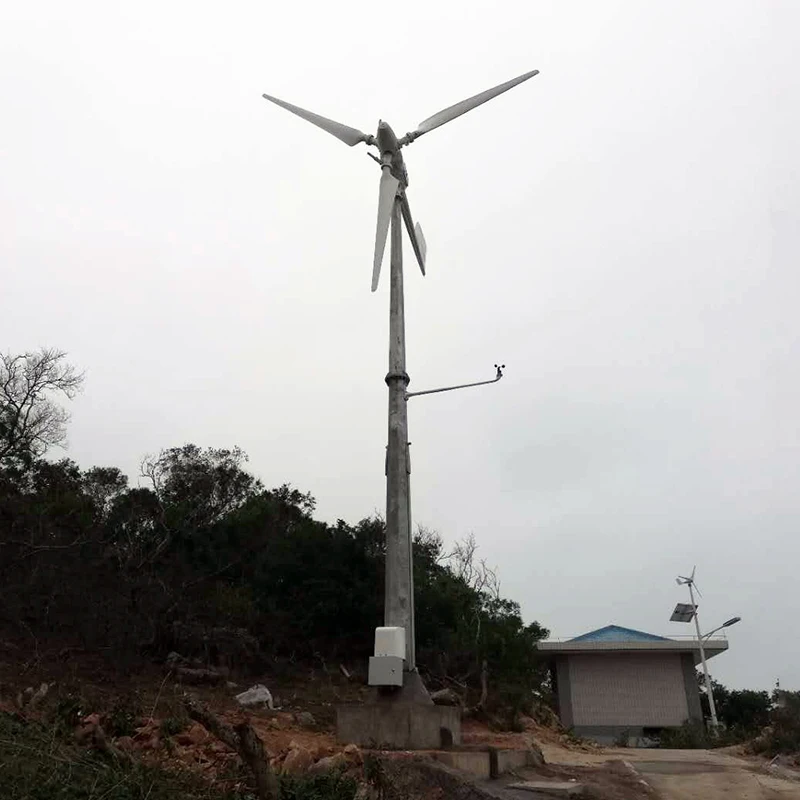

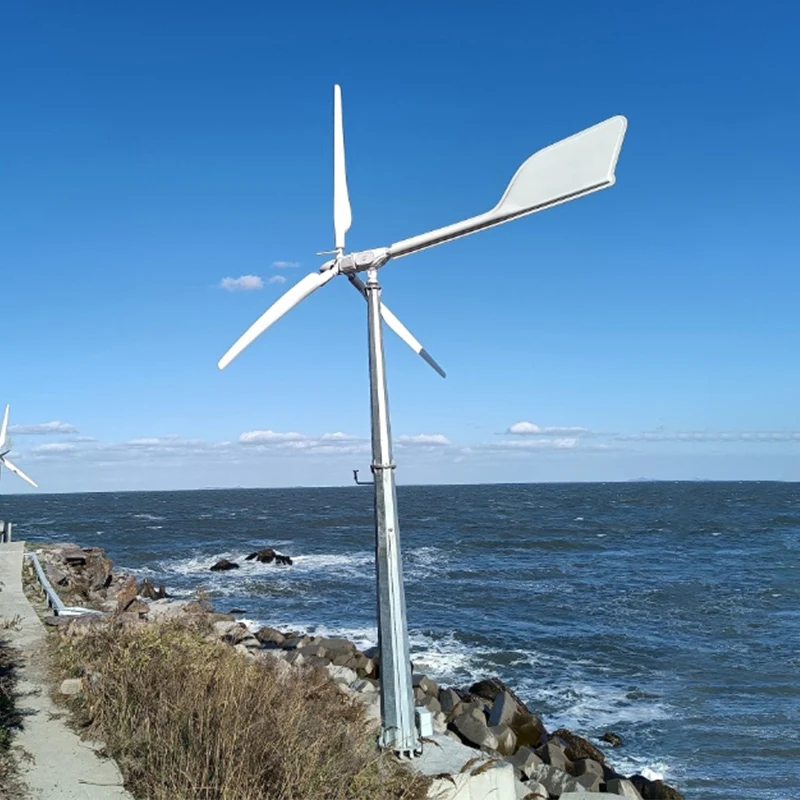

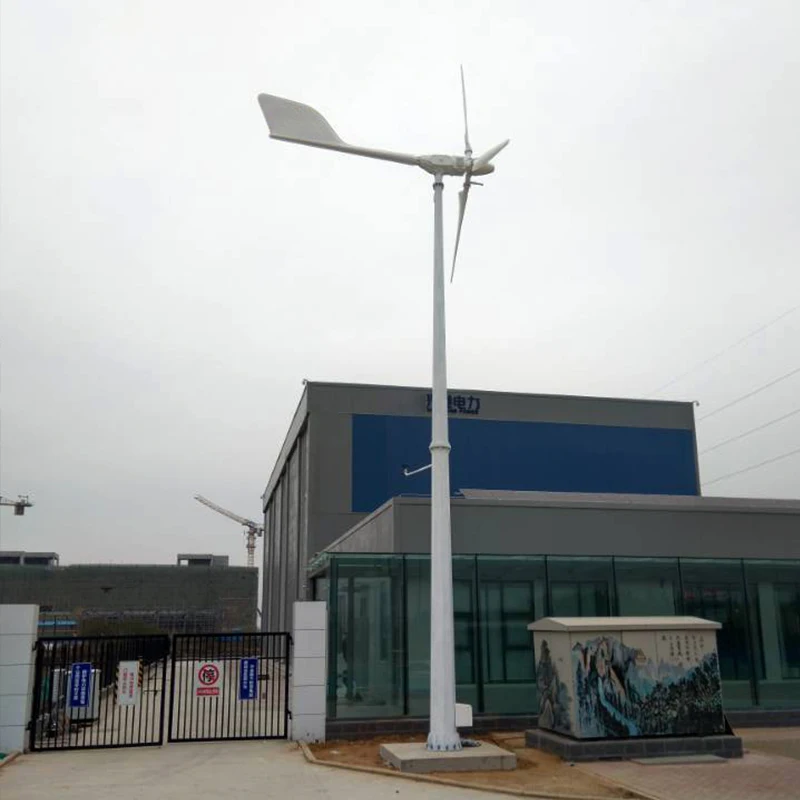

Project Cases

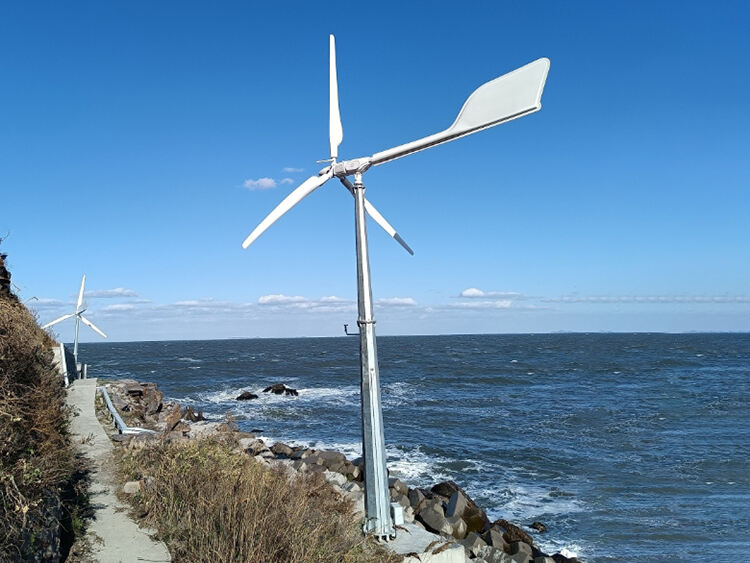

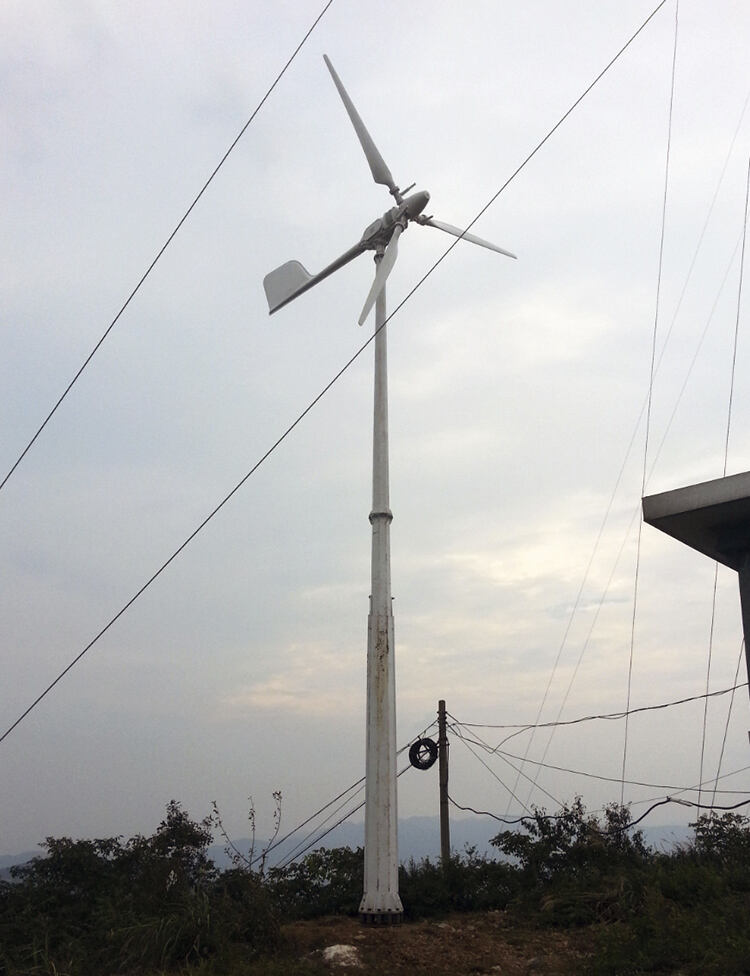

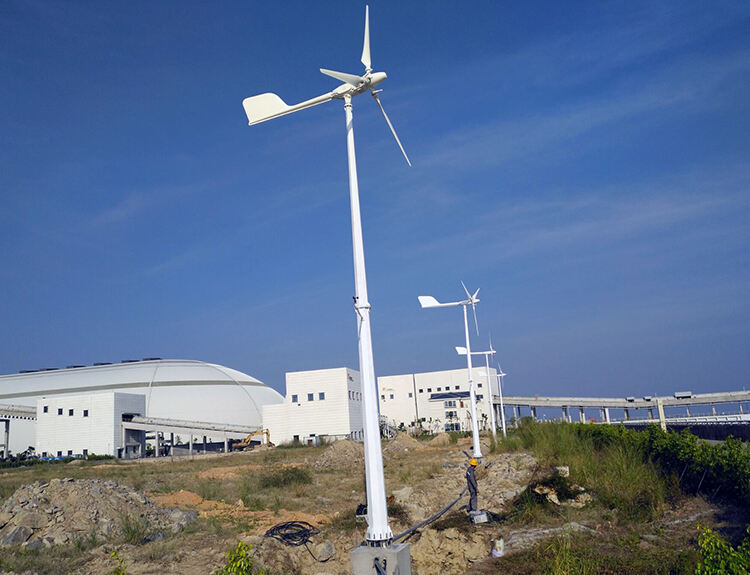

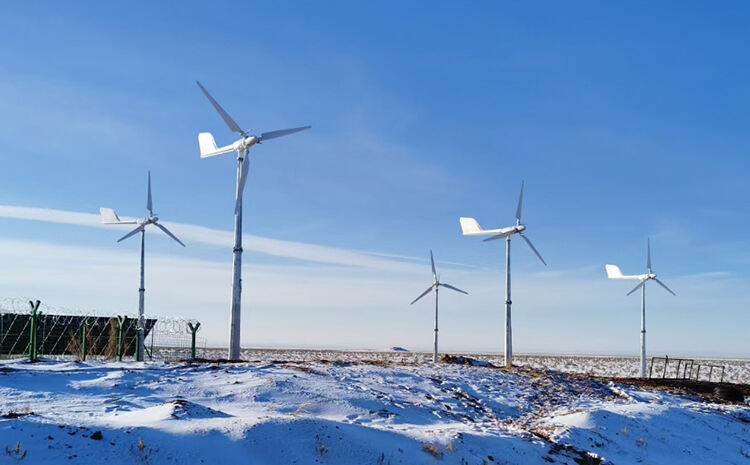

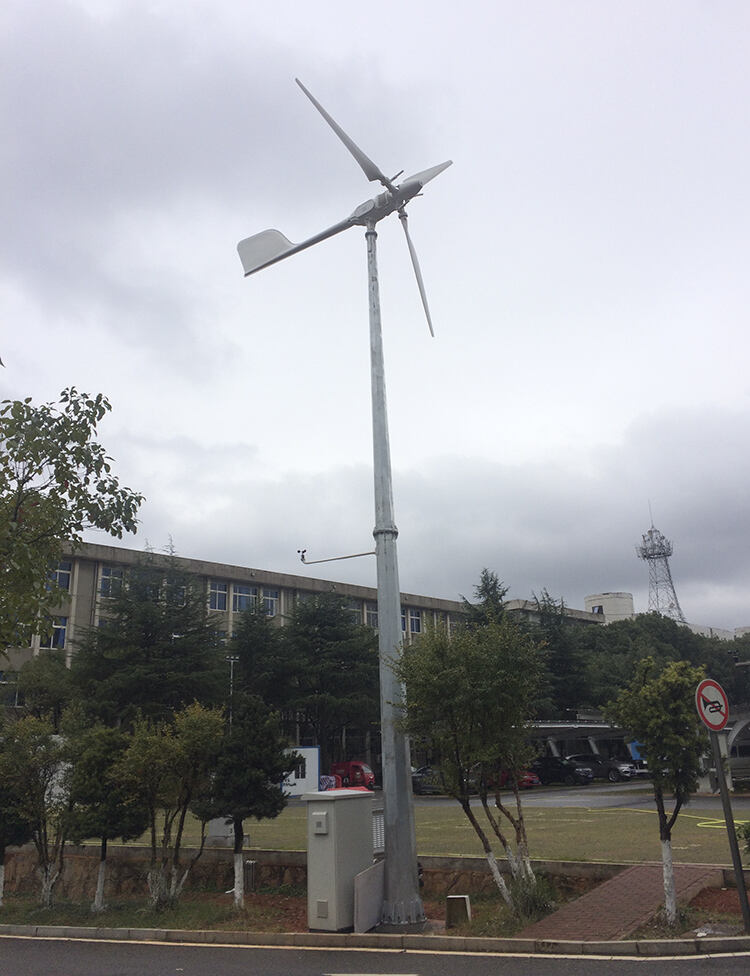

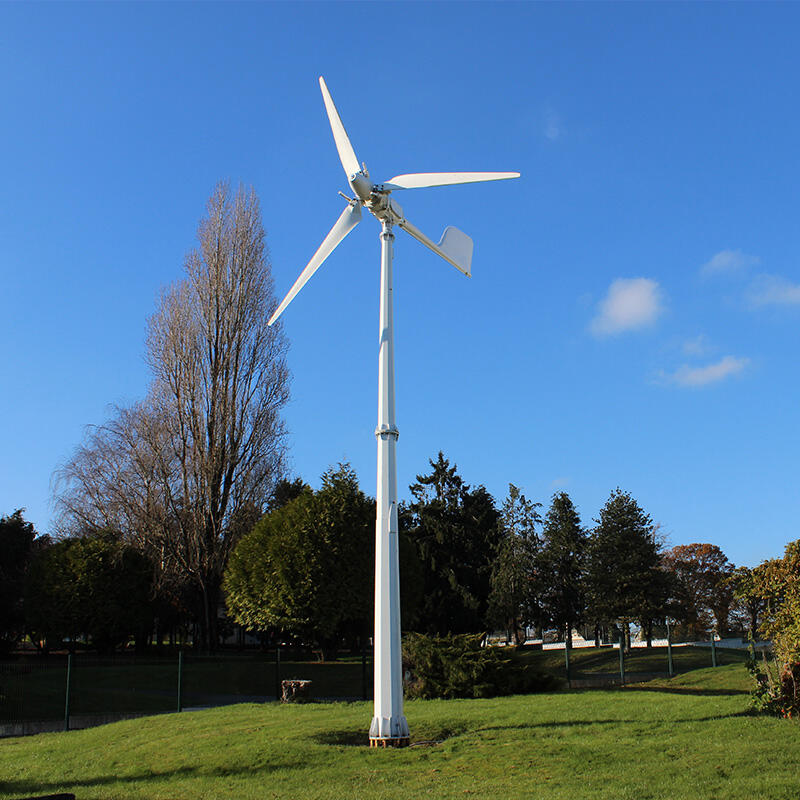

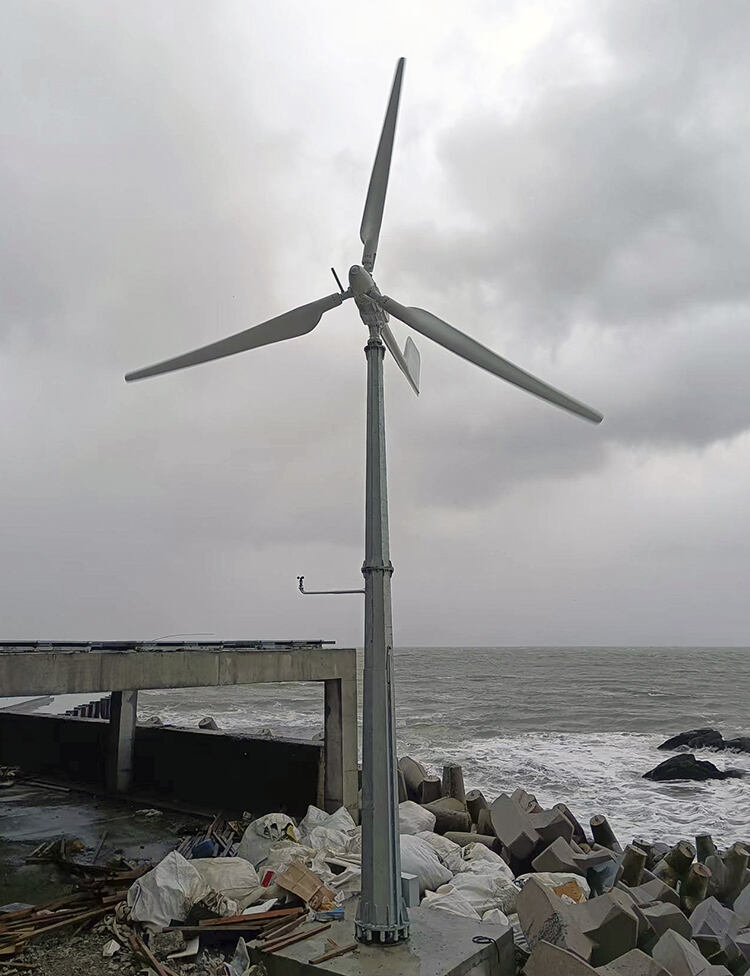

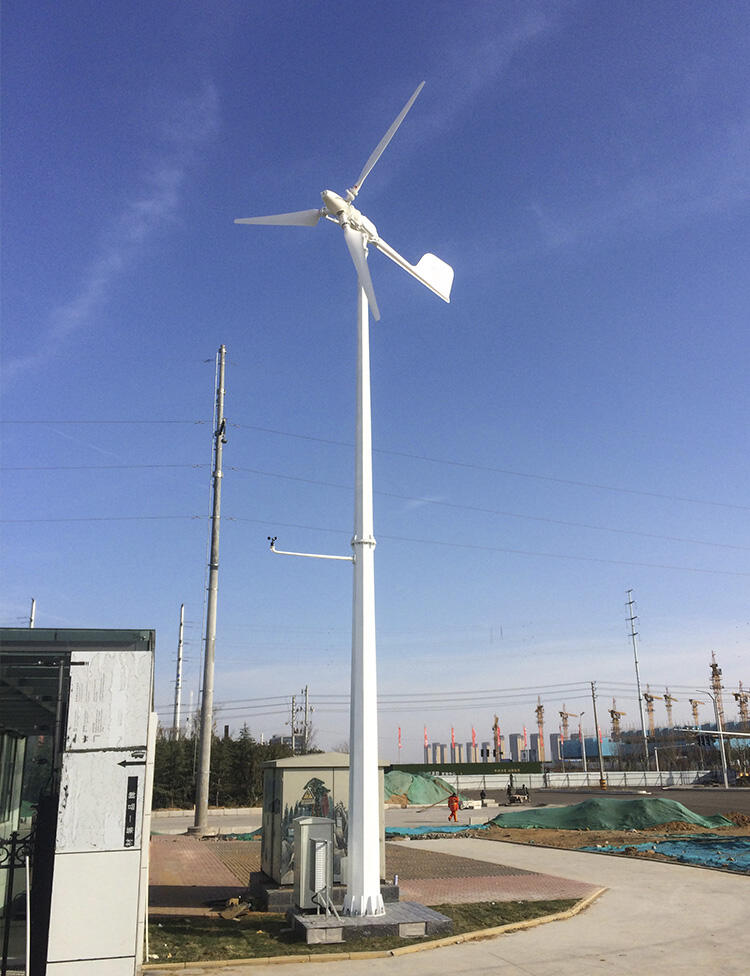

Project Case Display

Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photo-electric water heater and heating furnace, solar energy storage system, portable power station, etc. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions

Company Profile

Jiangsu DHC environmental SI-Tech Co., Ltd

Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials

Packing & Delivery

Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided

Business Card

Do you need solutions for pitch controlled wind turbine

Just send inquiry and express your requirement, DHC technical engineer always at your service
